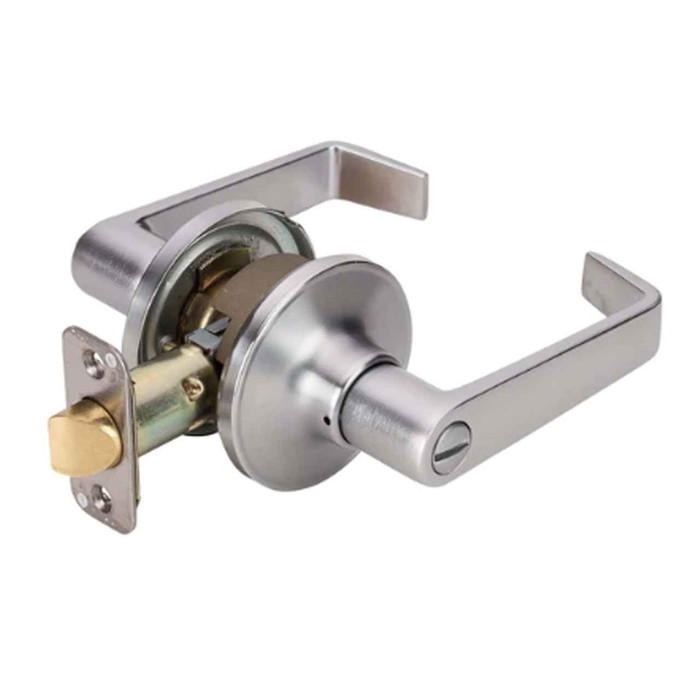

Delaney E Series - CT Style Privacy Door Leverset
Product Technologies:
Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:
- Independent Torsion Spring
- Removable Through Bolts
- Concealed Mounting Screws
- Anti-Friction Latch Retractor
- Clutch Function Panic Proof - Push/Turn
- Panic Proof - Push/Turn
Specifications:
Backset: 2-3/4” UL Latch standard, 2-3/8” optional
Door Thickness: 1-3/8” ~ 2”. Adjustable mounting plate
Strikes: 4-7/8” ANSI Strike standard (9109)
Door Prep:
- Cross bore: 2-1/8”
- Edge bore: 1”
- Latch face: 2-3/4”: 1-1/8” x 2-1/4”, 2-3/8”: 1” x 2-1/4”
- Dummies are surface mounted
Latches:
- Entrance: 2-3/4” (E9070T) standard. 2-3/8” (E9060T) optional
- Pass/Priv: 2-3/4” (E9073T) standard. 2-3/8” (E9063T) optional
- Faceplate: 2-3/4”: 1-1/8” x 2-1/4”. 2-3/8”: 1” x 2-1/4” Sq. Corner
- Bolt: 1/2” Stainless Steel throw. Meets 3-Hr. Fire Rating
ANSI & Federal Standards:
- Meets & exceeds requirements of BHMA/ANSI A156.2 Series 4000, GR2, 400,000 Cycles.
- Meets FF-H-106C Federal Standard.
Manufacturer Resources
Product Specs
- Subcategory:
- Bored Locksets
- Series:
- E Series
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Commercial
- Lock Function:
- Privacy
- Product Type:
- Leverset
- Grade:
- Grade 2
- Product Attribute:
- Cylindrical Locks
- Product Function:
- Privacy/Bed/Bath
- Product Finish:
- US26D Dull Chrome
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Delaney Hardware 3V5022 – Frequently Asked Questions
1) Will the Delaney E Series CT privacy leverset fit a 2 inch thick door?
Yes. The E Series CT privacy lever mounts on doors from 1-3/8 inches up to 2 inches thanks to an adjustable mounting plate, so it covers standard 1-3/4 inch commercial doors as well as older 1-3/8 inch interior doors and thicker slabs. That range is wider than a lot of privacy levers, including the Cal-Royal INDLEV-20 indicator lever, which adjusts 1-3/8 to 1-3/4 inches only.
2) Which backset do I order for a Delaney E Series privacy lever, and what latch comes with it?
Backset is a required choice at order time: 2-3/4 inches or 2-3/8 inches. The 2-3/4 inch option ships with the E9073T privacy latch and a 1-1/8 x 2-1/4 inch faceplate; the 2-3/8 inch option uses the E9063T latch with a 1 x 2-1/4 inch square corner faceplate. Measure from the door edge to the center of the 2-1/8 inch cross bore to tell which prep you have. Commercial doors are usually 2-3/4, residential-style prep 2-3/8.
3) What door prep does this Delaney cylindrical lever need?
Standard cylindrical prep: 2-1/8 inch cross bore through the face and a 1 inch edge bore. Latch face mortise is 1-1/8 x 2-1/4 inches on the 2-3/4 inch backset, 1 x 2-1/4 inches on the 2-3/8 inch. Strike prep is for a 4-7/8 inch ANSI strike (9109), which is what ships as standard.
4) Will this lever latch into the strike already in my frame?
The latch has a 1/2 inch stainless steel throw and comes with a 4-7/8 inch ANSI strike (9109). If your frame is prepped for a 4-7/8 inch ANSI strike, which most hollow metal commercial frames are, it drops straight in. If you have a small T-strike or a residential full-lip strike in a wood jamb, you will be filling or re-mortising the jamb to take the ANSI plate.
5) Is the Delaney E Series tough enough for a commercial restroom or dorm?
It is a commercial lever, Grade 2, meeting and exceeding BHMA/ANSI A156.2 Series 4000 GR2 at 400,000 cycles, and it also meets the FF-H-106C federal standard for government work. For heavy-traffic public restrooms in a school or stadium a Grade 1 lever is the usual call, but for dorm rooms, patient rooms, hotel baths and multi-family bedrooms Grade 2 at 400,000 cycles is the normal specification.
6) How does this privacy lever unlock from the outside in an emergency?
There is a thumbturn or push button on the inside for the occupant, and a small pin hole on the outside trim that staff can release with an emergency key or a straightened pin. The lever is also panic proof with a clutch push/turn action, so rotating the outside lever against the lock will not break the spindle, and the inside lever always retracts the latch for free egress.
7) What is the closest alternative to the Delaney E Series 3V5022 privacy leverset if the restroom needs a visible occupied indicator?
The Delaney E Series CT style 3V5022 is a Grade 2 privacy cylindrical leverset with a standard interior turn button and an emergency pin hole on the outside, so there is no visual occupancy signal. Where a restroom or a single-occupancy room needs one, the Cal-Royal INDLEV-20 is a privacy indicator leverset with a red/green occupancy indicator, and like the Delaney it is offered for both 2-3/8 inch and 2-3/4 inch backsets, so the existing door prep carries over.
8) Is the Cal-Royal INDLEV-20 a direct substitute for the Delaney 3V5022 on a spec calling for ANSI Grade 2?
Not on the grade line. The Delaney E Series 3V5022 is stated as Grade 2 and is built to meet and exceed BHMA/ANSI A156.2 Series 4000 Grade 2 at 400,000 cycles, plus the FF-H-106C federal standard. The Cal-Royal INDLEV-20 is described as standard duty commercial grade rather than to an A156.2 Grade 2 cycle figure, so it answers the indicator requirement rather than a written Grade 2 cycle spec.
9) Is this privacy lever rated for a fire door?
The latch bolt is stated to meet a 3-hour fire rating. Bear in mind a privacy function is a bed and bath lock, so it belongs on patient rooms, restrooms and dorm rooms rather than on stairwell or corridor fire doors that need a latching passage or entry function. Where local code allows privacy hardware on a rated opening, the latch is rated for it.
10) Is there a privacy lever that shows whether the room is occupied instead of this one?
For restrooms where people want to see occupancy from the corridor, the Cal-Royal INDLEV-20 is a privacy indicator leverset with a red/green occupancy indicator, adjustable for 1-3/8 to 1-3/4 inch doors and available in 2-3/8 and 2-3/4 inch backsets. The Delaney E Series CT privacy lever has no indicator, just the inside lock and the outside emergency pin hole, and it takes doors up to 2 inches thick.
11) Do I have to worry about handing when I order this Delaney lever?
No. It is a bored cylindrical leverset, so it is non-handed in the box and the lever can be set for left or right hand swing during installation. You only need to settle backset, and the mounting plate covers the door thickness from 1-3/8 to 2 inches.
12) Both of these are privacy levers - what actually differs in how the door gets unlocked from outside?
The Delaney E Series CT privacy leverset locks with the interior mechanism and is released from the exterior through a small pin hole, and it carries a clutch, panic-proof push/turn action so the outside lever spins free when locked. The Cal-Royal INDLEV-20 is a privacy lever whose difference is the red/green occupancy indicator visible on the outside face, which tells staff the room status before they approach the door.
13) What finish is this Delaney lever and will it match my other satin chrome hardware?
Finish is US26D dull chrome, the satin chrome finish, which is the standard match for the satin chrome and satin stainless hardware found across most commercial interiors. If your other doors carry US32D satin stainless closers and hinges it reads as a close visual match, though it is not the same finish code.
14) Does this lever mount with exposed screws on the face of the door?
No exposed fasteners. Mounting screws are concealed behind the rose, and the through bolts are removable. It also uses an independent torsion spring to keep the lever from sagging over time and an anti-friction latch retractor for smoother operation on doors that have settled slightly against the strike.
