Delaney F9000 Series - Grade 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$599.00
$526.59
Delaney Hardware Delaney F9000 Series - Grade 1 Fire Rated Heavy Duty Rim Type Device for 48” Door, Stainless Steel Finish DLY-693302

Delaney F9000 Series - Grade 1 Fire Rated Heavy Duty Rim Type Device for 48" Door, Stainless Steel Finish

(No reviews yet) Write a Review

Model: 693302

In Stock (leaves warehouse same day if ordered before 3pm ET)

$599.00
$526.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

9000 Series Heavy Duty Rim Type Device for 36” Door with Alarm Kit “C” Cylinder

Specifications:

  • Applications: Offices, Schools, Hospitals, Apartments, Hotel/Motels & other Public Buildings
  • Door Thickness: 1-3/4” ~ 2” standard, 2-1/4” optional
  • Door Size: 33” to 36”. Bar can be easily field cut to size
  • Stile Width
    • Rim: 4-1/2” minimum stile width required
    • Vertical Rod: 3-1/2” minimum stile width required
  • Chasis, End Cap & Rail Assembly: Painted Steel (Alum & Duro) or Stainless Steel (US32D)
  • UL Listed: Complies with UL 305 standards. Listed for safety as Panic Hardware
  • Rating: ANSI 156.3 Grade 1
  • Door Prep: Will cover stock hollow metal doors with 161 cutout
  • Mounting: Furnished standard with wood & machine screws. Sex nuts and bolts (1346) optional
  • Latchbolt: Zinc with 3/4” throw
  • Latchbolt Spring: Stainless Steel throughout
  • Strike
    • #8070 Steel Roller Strike — 2-3/4” or 2-3/8” Backset
    • 4-7/8” Blank Strike & 161 Edge Filler
  • Cover: Zinc Alloy.
  • Handing: Non-Handed

Manufacturer Resources

Product Specs

Subcategory:
Rim Exit Devices
Series:
F9000 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Rim Exit Devices
Commercial/Residential:
Commercial
Product Type:
Rim Exit Devices
Grade:
Grade 1
Wood Door Compatible:
No
Product Size:
48"
Fire Rating:
Yes
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Delaney Hardware 693302 – Frequently Asked Questions

1) Will the Delaney F9000 rim exit device fit a 1-3/4 inch hollow metal door?
Yes. The F9000 rim device is built for 1-3/4 inch to 2 inch doors as standard, with a 2-1/4 inch thickness available as an option. It is a metal-door device, not rated for wood doors, and it covers a stock hollow metal door with the standard 161 cutout, so an existing cylindrical lock prep gets hidden rather than needing a filler plate everywhere.
2) My door stile is only 3-1/2 inches wide. Can I use this Delaney rim exit device?
No. A rim device in the F9000 family needs a minimum 4-1/2 inch stile. At 3-1/2 inches you are into vertical rod territory, which is the configuration Delaney lists for that stile width. Measure the flat face of the lock stile before ordering; a narrow aluminum storefront stile will not take this chassis.
3) This Delaney device is listed for a 48 inch door. Can the bar be cut down for a narrower opening?
The 48 inch F9000 covers wider openings, and the push bar is designed to be field cut to size, so it can be trimmed down rather than exchanged. Delaney's smaller version of the same device covers 33 to 36 inch doors, so pick the size band closest above your actual door width and cut from there.
4) Is this Delaney exit device fire rated and can it go on a fire door?
Yes, the F9000 is fire rated and carries a Grade 1 rating to ANSI 156.3. It is also UL Listed to UL 305 as panic hardware. That combination is what lets it serve both an egress opening and a labeled fire door assembly, which is why it shows up on school, hospital, and apartment corridor doors.
5) Will this exit device latch into the strike already on my frame?
The latchbolt is zinc with a 3/4 inch throw and it works with Delaney's #8070 steel roller strike, which is furnished for either a 2-3/4 inch or a 2-3/8 inch backset. Those are the two standard commercial backsets, so an existing frame prep usually matches one of them. A 4-7/8 inch blank strike and a 161 edge filler are also part of the strike offering if you are covering an old cylindrical lock prep in the frame.
6) I need dogging on my exit device - does the Delaney F9000 do that, or should I look at something else?
The Delaney F9000 rim device is specified as a Grade 1 fire rated panic device with a zinc 3/4 inch throw latchbolt and roller strike, and fire rated openings generally cannot use mechanical dogging. If you want a dogging feature on a non rated opening, the Accentra 6100ED is a Grade 1 rim exit device with a wide stile pushpad and hex key dogging, and the Stanley QED111ED is a Grade 1 heavy duty rim device with hex dog and electrified dogging.
7) I have a 48 inch opening - which rim exit devices cover that width?
The Delaney F9000 rim device is offered sized for a 48 inch door, and the bar can be field cut to size. The Accentra rim devices in the same Grade 1 class - the 1800 Series, 2100 Series and 6200 Series - are catalogued at 36 inches, so for a 48 inch leaf the F9000 is the direct fit.
8) Do I need to order a left hand or right hand version of this Delaney panic bar?
No handing to specify. The F9000 rim device is non-handed, so one part number covers both swings. That is useful for a property manager stocking spares across a building with doors swinging both ways.
9) What mounting hardware comes with the Delaney F9000, and do I need sex bolts?
Wood and machine screws are furnished as standard. Sex nuts and bolts, Delaney's 1346 option, are ordered separately. On a fire rated opening or a high-abuse door where you want through-bolting rather than relying on the door skin, add the 1346 sex bolts to the order.

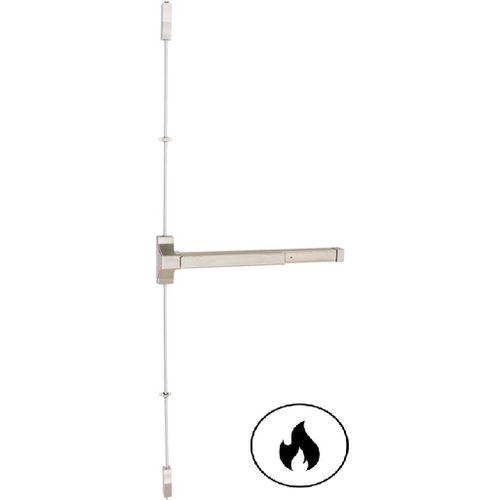

10) Should I use a rim exit device or a vertical rod device on my opening?
A rim device like the F9000 latches into a strike on the frame at the lock edge, so it suits a single door or a pair with a mullion, and it needs at least a 4-1/2 inch stile. Vertical rod is the answer when the stile is narrow (down to 3-1/2 inches in this family) or when you have a pair of doors with no center mullion and need to latch at the head and sill instead. Rim is the simpler install and the easier one to service.
11) What are the alternatives to the Delaney F9000 rim exit device if I don't need a fire rating?
For an exit-only opening with no fire label, the Accentra 1800 Series and 2100 Series are both Grade 1 wide stile rim devices and neither is fire rated. The Accentra 6200 Series is a narrow stile pushpad rim device with a Pullman latch, which is the one to look at if your stile is too slim for a wide stile chassis. All three are metal-door devices like the Delaney. If you need the fire label, stay with the F9000.
12) Delaney F9000 rim device versus Accentra 2100 Series - what is the difference?
The Delaney F9000 is a Grade 1 heavy duty rim device that is fire rated, non-handed, with a 3/4 inch throw zinc latchbolt and a 4-1/2 inch minimum stile requirement in rim application. The Accentra 2100 Series 36 inch Grade 1 rim exit device is built for wide stile doors and is an exit only, non fire rated device. If the opening is labeled, the F9000 covers it; if you only need egress on a non rated wide stile door, the 2100 is written for that.
13) Is the Stanley QED111ED a substitute for the Delaney F9000 rim device?
Both are Grade 1 heavy duty rim devices, so they land in the same class. The difference is what the device does at the outside of the door: the Stanley QED111ED is catalogued with an office/privacy/apartment function and electrified dogging, while the Delaney F9000 is a fire rated device furnished with a #8070 steel roller strike in 2-3/4 or 2-3/8 inch backset and a 4-7/8 inch blank strike with 161 edge filler. Confirm the opening's label and the outside trim function before swapping one for the other.
14) Can any of these rim exit devices go on a wood door?
No. The Delaney F9000 rim device is specified for metal doors and will cover a stock hollow metal door with a 161 cutout; it is not wood door compatible. The Accentra 1800, 2100, 6100ED and 6200 Series rim devices are likewise not wood door compatible.
15) Is the stainless steel version of the Delaney F9000 worth it over the painted finish?
The chassis, end cap, and rail assembly are offered either in painted steel (Aluminum or Duronodic) or in stainless steel, which is the US32D option. Stainless holds up better on high-traffic and exterior-facing openings and in wet or cleaned-down environments like hospital and school corridors. The cover is zinc alloy either way, and the latchbolt spring is stainless throughout regardless of which finish you pick.
16) Can I standardize on the Delaney F9000 across an apartment building or school?
That is the intended use. Delaney lists the F9000 for offices, schools, hospitals, apartments, hotels and motels, and other public buildings, and the Grade 1 ANSI 156.3 rating is the heavy duty tier for that kind of traffic. Because the device is non-handed and the bar field cuts to size, one configuration covers a lot of openings, though you will still need to sort doors by stile width (4-1/2 inch minimum for rim) and by thickness.
