Delaney Hardware Delaney Olivia - Grade 3 Privacy Knobset DLY-102T-OL

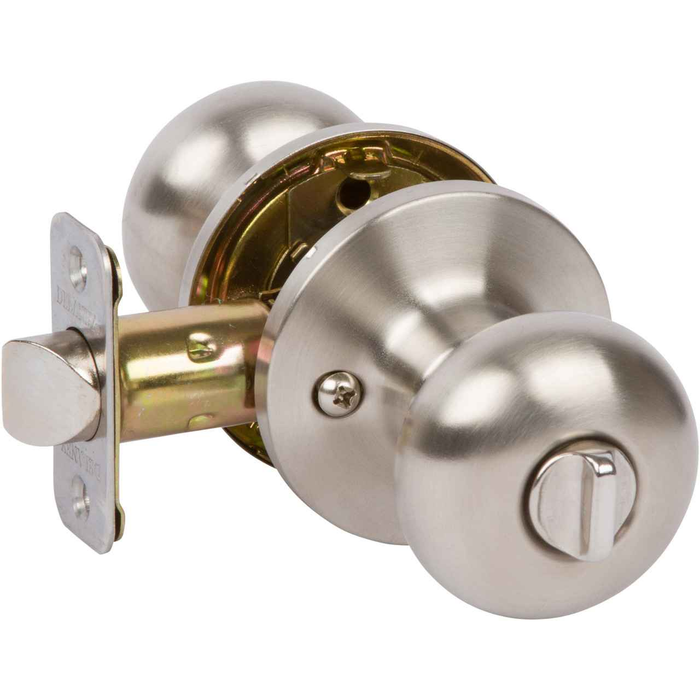

Delaney Olivia - Grade 3 Privacy Knobset

(No reviews yet) Write a Review

Model: D12422
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$27.50
$21.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delaney Olivia Non-Keyed Passage Door Knobset

privacy-functionPrivacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

  • Combination screws for wood or metal door mounting
  • Works well with both classic and functional décor



Specifications:

  • Backset: Fits 2-3/8" and 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Faceplate: 1" x 2.25" Round Corner
  • Door Thickness: Standard from 1-3/8" to 1-3/4"
  • Function: Privacy
  • Latch: 1/2" throw
  • Strike: 1-3/4" x 2-1/4" full lip round corner



Technical Specification Download

Manufacturer Resources

Product Specs

Subcategory:
Bored Locksets
Series:
Olivia
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Function:
Privacy
Product Type:
Knobsets
Grade:
Grade 3
Product Attribute:
Cylindrical Locks
Product Function:
Privacy/Bed/Bath
Product Category:
Mechanical Locks
Department:
Door Hardware

Delaney Hardware D12422 – Frequently Asked Questions

1) Will the Delaney Olivia privacy knobset fit my existing door prep without redrilling?
If the door is bored to the standard residential prep, yes. The Olivia privacy knob works with a 2-1/8 inch cross bore and a 1 inch edge bore, and the latch fits both 2-3/8 and 2-3/4 inch backsets, so you do not have to know which backset your door was drilled for before ordering. Door thickness range is 1-3/8 to 1-3/4 inches, which covers standard interior doors and most 1-3/4 inch slabs.
2) Will the Olivia latch drop into the strike that's already in my jamb?
The Olivia ships with a 1 inch by 2-1/4 inch round corner faceplate latch with a 1/2 inch throw, and a 1-3/4 inch by 2-1/4 inch full lip round corner strike. If your existing jamb has a square corner strike or a square faceplate mortise, you will need to recut the mortise or use the supplied round corner strike. Wood and metal door mounting screws are included.
3) What does the privacy function on this knobset actually do, and can you get in if someone locks themselves in?
Privacy function means the inside knob locks with a push or turn button for bedroom and bathroom doors. There is no key. The outside knob has a small pin hole so you can release the lock from the hallway side with a tool or a straightened wire. It does not lock from the outside, so it is not a door you would use on an exterior opening.
4) Is a Grade 3 knobset good enough for an apartment turnover, or do I need Grade 2?
The Olivia is Grade 3 and classed as residential, which suits single family homes, condos and interior bedroom and bath doors in low traffic units. For multi-family corridors or anything seeing heavy daily use, step up: the Dexter C2000 privacy ball knob is Grade 2 on the same 1-3/8 to 1-3/4 inch door range, and the Cal-Royal BER20 is another Grade 3 privacy option if you want to stay at that level with brass trim.
5) Will this work on a 2 inch thick solid door?
No. The Olivia privacy knobset is built for 1-3/8 to 1-3/4 inch doors. For a thicker slab, look at a knob rated past that range, such as the Deltana 6112 St. Thomas privacy knob, which covers 1-3/8 to 2 inches.
6) What is the closest equivalent to the Delaney Olivia privacy knobset from another brand?
For a like-for-like Grade 3 privacy knob, the Pamex FTF Baron knob lockset in privacy function and the Cal-Royal BER20 are the nearest matches. Both are Grade 3, both are privacy/bed/bath function, and both list a 1-3/8 inch to 1-3/4 inch door thickness range, the same range the Olivia covers. The Cal-Royal BER20 comes with brass trim, while the Pamex Baron carries its own knob design, so the decision between them is trim style rather than function or door prep.
7) I need a heavier duty privacy knob than a Grade 3 for a bathroom in a commercial building - what should I use instead?
The Delaney Olivia is a Grade 3 knobset designated for residential use, so for a commercial restroom the Dexter C2000 Series privacy ball knob is the step up: it is Grade 2, privacy/bed/bath function, non-keyed, and fits 1-3/8 inch to 1-3/4 inch doors, the same thickness range. It uses a non-clutching ball knob rather than a decorative knob shape.
8) Can I use the Delaney Olivia privacy knobset on an exterior or entry door?
No. The Olivia is a privacy/bed/bath knobset with no key cylinder, so it cannot secure an exterior opening. For a keyed entry knob in the same Grade 3 class, the Cal-Royal BER00 entrance/office knob with Kwikset keyway and the Kwikset 400P-CP keyed entry knob are both Grade 3 and both fit 1-3/8 inch to 1-3/4 inch doors. Master Lock's BC Series biscuit knob is another Grade 3 keyed entry option.
9) Are dummy knobs like the Bravura Biloxi a substitute for the Olivia privacy knobset?
No, and this is a common mix-up. The Olivia is a working privacy lockset with a 1/2 inch throw latch and a 1-3/4 inch by 2-1/4 inch full lip round corner strike, so it latches the door and locks from inside. Dummy trim such as the Bravura Biloxi, the Schlage A170 single dummy, or the BEST 6K single dummy trim has no latch and no locking mechanism at all - it is surface-mounted pull trim for an inactive leaf. Ordering dummy trim for a bathroom door leaves you with a door that will not latch.
10) What privacy knob should I specify for a thicker door than 1-3/4 inches?
The Delaney Olivia covers standard doors from 1-3/8 inch to 1-3/4 inch. If the opening is thicker, the Deltana 6112 St. Thomas privacy knob is the alternative in the privacy/bed/bath function, with a listed door thickness range of 1-3/8 inch to 2 inch. It is a solid-brass decorative knob rather than a Grade 3 cylindrical set, so verify the cross bore and backset against your existing prep.
11) My spec calls for a fire-rated knob lock. Does the Olivia work, or do I need something else?
The Delaney Olivia is a Grade 3 residential privacy knobset. Where a fire rating is called out on the drawing, the Falcon W101 Grade 2 medium duty cylindrical knob lock and the Falcon X101 Grade 1 heavy duty knobset both carry a fire rating; the X101 also covers doors from 1-3/8 inch to 2-1/4 inch. Both are passage/closet function, so pair them with the appropriate function for the opening being rated.
12) Can I use this Olivia knobset on a hall or closet door instead of a bedroom?
Not as-is. This is the privacy version, so it has a locking button inside, which you do not want on a closet where someone could lock it shut. For hall and closet openings use a passage function knob instead. Comparable non-keyed passage knobsets include the Pamex FTF passage (Grade 3, 1-3/8 to 1-3/4 inch doors) and the Bravura Albany or Lynchburg passage knobsets in Grade 2.
13) I need a keyed knob to match this Olivia on the same house. What pairs with it?
The Olivia is non-keyed privacy only, so a keyed entry knob has to come from elsewhere. Callan makes the Canova and Santo Grade 3 entrance knobsets, Pamex the FTF Baron entrance/office Grade 3, and Cal-Royal the BER00 entrance/office Grade 3 with a Kwikset keyway if you want it keyed alike to existing Kwikset cylinders. Finishes will not match the Olivia exactly across brands, so plan the look accordingly.
14) Can I install the Olivia knobset on a hollow metal door?
Yes. It ships with combination screws that work for either wood or metal door mounting, so the same carton covers a wood bedroom door and a steel-faced slab, provided the prep is the standard 2-1/8 inch cross bore with a 1 inch edge bore.
15) I ordered the Olivia privacy knob but the door is a hall closet that does not need to lock. What is the right part?
Privacy function on the Olivia means an interior locking button with an emergency pin hole on the outside, which is more than a closet needs. For non-locking hall and closet doors, the Pamex FTF Baron knob lockset in passage function is the direct Grade 3 counterpart, also rated for 1-3/8 inch to 1-3/4 inch doors. Bravura also offers Grade 2 passage knobsets in the Albany and Lynchburg round-trim designs.
16) For a multifamily turn where I am replacing both the bedroom and the entry knob, is there a matched set instead of buying the Olivia separately?
The Olivia privacy knobset is sold as a privacy function on its own, in US32D Stainless Steel, US12P Tuscany Bronze and US19 Black. If you want one box covering more than one function, the Schlage Residential F500 Plymouth with Georgian knob is a combo pack with adjustable backsets and dual strikes, fitting 1-3/8 inch to 1-3/4 inch doors. Sure-Loc also offers the Bergen round knob in a 6-pack with adjustable backset for standardizing a whole unit.
17) Is the Baldwin 5077 Bethpage privacy knob interchangeable with the Delaney Olivia?
Both are privacy/bed/bath knobs, so the function on the door is the same. The difference is the trim platform: the Baldwin Estate 5077 Bethpage uses an R027 rose and the Baldwin 5000 Baltimore privacy knob is preconfigured with a 5148 rose, a 2-3/8 inch backset and a full lip strike. The Delaney Olivia fits both 2-3/8 inch and 2-3/4 inch backsets, so it is the more flexible choice when the existing bore is 2-3/4 inch.
18) What finishes does the Delaney Olivia privacy knob come in?
Three: US32D Stainless Steel, US12P Tuscany Bronze, and US19 Black. If you are matching other openings in a unit, US32D reads as the brushed stainless look, US12P as an oil-rubbed style bronze, and US19 as flat black.
