Delaney Hardware Delaney Voncet - Grade 2 Privacy Leverset, Satin Nickel (US15) DLY-322420

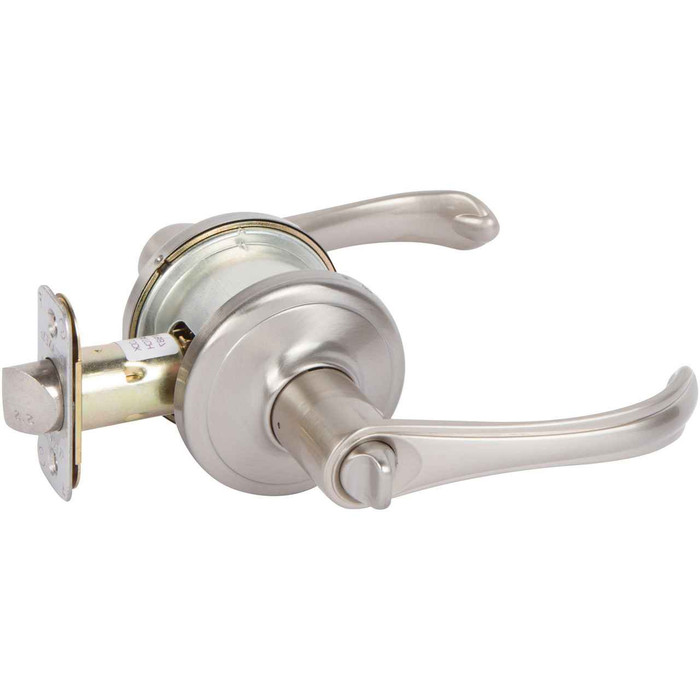

Delaney Voncet - Grade 2 Privacy Leverset, Satin Nickel (US15)

(No reviews yet) Write a Review

Model: 322420

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.75
$39.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delaney Voncet Privacy Door Leverset

The Voncet lever is a Grade 2 security residential lockset, made to last. The features include a 6-way latch and concealed screw plates, so screws are not visible. The Voncet lever is a traditional style lever designed for multiple interior design styles.

Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

  • Grade 2 security
  • Concealed screw
  • Panic proof
  • UL rated
  • Easy installation
  • Both Wood and metal screws included

Technical Specification Download

Manufacturer Resources

Product Specs

Subcategory:
Bored Locksets
Series:
Voncet
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Function:
Privacy
Product Type:
Leverset
Grade:
Grade 2
Product Attribute:
Cylindrical Locks
Product Function:
Privacy/Bed/Bath
Product Finish:
US15 Satin Nickel
Product Category:
Mechanical Locks
Department:
Door Hardware

Delaney Hardware 322420 – Frequently Asked Questions

1) Is the Delaney Voncet privacy leverset right for a bedroom or bathroom door?
That's exactly what it's built for. The Voncet is a privacy function lockset: it locks from the inside only, with no key on either side, and the outside face carries a small pin hole so the door can be released from the corridor side in an emergency. Bedroom and bath doors are the intended openings. If you need a keyed opening (an entry door, a closet you want locked from outside, a mechanical room), privacy function is the wrong function and you want a keyed entry or storeroom lever instead.
2) Is the Delaney Voncet lever rated for commercial use or is it a residential lock?
Residential. The Voncet is a Grade 2 residential lockset, and Delaney classifies it as residential duty. Grade 2 is the middle ANSI/BHMA tier, so it holds up well in a home, an apartment unit, or light multi-family interior doors. For a school, hospital, or office corridor where the spec calls out commercial Grade 2 or Grade 1, this is not the lever to submit.
3) Do I need to know the handing before ordering a Voncet lever?
No handing to specify. The Voncet uses a 6-way latch, which means the latch is adjustable in the field, so one lockset covers left and right hand doors either swing. That also matters for a property manager buying a case of them: you order the same part for every interior door in the building and sort the handing at the door.
4) How is the Voncet privacy lever different from the Cal-Royal INDLEV-20 indicator lever?
Two different jobs. The Voncet is a Grade 2 residential privacy lever in satin nickel with a plain outside rose and a pin hole release. The Cal-Royal INDLEV-20 is a commercial standard duty privacy lever with a red/green occupancy indicator on the outside, so anyone in the hallway can see at a glance whether the room is in use, and it is listed with 2-3/8 and 2-3/4 inch backsets and an adjustable 1-3/8 to 1-3/4 inch door thickness range. Pick the Cal-Royal for a shared restroom, a clinic exam room, or any door where occupancy needs to read from outside. Pick the Voncet for bedroom and bath doors in a residence or apartment unit.
5) What privacy lever should be used on a single-occupancy restroom that needs a visible vacant/occupied indicator instead of a plain privacy lock?
The Delaney Voncet is a Grade 2 privacy leverset with the standard privacy arrangement - an interior locking mechanism with a small pin hole on the exterior for emergency release - and no occupancy display. When the door needs to tell someone at a distance whether the room is in use, the Cal-Royal INDLEV-20 is the privacy indicator leverset built for that job, with a red/green occupancy indicator. That is the deciding difference for public and shared restrooms, changing rooms, and lactation or exam rooms where staff and visitors need to read the door before approaching it.
6) Is the Delaney Voncet privacy lever the right choice for a commercial building, or should a commercial-duty privacy lever be used?
The Voncet is classified for residential use and carries a Grade 2 rating, which suits apartment bedrooms and bathrooms, single-family interiors, and the residential side of multi-family work. For openings on the commercial side of a facility, the Cal-Royal INDLEV-20 privacy leverset is rated Standard Duty commercial. Property managers running mixed portfolios often standardize on the Voncet behind unit doors and specify a commercial-duty privacy lever for common-area and back-of-house restrooms.
7) What finish is the Delaney Voncet privacy lever, and will it match my other satin nickel hardware?
Satin nickel, US15. That is the standard brushed nickel finish code, so it lines up with US15 hinges, stops, and other levers already on the openings. Worth noting for anyone matching a fleet of doors: the Voncet has concealed screw plates, so there are no visible fasteners on the rose to break up the look against neighboring hardware.
8) What comes in the box with the Delaney Voncet leverset, and do I need to buy screws separately?
Both wood and metal screws are included, so the same box works whether you are hanging it on a wood door or a hollow metal one. The lever, latch, and strike hardware install as a set with no separate fastener pack to order. Delaney calls it out as an easy installation lockset, and the concealed screw plates go on after the mounting screws are driven.
9) What is a panic proof privacy lever and why does it matter on a bathroom door?
Panic proof means turning the inside lever releases the lock and opens the door in one motion, even while it is locked. Someone inside a bathroom does not have to find and turn the button first, they just pull the lever. The Voncet is listed as panic proof, which is the behavior you want on any door a child or an elderly resident might lock behind them.
10) I have a commercial building with a door thickness I need to confirm. Which privacy lever should I be looking at?
For a commercial opening where thickness is the open question, the Cal-Royal INDLEV-20 is the one with the range published: adjustable 1-3/8 to 1-3/4 inches, with 2-3/8 and 2-3/4 inch backsets, and it is a commercial standard duty lever. The Delaney Voncet is a residential Grade 2 lever, so on a commercial spec job it is the wrong starting point regardless of thickness.
11) Is the Delaney Voncet a cylindrical (bored) lock or a mortise lock?
Cylindrical. The Voncet is a bored lockset, so it goes into a standard bored door prep with a cross bore for the lever and an edge bore for the latch, rather than the deep rectangular pocket a mortise lock needs. If the door already has a bored prep from a knob or lever, this replaces it in kind. If you are looking at a door with a mortise pocket, you need a mortise privacy lock instead.
12) What privacy lever covers both a 2-3/8 inch and a 2-3/4 inch backset when the doors in a building are not consistent?
The Cal-Royal INDLEV-20 privacy leverset is specified for both 2-3/8 inch and 2-3/4 inch backsets, so a single part number covers an opening set where the bore-to-edge dimension varies door to door - a common situation in older buildings and in additions built at different times. It also lists an adjustable door thickness range of 1-3/8 inch to 1-3/4 inch. The Delaney Voncet is the Grade 2 privacy lever to reach for when the doors are consistent and no occupancy indicator is wanted.
13) Can a Cal-Royal INDLEV-20 be dropped in as a like-for-like replacement for a Delaney Voncet privacy lever?
They are not interchangeable in appearance even though both are privacy leversets. The INDLEV-20 carries a red/green occupancy indicator on the face, so swapping one into a run of Voncet levers puts a visibly different trim on that door. The Voncet is a traditional-style lever in Satin Nickel US15 with concealed screw plates, so no fasteners show on the rose. For a bedroom or bathroom door in a set already carrying Voncet levers, matching Voncet keeps the trim consistent; the INDLEV-20 is the deliberate choice when the indicator is wanted, not a silent equivalent.
14) Which Delaney model number do I order for the satin nickel Voncet privacy lever?
Model 322420 is the satin nickel (US15) Voncet privacy leverset. That single model number covers the whole assembly, lever, latch, and strike, in privacy function.
