Super Low Profile. Super Low Energy Consumption.

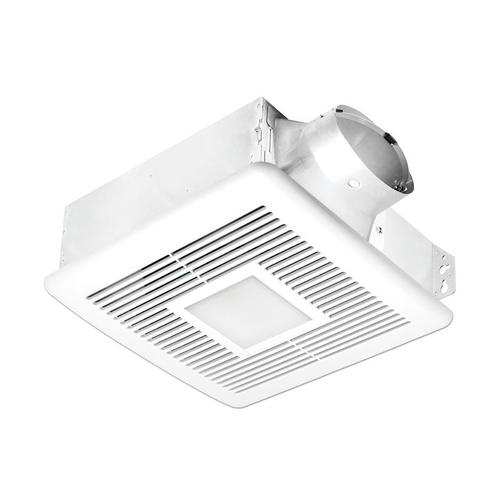

Delta BreezSlim SLM80-110DLED-C is suitable for ceiling or wall mount installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.3 sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
Features
- ENERGY STAR® qualified with innovative brushless DC motor technology
- UL approved for ceiling or wall mount installation, and it can fit in a 4" wall
- 4" Oval Duct
- SLM80-110DLED-C can fit with Ceiling Radiation Damper SMT-CRD2
- Perfectly quiet operation at 0.4 sones (80 CFM), 1.3 sones (110 CFM)
- Adjustable full speed 80 CFM or 110 CFM
- Allows fan to operate in full speed mode or continuous low speed mode by manual switch
- Energy efficiency at 8.8 CFM/Watt (80 CFM), 6.6 CFM/Watt (110 CFM)
- For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 50, 80 CFM)
- Delay time preset positions (0.5, 5, 15, 30, 45, or 60 min)
- 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
- Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements
- Green and amber LED indicator lights show continuous low speed and full speed modes
- Annual energy cost for 24/7 operation is approximately $8.94* (80 CFM) or $17.35* (110 CFM)
Manufacturer Resources
Product Specs
- Category:
- Ventilation Fans
- Subcategory:
- BreezSlim
- Fan Speed:
- Continuous Low Speed/Full Speed
- Static Pressure:
- 0.1 - 0.25
- Maximum CFM:
- 106
- Sones:
- 0.3 - 1.5
- Power:
- 24-Jun
- Current:
- 0.6 Max.
- Energy Star:
- Yes
- Warranty:
- 3 Year Limited
- Duct Size:
- 4"
- Duct Diameter:
- 4"
- Height:
- 4"
- Width:
- 13"
- Depth:
- 13"
- Voltage:
- 120/60
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Ventilation Fans
- Collection:
- BreezSlim
