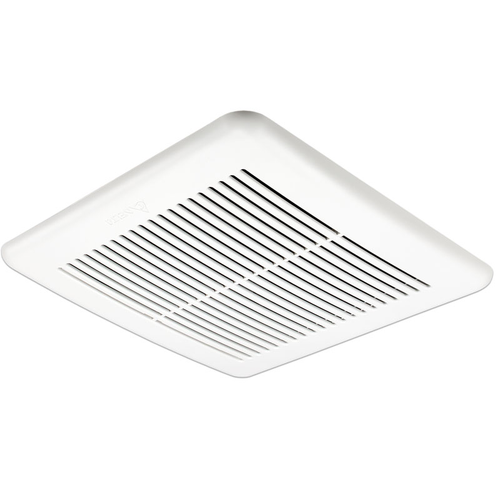

Delta Breez ELT LED Grille Assy for ELT80-110LED, ELT80-110DLED, ELT80-110HLED

Delta Breez ELT LED Grille Assy for ELT80-110LED, ELT80-110DLED, ELT80-110HLED

(No reviews yet) Write a Review

Model: VFRU-21-32GA
From the BreezElite Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$104.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delta Breez ELT LED Grille Assy for ELT80-110LED, ELT80-110DLED, ELT80-110HLED

Features

  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • Perfectly quiet operation at 0.5 sones (80 CFM) and 0.7 sones (110 CFM) with a 6-inch duct
  • Adjustable high speed 80 CFM or 110 CFM
  • Adjustable low speeds down to 50 CFM for continuous operation
  • Energy efficiency at 10.6 CFM/Watt
  • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
  • Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements
  • Includes 6" to 4" duct reducer
  • Green and amber LED indicator lights show continuous low speed and full speed modes
  • Annual energy cost for 24/7 operation is approximately $7.36* (80 CFM) or $10.83* (110 CFM)

Product Specs

Subcategory:
BreezElite
Duct Size:
4" - 6"
Duct Diameter:
4", 6"
Energy Star:
Yes
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Accessories
Collection:
BreezElite
Product Type:
Grille
Product Height:
7-7/8"
Product Category:
Ventilation Accessories
Department:
Plumbing
Parts and Accessories Type:
Grille
Application:
Ventilation Fan

Delta Breez VFRU-21-32GA – Frequently Asked Questions

1) Which Delta Breez fans does the VFRU-21-32GA grille assembly fit?
The VFRU-21-32GA is the LED grille assembly for the Delta Breez BreezElite ELT series fans: ELT80-110LED, ELT80-110DLED, and ELT80-110HLED. It is the replacement face for those three models specifically, not a universal bath fan cover.
2) Does the Delta Breez ELT grille come with the LED light, or do I need to order that separately?
The grille assembly carries the ELT series LED light. On the ELT80-110 fans that light is a 13-watt dimmable LED putting out 850 lumens at 3000K with 90 CRI, roughly a 60-watt incandescent equivalent. A dimmer switch is not part of it, so if the job calls for dimming, the switch is a separate line item.
3) How big is the Delta Breez ELT LED grille? I need to know if it will cover the existing ceiling opening.
Height on the grille assembly is 7-7/8 inches. Since it is the factory face for the ELT80-110LED, ELT80-110DLED and ELT80-110HLED housings, it lands back on the same ceiling cutout those fans were installed with, so there is no drywall patching when you swap it onto one of those units.
4) Will swapping this grille affect the airflow or sone rating of my ELT80-110 fan?
No, it is the factory grille for the ELT80-110 series, so the fan performs to its published numbers: 80 or 110 CFM on adjustable high speed, low speeds down to 50 CFM for continuous ventilation, 0.5 sones at 80 CFM and 0.7 sones at 110 CFM on 6-inch duct, and 10.6 CFM per watt. An aftermarket or mismatched cover is what changes those numbers.
5) Does the ELT LED grille meet California Title 24 lighting requirements?
The ELT series LED is 3000K at 90 CRI, which the manufacturer states meets CEC JA8 Title 24 requirements. The ELT80-110 fans it mounts to are ENERGY STAR qualified with a brushless DC motor. That combination is what gets these specified into California multi-family and remodel work.
6) What duct size do the Delta Breez ELT fans this grille fits use?
The ELT80-110 units duct at 6 inches and ship with a 6-inch to 4-inch reducer, so they will run on either 4-inch or 6-inch duct. Run 6-inch where you can, the quiet ratings of 0.5 and 0.7 sones are measured on 6-inch duct. The grille itself does not change the duct connection.
7) Are the green and amber indicator lights part of the ELT grille?
The ELT80-110 fans use a green and an amber LED indicator to show whether the unit is running continuous low speed or full speed, and those indicators read through the grille face. If a tenant is complaining they cannot tell what mode the fan is in, a damaged or wrong grille is worth checking before the control.
