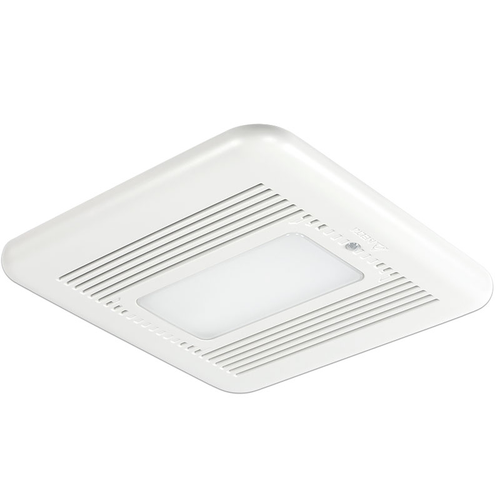

Delta Breez Motion Sensor for SIG80-110MH

Delta Breez Motion sensor for SIG80-110MH

Features

• When motion is detected, fan runs at full speed. When user leaves, fan remains running at full speed until delay time (20 minutes) has passed, then fan runs humidity control mode
• For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 30, 50, 60, or 80 CFM)
• Adjustable humidity set points between ~50% to ~90% RH
• White Grille
• Includes 6" to 4" duct reducer
• Energy efficiency at 15.4 CFM/Watt
• Blue and amber LED indicator lights to show humidity sensor and full speed modes
• Annual energy cost for 24/7 operation is approximately $6.50* (80 CFM) or $8.62* (110 CFM)

Resources

• VFRU-25-34MS-Spec-Sheet
• VFRU-25-34MS-INSTALLATION AND OPERATING MANUAL
