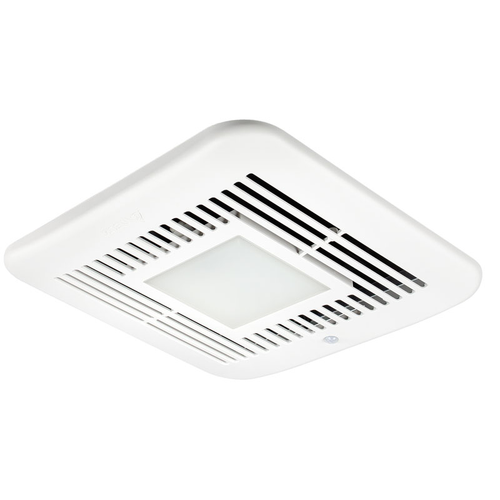

Delta Breez SIG80-110MHLED Grille/LED Light/Motion Sensor

Delta Breez SIG80-110MHLED Grille/LED Light/Motion Sensor

(No reviews yet) Write a Review

Model: VFRU-25-30GA
From the BreezSignature Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$125.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Delta Breez SIG80-110MHLED Grille/LED Light/Motion Sensor

Features

  • White Grille with dimmable LED light
  • (1) 13-Watt LED main light (equivalent to a 60-Watt incandescent bulb)
  • (1) 2-Watt LED night light
  • Main light output 950 Lumens, 3000K, 90 CRI
  • LED life is 30,000 hours (compare with 10,000 hours CFL life)
  • When motion is detected, fan runs at full speed. When user leaves, fan remains running at full speed until delay time (20 minutes) has passed, then fan runs humidity control mode
  • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 30, 50, 60, or 80 CFM)
  • Adjustable humidity set points between ~50% to ~90% RH
  • Energy efficiency at 13.8 CFM/Watt
  • Ceiling mount ventilating fan w/Dimmable LED Light/Night-Light with motion and humidity sensor rated for continuous running
  • Blue and amber LED indicator lights to show humidity sensor and full speed modes.

Product Specs

Subcategory:
BreezSignature
Duct Diameter:
4" - 6"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Accessories
Collection:
BreezSignature
Product Type:
Grille
Product Height:
7-7/8"
Product Category:
Ventilation Accessories
Department:
Plumbing
Parts and Accessories Type:
Grille
Application:
Ventilation Fan

Delta Breez VFRU-25-30GA – Frequently Asked Questions

1) Does the Delta Breez SIG80-110MHLED grille assembly include the light and sensors, or just the cover?
The SIG80-110MHLED grille is the full front assembly for the BreezSignature fan: white grille with a dimmable 13-Watt LED main light (equivalent to a 60-Watt incandescent), a 2-Watt LED night light, and the motion and humidity sensing built in. It is the cover plus the lighting and control package, not a bare plastic louvre.
2) How does the motion sensor and humidity control actually behave on the SIG80-110MHLED?
Two modes work together. On motion, the fan jumps to full speed and stays at full speed for a 20 minute delay after the room empties. It then drops into humidity control: above the set point it runs full speed, below it runs continuously at a pre-set lower level of 0, 30, 50, 60, or 80 CFM. Set point is user adjustable from roughly 50 to 90 percent RH. Blue and amber indicator LEDs tell you which mode it is in, which saves guessing on a service call.
3) Can this bath fan run continuously for whole-house ventilation or ASHRAE 62.2 compliance?
Yes, the BreezSignature ceiling fan with dimmable LED light, night light, motion and humidity sensor is rated for continuous running, and it will hold a low continuous rate of 30, 50, 60, or 80 CFM between humidity events. That low-speed continuous operation is exactly the arrangement used for continuous dwelling ventilation.
4) I have the Delta Breez SIG80-110MHLED and the light quit. Do I replace the whole fan?
No. The grille and LED light with motion sensor is available as a service part under MPN VFRU-25-30GA, so you replace the front assembly and leave the housing and duct connection in the ceiling. Delta publishes an installation manual for the swap.
5) Is this Delta Breez fan light bright enough to be the only light in a small bathroom?
Main light output is 950 lumens at 3000K with 90 CRI, and it dims. In a small bath or powder room that is usually enough as the sole fixture; the 3000K warm-white and 90 CRI render skin tones well for a vanity. Larger baths typically still want a separate vanity light.
6) Does the Delta Breez SIG80-110MHLED qualify for Energy Star utility rebate programs?
It is an Energy Star product, with efficiency of 13.8 CFM per Watt. Property managers and multi-family buyers chasing utility incentive paperwork will want the submittal sheet and installation manual, both published for this model.
7) Will a standard wall dimmer control the LED on this Delta Breez unit?
The main LED is dimmable, but the fan itself is governed by its own onboard motion and humidity logic rather than a wall control, including the 20 minute run-on and the humidity set point. Wire and commission per the installation manual rather than assuming a generic dimmer circuit will behave.
8) How often will I have to get back in the ceiling to change the bulb?
There is no bulb. LED life is rated at 30,000 hours against about 10,000 hours for a CFL, so for an MRO or property maintenance crew this removes a recurring lamp swap across a portfolio of baths.
9) What is the face size of the SIG80-110MHLED grille?
Product height is listed at 7-7/8 inches. Useful check if you are replacing an older grille and want to know whether the new one will cover the existing ceiling cutout and any paint line around it.
