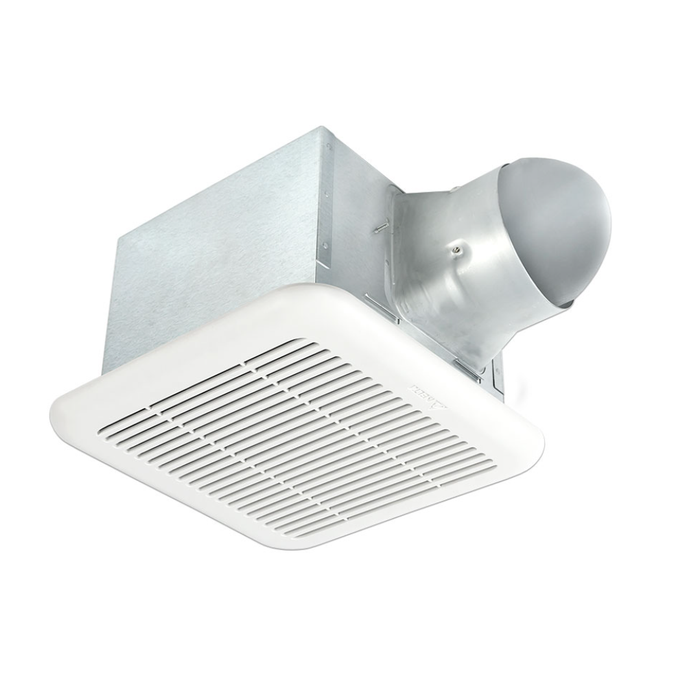

Delta Breez Signature - SIG80-110D - 80/110 CFM Exhaust Fan with Dual Speed

Delta Breez Signature - SIG80-110D - 80/110 CFM Exhaust Fan with Dual Speed

(No reviews yet) Write a Review

Model: SIG80-110D
From the BreezSignature Collection
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$223.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Innovative brushless DC motor design for long life, low noise, and low power consumption
The exceptional reliability of Delta’s Brushless DC Motor is combined with control options including adjustable continuous low speed down to 30 CFM. Delta Breez model SIG80-110D has been awarded ENERGY STAR® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and quiet operation at less than 0.3 Sones at 0.1” static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 8.2 Watts with efficiency rating of 15.3 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

  • Delta Breez Signature - SIG80-110D - 80/110 CFM Exhaust Fan with Dual Speed.
  • Adjustable high speed 80 or 110 fan for spaces up to 110 sq. ft.
  • Brushless DC Motor outlasts typical AC motors by 2-1/2.
  • Virtually silent at <0.3 sones.
  • Energy star®-qualified.
  • Adjustable high speed options of 80 or 110 CFM.
  • Adjustable low speed options of 0, 30, 50, 60, 80 CFM.
  • Delay time preset positions (0.5, 5, 15, 30, 45, or 60 min).
  • Housing size 9-5/8" x 9-5/8" x 7-7/8".
  • 6" duct (includes 6" to 4" duct reducer).
  • UL and cUL for ceiling mount installation.
  • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
  • 3 yr. limited warranty.

Product Specs

Subcategory:
BreezSignature
Fan Speed:
Continuous Low/Speed Full Speed
Static Pressure:
0.1 - 0.25
Maximum CFM:
110
Sones:
<0.3 - 2.0
Current:
0.38 Max
Duct Size:
4" - 6"
Duct Diameter:
4" - 6"
Energy Star:
Yes
Warranty:
3 Year Limited
Product Group:
Washroom/Bath
Product Subgroup:
Ventilation Fans
Collection:
BreezSignature
Product Voltage:
120/60
Product Height:
7-7/8"
Product Category:
Ventilation Fans
Product Width:
12/3/08
Department:
Plumbing
Product Wattage:
4.5 - 17.5
Product Depth:
12-3/8"

Delta Breez SIG80-110D – Frequently Asked Questions

1) Will the Delta Breez Signature SIG80-110D fit a 4 inch duct, or do I have to run 6 inch?
The SIG80-110D ships with a 6 inch duct collar and includes a 6 inch to 4 inch reducer, so it connects to either. Duct size range on the spec is 4 to 6 inches. Running the full 6 inch is the better choice when you want the fan holding its rated 110 CFM, since the reducer adds resistance; on a short run to an existing 4 inch stack the reducer lets you drop it in without re-ducting the ceiling.
2) Can a Delta Breez SIG80-110D be installed over a tub or inside a shower?
Yes. The SIG80-110D is UL and cUL listed for installation in a tub or shower enclosure, on the condition that the branch circuit feeding it is GFCI protected. It is also UL and cUL listed for ceiling mount. If the circuit in that bathroom is not GFCI protected, that has to be corrected before the fan goes in wet-location.
3) How big a bathroom will an 80/110 CFM Delta Breez Signature fan handle?
The SIG80-110D is rated for spaces up to 110 square feet. The high speed is field-adjustable to either 80 or 110 CFM, so on a small powder room you set it to 80 and on a full bath near the top of that range you set it to 110. For a bathroom larger than 110 square feet, or one with a separate enclosed water closet, you need a higher CFM fan or a second unit.
4) How do I set up a Delta Breez SIG80-110D to run continuously for whole-house or code-required ventilation?
That is what the dual speed does. Low speed is selectable at 0, 30, 50, 60 or 80 CFM, so you set a continuous trickle rate (30 CFM is the usual choice for a bath running around the clock) and the fan steps up to 80 or 110 CFM when the switch is thrown. Setting low speed to 0 turns the continuous function off and gives you a plain single-speed exhaust fan. Fan speed on the spec reads continuous low / full speed.
5) What circuit and wattage do I need to size for the Delta Breez SIG80-110D?
It runs on 120V 60Hz and draws 0.38 amps maximum. Power consumption is 4.5 to 17.5 watts depending on the speed setting, and 8.2 watts at the 110 CFM rating with an efficiency of 15.3 CFM per watt at 0.1 inch static pressure. That draw is small enough that a bank of these on one 15 amp GFCI-protected bath circuit is straightforward, which matters when you are fitting out a floor of units rather than one bathroom.
6) Does the Delta Breez SIG80-110D need a separate timer switch to keep running after someone leaves the bathroom?
No separate timer is required. The fan has a built-in delay with preset positions of 0.5, 5, 15, 30, 45 or 60 minutes, so it keeps exhausting after the switch opens. For multifamily or hotel bathrooms where tenants shut the fan off too early, presetting 30 or 60 minutes at install takes the decision out of their hands and saves you buying and wiring a countdown timer at every opening.
7) How quiet is the Delta Breez Signature SIG80-110D compared to a standard bath fan?
Under 0.3 sones at 0.1 inch static pressure, HVI certified, at the low end of its range; the published sone range runs from less than 0.3 up to 2.0 across its speed settings. Under 0.3 sones is effectively inaudible in the room, which is why this fan gets specified where the bathroom shares a wall with a bedroom or where a continuous-run fan would otherwise be shut off for noise. Static pressure ratings are published at 0.1 and 0.25 inches.
8) Is the Delta Breez SIG80-110D ENERGY STAR qualified for a green build or utility rebate program?
Yes, the SIG80-110D carries ENERGY STAR qualification, and the airflow, sone and CFM per watt figures behind it are HVI certified, which is the certification most rebate and green building programs ask to see. The measured numbers are 110 CFM, under 0.3 sones and 15.3 CFM per watt at 0.1 inch static pressure.
9) Is a brushless DC bath fan worth it over a standard AC exhaust fan for rental units?
For anything you have to service yourself, yes. The brushless DC motor in the SIG80-110D is engineered to run a minimum of 70,000 hours and outlasts a typical AC motor by 2-1/2 times, which is the difference between a fan you replace every few years and one you install once. It also holds airflow when static pressure builds in a long or dirty duct run, because the motor self-compensates its speed, and it has motor lock protection. That combination is what makes a continuous-run application practical; an AC fan run around the clock will not last.
10) Where can I get the installation instructions and submittal sheet for the Delta Breez SIG80-110D?
Delta publishes both for this model. The installation manual is at https://zensupply.com/content/pdf/delta-breez/SIG_G3_IM_e.pdf and the submittal sheet, which is what you hand over for a spec or permit package, is at https://zensupply.com/content/pdf/delta-breez/SIG80-110D_Submittal_Sheet_e.pdf.
