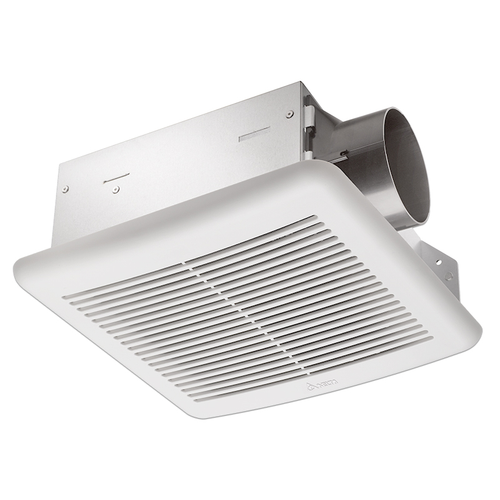

Delta Breez BreezSlim Ventilation Fans - SLM50/70 Housing with Metal Duct
All BreezSlim ventilation fans are ENERGY STAR® qualified and fit in a 4” wall. Perfect for retrofit into an existing space for ceiling mount and/or wall mount installation (UL listed for both) with single speed or dual speed fan options into your next multifamily or single-family project. BreezSlim breaks the mold of the everyday bathroom exhaust fan.
Features
Innovative DC brushless motor design for long life, low noise, and low power consumption.
- ENERGY STAR® qualified with innovative brushless DC motor technology
- Compact housing for easy retrofit and replacement of older bath fans
- UL listed for both ceiling-mount and wall-mount installation
Manufacturer Resources
Product Specs
- Subcategory:
- BreezSlim
- Duct Size:
- 3"
- Duct Diameter:
- 3"
- Energy Star:
- Yes
- Warranty:
- 3 Year Limited
- Product Group:
- Washroom/Bath
- Product Subgroup:
- Ventilation Accessories
- Collection:
- BreezSlim
- Product Type:
- Housing and Duct
- Product Height:
- 4"
- Product Category:
- Ventilation Fans
- Product Width:
- 9-3/8"
- Department:
- Plumbing
- Product Depth:
- 10-3/4"
- Parts and Accessories Type:
- Housing
- Application:
- Ventilation Fan
Delta Breez SLM-AMTL – Frequently Asked Questions
1) Will the Delta Breez BreezSlim SLM housing fit in a 2x4 wall?
Yes. The BreezSlim housing is 4 inches high, which is what lets it drop into a 4 inch wall cavity. That is the whole point of the BreezSlim body: it's the same depth as a standard stud bay, so you can wall-mount it where a conventional bath fan box would never go. Footprint is 9-3/8 by 10-3/4 inches for the rough opening side of things.
2) Can the BreezSlim SLM50/70 fan be mounted on a wall, or is it ceiling only?
Both. The BreezSlim is UL listed for ceiling-mount and for wall-mount installation, so the same housing covers a bathroom with no attic access above it and one where you're ducting up through the ceiling. That flexibility is why it shows up on multifamily retrofits where every unit has a slightly different exhaust path.
3) What size duct does the Delta Breez SLM-AMTL housing kit use?
3 inch round. The SLM-AMTL ships as the BreezSlim housing together with metal duct sized to that 3 inch diameter, so if you're tying into an existing 4 inch run you'll need a transition at the connection. Plan the duct route around 3 inch before you cut anything.
4) Is the SLM-AMTL a complete bath fan, or just the housing?
It's the housing and metal duct portion of the BreezSlim SLM50 and SLM70 fans, not a finished fan on its own. Order it when you're roughing in the box and duct run and pairing it with the BreezSlim fan body and grille. If you want a single ready-to-hang exhaust fan out of one carton, this isn't the part number to buy.
5) Can I retrofit a BreezSlim over an old bathroom exhaust fan without tearing up the ceiling?
That's what the compact body is built for. Delta sizes the BreezSlim housing at 9-3/8 by 10-3/4 by 4 inches specifically so it goes back into the space an older bath fan came out of, ceiling or wall. Measure the existing opening against those numbers first, and remember the duct collar is 3 inch, so an existing 4 inch flex run needs a reducer at the housing.
6) Is the Delta Breez BreezSlim fan ENERGY STAR qualified for code compliance?
Yes, every BreezSlim ventilation fan is ENERGY STAR qualified. The rating comes off the brushless DC motor, which draws less power than the shaded-pole motors in older bath fans. If your project is chasing an efficiency credit or a utility rebate program that keys on ENERGY STAR, the BreezSlim line qualifies.
7) Will one SLM-AMTL housing work for both the SLM50 and the SLM70 fan?
Yes, it's a shared housing across the SLM50 and SLM70, so a property manager standardizing a building can stock one rough-in part and decide the CFM at the fan. Single speed and dual speed BreezSlim fan options both run on it.
8) Why choose a DC brushless bath fan housing over a standard AC exhaust fan for an apartment building?
Noise and service life are the practical difference. The BreezSlim uses a brushless DC motor for long life, low noise, and low power draw, which matters when a fan runs continuously for ventilation code in a multifamily unit and a tenant complaint about noise costs you a truck roll. A conventional AC bath fan is the cheaper box, but it doesn't carry the ENERGY STAR qualification the BreezSlim line does.
