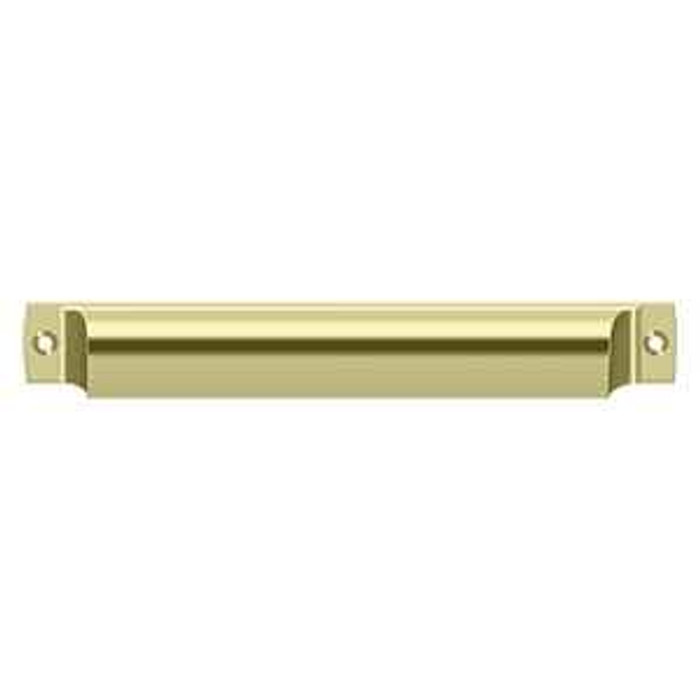

Deltana SHP70 Rectangular Shell Pull 7"

Projection on the SHP70 is 15/16 inch. That is the amount the pull stands proud of the face once mounted, so in a tight galley or a hallway run of cabinets it barely catches a hip. Overall the pull is 7 inches long and 1-1/16 inches high, which is the footprint it covers on the drawer front.

No. A shell pull is a cup, not a bar on posts, so there is no center to center dimension to match. You order it by overall length, and the SHP70 is the 7 inch size. If your existing pulls are bar or wire style you are drilling new holes anyway, because a bar pull's two holes will not line up under a shell. Where you do need a ctc number is on bar and drawer pull styles, for example the Trimco 553 Series at 3 inch ctc or the Omnia 1968/102 at 4 inch ctc.

Not as a finish match you can count on. The SHP70 is Deltana's own finish range, and finish names across brands do not cross reference, so a Deltana Oil Rubbed Bronze and another maker's oil rubbed bronze are two different treatments. If part of the kitchen is already Emtek Schaub Collection or Omnia forged brass, the reliable move is to stay inside one brand for the run you can see at once, and let a different room carry the other. Where the shapes differ anyway, Omnia's 1969 and 1971 are forged solid brass modern pulls with a 1-3/16 inch projection.

For a solid brass cabinet pull from another maker, the Omnia 1968/102 Modern Cabinet Pull is forged solid brass with 4 inch center-to-center spacing. The Deltana SHP70 is a 7 inch rectangular shell pull in solid brass, and its shell body is mounted as a recessed-style shell rather than a bar spanning two drilled centers, so the two are not a drop-in swap on an existing 4 inch center hole pattern. Choose the SHP70 when you want the shell profile and the Omnia 1968/102 when the drawer front is already bored for 4 inch centers.

The Deltana SHP70 is a 7 inch residential cabinet pull. For an appliance panel, the Schaub 79-8 Steamworks 8 inch pull is built as an appliance pull, which is the category sized and mounted for the loads a refrigerator or range door puts on a handle. Use the SHP70 on cabinet doors and drawers and the Schaub 79-8 where the panel is an appliance front.

Solid brass through the body, not a zinc casting with a brass coating. That matters on a shell pull because the cupped face takes fingernails and cleaning cloths daily, and a plated pot metal shell wears through at the lip. Brass is also why the unlacquered version can be left to patina on purpose.

Ten finishes: PVD Polished Brass, Unlacquered Brass, Brushed Brass, Antique Brass, Oil Rubbed Bronze, Polished Nickel, Brushed Nickel, Polished Chrome, Brushed Chrome, and Paint Black. Two of those behave differently over time. Unlacquered Brass is bare metal and will darken and patina with handling. PVD Polished Brass is a vapor deposited coating that holds its color. If you are matching new pulls to pulls installed a few years ago, that distinction is usually the one that trips people up.

They solve different problems. A shell pull like the SHP70 is a recessed cup you hook your fingers into, so it projects only 15/16 inch and nothing snags on it in a narrow aisle. A bar pull gives you a full hand grip and more leverage, which is what you want on a heavy pots and pans drawer or an appliance front. If leverage is the priority, look at the Orca Hardware CK-12001 T-Pull Bar with its 2 inch bar width, or the Schaub 79-8 Steamworks 8 inch appliance pull. For flush handling with minimal projection, the shell is the right call.

Deltana lists the SHP70 as residential. For a rental unit, a spec home, or a millwork package in an apartment it is the intended use. For a high traffic commercial casework job where the specifier wants a commercial grade drawer pull, look at the Trimco 553 or 562 Series drawer pulls instead.

Yes, and that is one of the places a shell earns its keep. Because it projects just 15/16 inch, it does not foul a door that has to slide past its neighbour the way a bar or knob would. Deltana intends the SHP70 for cabinets and drawers of all kinds. On a bypass door, mount it where the 7 inch length runs clear of the overlap.

The Deltana SHP70 has a 15/16 inch projection. If a deeper standoff suits the run better, the Omnia 1969 and Omnia 1971 are forged solid brass modern cabinet pulls at 1-3/16 inch projection, and the Omnia 1970 is forged solid brass at 1-1/4 inch projection. All three are bar-style pulls, so the hand clears the drawer face differently than it does on a shell.

The Trimco 553 Series drawer pull is a 3 inch center-to-center drawer pull, and the Trimco 562 Series offers 3-1/2 inch, 4 inch and 96mm center-to-center options. Both are two-hole drawer pulls that follow the bore pattern already in most stock drawer fronts. The Deltana SHP70 is a 7 inch solid brass rectangular shell pull, a larger single unit with a shell profile. If the existing fronts are drilled on 3 inch or 4 inch centers, the Trimco series matches that pattern.

The SHP70 is sold each, and the unit shown is one pull. For a kitchen or a unit turnover, count your drawer and door fronts and order that quantity, one per opening.

The Orca Hardware CK-12001 T-Pull Bar is a steel pull with a 2 inch bar width in satin nickel. The Deltana SHP70 is solid brass and comes in ten finishes including polished nickel, brushed nickel, polished chrome, brushed chrome, oil rubbed bronze, PVD polished brass, unlacquered brass, brushed brass, antique brass and paint black. Mixing them means mixing a steel bar pull against a brass shell pull, so match them on the finish you want rather than assuming a nickel-on-nickel match across the two materials.

Emtek's Schaub collection covers several cabinet pull series: the 8405 Select, the Alexander, the Art Deco and the Bar. All are cabinet knob or pull products, so they serve the same opening as the Deltana SHP70, a 7 inch rectangular shell pull in solid brass with a 1-1/16 inch height and 15/16 inch projection. The distinction is profile and series styling rather than function, so specify by the look the cabinetry calls for.
