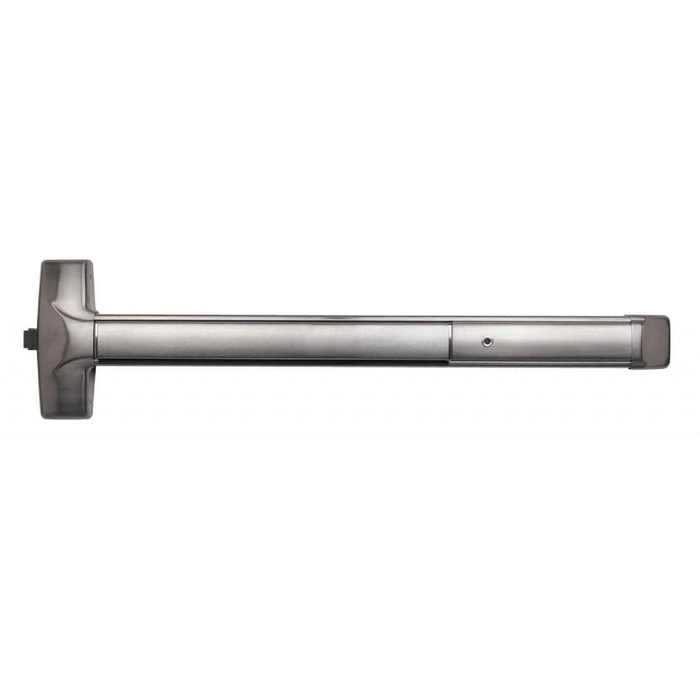

Detex 10 Advantex Series 48" Wide Stile Extra Heavy Duty Rim Exit Device

Detex 10 Advantex Series 48" Wide Stile Extra Heavy Duty Rim Exit Device

(No reviews yet) Write a Review

Model: 10 HD 628 99 48
$1,818.00
$1,202.67
Selected Finish is
Selected Outside Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,818.00
$1,202.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex 10 Advantex Series 48" Wide Stile Extra Heavy Duty Rim Exit Device

Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex 10 Advantex Series Rim Exit Device delivers professional-grade exit hardware engineered for demanding commercial applications. This 48" wide stile configuration provides super-heavy-duty panic and fire exit hardware suitable for all types of single and double doors with mullions. Built with stainless steel components and tested beyond 1,000,000 cycles, this Grade 1 device offers twice the cycling durability required for UL testing standards.

Professional Features & Benefits

  • Door Width Compatibility: 48" wide stile design accommodates larger door configurations for versatile commercial installations.
  • Exceptional Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for long-term reliability in high-traffic applications.
  • Advanced Construction: Stainless steel deadlocking Pullman-type latch bolt with all exposed surfaces finished over stainless steel using environmentally-friendly PVD process.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation available.
  • Heavy-Duty Protection: Angled end cap design deflects damage away from device in high-abuse environments.
  • Field Flexibility: Non-handed design with field sizeable capability and outside trims easily changed or re-keyed without removing device from door.
  • Minimal Door Preparation: Streamlined installation requirements save time and money during setup.
  • Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Duty Level: Extra Heavy Duty
  • Fire Rating: No
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 10
  • Product Size: 48"
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile Type: Wide Stile
  • Subcategory: Exit Devices - Rim
  • Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Weatherized: No
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex exit devices deliver professional-grade reliability with stainless steel construction and patented mounting systems tested beyond 1,000,000 cycles. The 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable performance and easy installation are essential.



Resources

Installation Instructions
Parts List
Door Templates
Installation Video

Product Specs

Subcategory:
Exit Devices - Rim
Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Weatherized:
No
Grade:
Grade 1
Stile Type:
Wide Stile
Duty Level:
Extra Heavy Duty
Wood Door Compatible:
No
Product Model:
10
Product Size:
48"
Fire Rating:
No
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 10 HD 628 99 48 – Frequently Asked Questions

1) Does the Detex 10 Series exit device have to be ordered handed?
Handing gets specified on the order, though the device itself is non-handed and field sizeable. You pick Right Hand Reverse or Left Hand Reverse, and the trim can be changed or re-keyed later without pulling the device off the door. That matters if you are standardizing a building and don't want to stock two versions of everything.
2) Will a 48 inch rim exit device fit my door, or do I need the shorter one?
The 48 inch size of the Detex Advantex 10 is sized for wider leaves, and it is field sizeable, so it can be cut down within its range rather than swapped for another length. It is a wide stile device, so the door needs a wide stile to take the pushpad chassis. Narrow stile aluminum storefront doors need a narrow stile device instead, such as the Corbin Russwin ED4200 or the TownSteel ED3700.
3) Can I use a rim exit device on a pair of doors?
Yes, with a mullion. The Detex Advantex 10 rim device suits single and double doors with mullions, because a rim device latches into a strike at the jamb or mullion rather than at the head and sill. If you cannot have a center mullion in the opening, a rim device is the wrong choice and you want a vertical rod device, like the Hager 4501 concealed vertical rod for wide stile doors.
4) Can I get a Detex exit device with an alarm or request-to-exit built in?
Yes. The Advantex 10 offers EA hardwired electric alarm, EX request to exit signal switch, EE delayed egress, and ER EX electric latch retraction with request to exit. EA is the local horn for a door that should not be used casually. EX just reports the push to your access control panel. EE holds the door for the delayed egress interval before releasing, which is the loss prevention or memory care answer. ER EX pulls the latch electrically so the door free-swings on a card read. Non-electrified is also an option.
5) Can I put a Detex 10 Advantex on a wood door?
The Detex 10 Advantex is not wood door compatible. Among rim exit devices, the Adams Rite 3700 Series is a fire rated Grade 1 narrow stile rim device rated for wood doors, and the Adams Rite 8700 Series is a Grade 1 narrow stile rim device rated for wood doors without a fire rating. Both use starwheel interlocking and are narrow stile, so the door stile has to suit that profile.
6) The opening needs a fire rated exit device on a 48 inch door. What should I use instead of the Detex 10 Advantex?
The Detex 10 Advantex is a panic device without a fire rating, so it cannot go on a fire rated opening. The Marks USA M9900F is a 48 inch fire rated rim panic exit device, exit only, with a panic protector end cap. If the door is 36 inches, the Marks USA M9900F-36 covers the same function in the shorter length. Other fire rated rim options include the Dexter ED1000 Series Grade 1 fire rated rim exit device and the Orca Hardware OED85 Series 36 inch fire rated rim device.
7) What is the closest equivalent to a Detex 10 Advantex 48 inch rim exit device from another manufacturer?
For a 48 inch wide stile rim device, the Sargent 2828 is a Grade 1 reversible wide stile rim exit device built for a 48 inch minimum door width, and the DORMA 9300 Series is a 48 inch wide stile panic rim exit device rated Grade 1 with a 1-3/4 inch to 2-1/4 inch door thickness range. The Detex 10 is a Grade 1 extra heavy duty wide stile rim device in a 48 inch size. Note that the Sargent 2828 and the DORMA 9300 are both listed exit only, while the Detex 10 can be ordered with outside trim including 03C night latch, 08D classroom lever, and 09D storeroom lever.
8) Will a Detex 10 Advantex fit an aluminum storefront door with a narrow stile?
No. The Detex 10 Advantex is a wide stile device and needs the stile width to match. For narrow stile aluminum doors, the Adams Rite 8800 Series is a narrow stile rim exit device with a 1-3/4 inch to 2-1/4 inch door thickness range, and the Adams Rite 8700 Series and EX88 are narrow stile rim devices with starwheel interlocking. The Falcon 19-R and Falcon 1590EO are Grade 1 narrow stile rim devices, exit only, for 1-3/4 inch doors. The Corbin Russwin ED4200 is a Grade 1 narrow stile rim device that accepts trim.
9) The door is 36 inches, not 48. What Grade 1 wide stile rim exit device fits that opening?
The Detex 10 Advantex in the 48 inch size is sized for wider doors. For a 36 inch wide stile opening, the Von Duprin 22-3FT is a Grade 1 non-handed wide stile pushpad rim device for 1-3/4 inch doors, the Corbin Russwin ED5200 is a Grade 1 36 inch wide stile rim device that accepts trim, and the TownSteel ED9700 is a 36 inch Grade 1 heavy duty rim device. The BEST Precision 2101 Series is a 36 inch wide stile rim device as well.
10) How does the Detex 10 Advantex compare to an SDC pressure sense bar or switch bar for an access controlled opening?
They are different classes of hardware. The Detex 10 Advantex is a Grade 1 mechanical rim exit device with a latch bolt, orderable with electrified options including EA hardwired electric alarm, EX request to exit switch, EE delayed egress, and ER EX electric latch retraction with request to exit. The SDC MSB550 Series is a mechanical switch bar that releases an electromagnetic lock rather than latching into a strike, and the SDC PSB560 SureExit is a pressure sense bar with tri-failsafe technology; both are offered for narrow or wide stile doors. If the opening is held by a maglock, the SDC bars fit that scheme; if it needs a latching exit device, the Detex 10 does.
11) What dogging options come on the Detex 10 Advantex, and which should I pick?
Three choices: cylinder dogging, hex dogging, or less dogging. Cylinder dogging lets staff hold the latch retracted with a key, which suits a retail or school entry that stays open during business hours and gets secured by a keyholder. Hex dogging is cheaper and uses an allen key, fine where only maintenance touches it. Less dogging means the latch always projects, which is what you specify when the AHJ or the door schedule requires the opening to stay latched.
12) What outside trim can I get on the Detex Advantex 10 rim device?
Five outside options: 01C blank plate, 03C night latch trim, 08D classroom lever, 09D storeroom lever, or exit only with no outside trim at all. Storeroom lever keeps the outside always locked with key access, classroom lever lets a key set the outside lever locked or unlocked, night latch is a key-retracting pull for after-hours entry, and blank plate or exit only means nobody comes in that door. Trim can be swapped or re-keyed later without taking the device off the door.
13) Is the Detex Advantex 10 tough enough for a high abuse door like a school or warehouse exit?
That's what it's built for. Extra heavy duty, Grade 1, tested beyond 1,000,000 cycles, twice the cycling Grade 1 UL testing requires. The latch is a stainless steel deadlocking Pullman type, exposed surfaces are finished over stainless using a PVD process, and the end cap is angled to deflect impact away from the device. If your traffic is lighter and budget matters more, the Cal-Royal 5500 is a Grade 2 heavy duty 48 inch rim device.
14) Can the Detex 10 Series go on an exterior door exposed to weather?
The Detex Advantex 10 is not a weatherized device, so keep it on interior-facing or protected openings rather than a fully exposed exterior door. A hurricane rated version is orderable if the opening is in a wind-borne debris zone and the door schedule calls for it.
15) Is a rim exit device the right type for my opening, or should I use a vertical rod or mortise device?
A rim device like the Detex Advantex 10 mounts on the door face and latches into a single strike at the jamb, so it is the simplest to install and service, and it works on single doors and on pairs with a mullion. If the opening is a pair with no mullion, you need vertical rods instead, such as the Hager 4601 concealed vertical rod. If the door is a narrow stile aluminum storefront leaf, the pushpad chassis on a wide stile device will not fit and you want something like the Adams Rite 8800, which lists a 1-3/4 to 2-1/4 inch door thickness range.
16) Is there a lighter duty rim exit device for a 48 inch door if Grade 1 extra heavy duty is more than the opening needs?
The Cal-Royal 5500 is a 48 inch wide rim exit device with a push bar, rated Grade 2 heavy duty, and the Cal-Royal A9820 Series is a 48 inch rim exit device, exit only, also carrying a Grade 2 rating at heavy duty. Both sit a duty step below the Detex 10 Advantex, which is Grade 1 extra heavy duty. The Design Hardware 2000R is a standard duty wide stile rim device with hex key dogging in a 33 inch length if the door is narrower.
17) I need a crossbar exit device rather than a push pad. Is the Detex 10 Advantex the right choice?
The Detex 10 Advantex uses a push rail with an angled end cap, not a crossbar. If the specification calls for a crossbar, the CRL Jackson 1095 Series is a 48 inch crossbar rim panic exit device, wide stile, exit only, and the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim exit device, wide stile, panic device only, for 1-3/4 inch doors. The Sargent 3828 is a Grade 1 reversible standard push bar rim device for 48 inch doors if a push bar rather than a crossbar is acceptable.
18) Which rim exit devices accept classroom or storeroom lever trim like the Detex 10 Advantex?
The Detex 10 Advantex takes 08D classroom lever trim and 09D storeroom lever trim, along with 03C night latch trim, 01C blank plate, or exit only. Among other rim devices, the Corbin Russwin ED5200 and ED4200 are Grade 1 devices listed as exit only or accepting trim, and the Dormakaba electrified rim device with 4908A trim is supplied in an 08 classroom function. Many rim devices in this class, including the Sargent 2828 and the Cal-Royal A9820, are exit only and take no outside lever.
19) Is a concealed vertical rod device a substitute for a Detex 10 Advantex rim device?
No, they prep the door differently. The Detex 10 Advantex is a rim device that latches into a surface strike on the frame or a mullion. The Hager 4501 Series is a Grade 1 concealed vertical rod exit device with a wide stile pushpad and the Hager 4601 Series is a Grade 1 concealed vertical rod narrow stile device; both latch top and bottom through rods inside the door, which requires a door prepped for that. If the opening is already prepped for rim hardware, the Hager 4701 Series is a rim exit device with Grade 1 BHMA certification.
20) The door is thicker than 1-3/4 inches. Which exit devices cover that?
Several rim devices are listed for 1-3/4 inch doors only, including the Von Duprin 22, the Corbin Russwin ED3200, and the Falcon 19-R. For thicker doors, the DORMA 9300 Series covers 1-3/4 inch to 2-1/4 inch and the Adams Rite 8800 Series covers the same 1-3/4 inch to 2-1/4 inch range. The Securitron EMB electromechanical exit bar is listed at 2-1/4 inch, and the SDC S6000 Series covers 1-3/4 inch to 2 inch.
21) What is the difference between the Detex 10 Advantex and the Sargent 8504 night latch device?
The Sargent 8504 is a Grade 1 narrow stile rim exit device supplied in a night latch function, meaning the outside key retracts the latch. The Detex 10 Advantex is a wide stile Grade 1 rim device and reaches the same result through outside trim selection, with 03C night latch trim available along with classroom and storeroom lever trim. The Detex 10 trims can be changed or re-keyed without taking the device off the door.
22) What finishes does the Detex Advantex 10 come in for matching other hardware in the building?
Eight finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 630 brushed stainless steel, and 693 black painted. Those are standard BHMA finish numbers, so 626 satin chrome levers elsewhere in the building pair conventionally with 630 or 628 here. All exposed surfaces are finished over stainless steel with a PVD process.
23) How hard is the Detex Advantex 10 to install on an existing door?
Door prep is minimal and the device ships with a patented mounting plate and strike locator system in place of paper templates, which is what usually causes strike misalignment on a rim device retrofit. Detex publishes installation instructions, a parts list, and a maintenance manual for the 10 Series, and the device is field sizeable and non-handed, so one unit covers either hand.
24) Is the Detex 10 Advantex suitable for an exterior opening that needs a weather or hurricane rated device?
The Detex 10 Advantex is not weatherized, though it can be ordered with a hurricane rating option and its exposed surfaces are finished over stainless steel with a PVD process. None of the comparable rim devices in this class, including the DORMA 9300 Series and the Sargent 2828, are offered as weatherized units, so for an exposed exterior opening the hurricane rated Detex 10 configuration is the one to specify.
