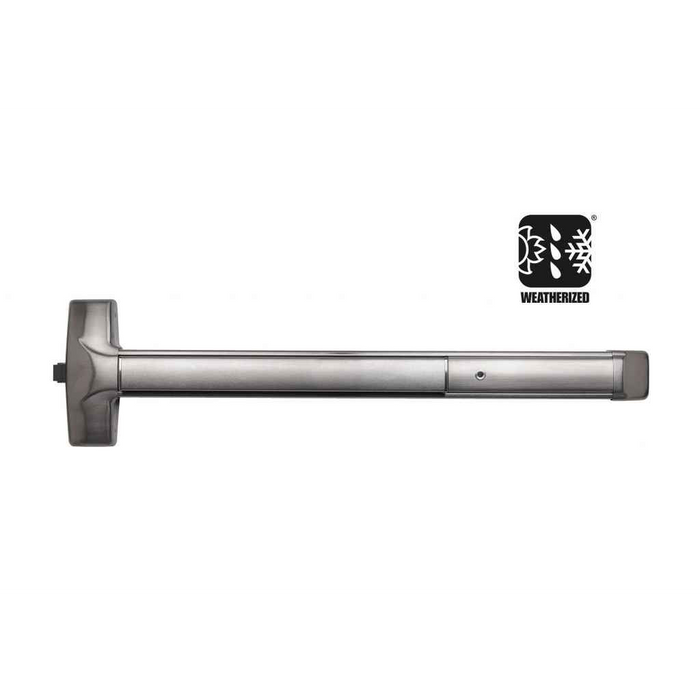

Detex Advantex Series 10xW Weatherized Wide Stile Extra Heavy Duty Rim Exit Device

Detex Advantex Series 10xW Weatherized Wide Stile Extra Heavy Duty Rim Exit Device

(No reviews yet) Write a Review

Model: 10W HD 693 99 36
From the 10xW Collection
$2,010.00
$1,151.79
Selected Finish is
Selected Outside Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,010.00
$1,151.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex Series 10xW Weatherized Wide Stile Extra Heavy Duty Rim Exit Device

Professional Weatherized Exit Device Solution

The Detex Advantex Series 10xW is a super-heavy-duty weatherized rim exit device engineered for single doors, gates, and double doors with mullions that are exposed directly to weather conditions. This Grade 1 UL listed panic and fire exit hardware features wide stile compatibility and has been tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing. The device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F Method 506.4 driving rain test, and MIL-STD 810F Method 509.4 salt fog test for superior environmental protection.

Professional Features & Benefits

  • Extra Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional reliability in high-use, high-abuse environments.
  • Weatherized Construction: All exposed surfaces finished over stainless steel with PVD environmentally-friendly finishing process, designed for direct weather exposure applications.
  • Wide Stile Compatibility: Engineered for wide stile door configurations with field sizeable design for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation of panic hardware available.
  • Heavy-Duty Components: Features stainless steel deadlocking Pullman-type latch bolt and heavy duty angled end cap that deflects damage away from device.
  • Environmental Compliance: Conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F Method 506.4 driving rain test, and MIL-STD 810F Method 509.4 salt fog test.
  • Flexible Operation: Non-handed design with 1/8 turn hex or cylinder dogging options for adaptable security configurations.
  • Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Collection: 10xW
  • Commercial/Residential: Commercial
  • Duty Level: Extra Heavy Duty
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 10xW
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile Type: Wide Stile
  • Subcategory: Exit Devices - Rim
  • Tags: detex 10 series, detex weatherized exit device
  • Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Weatherized: No
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Weatherized Construction

The 10xW Series features all exposed surfaces finished over stainless steel with PVD environmentally-friendly finishing process, specifically designed for doors and gates that are or may be exposed directly to weather. The device meets rigorous environmental testing standards including MIL-STD 810F Method 506.4 driving rain test and MIL-STD 810F Method 509.4 salt fog test for reliable outdoor performance.

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for over 1,000,000 life cycles. The 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable weatherized performance is essential.



Resources

Installation Instructions
Parts List
Door Templates
Installation Video

Product Specs

Subcategory:
Exit Devices - Rim
Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Weatherized:
No
Grade:
Grade 1
Stile Type:
Wide Stile
Duty Level:
Extra Heavy Duty
Wood Door Compatible:
No
Tags:
detex 10 series, detex weatherized exit device
Product Model:
10xW
Collection:
10xW
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 10W HD 693 99 36 – Frequently Asked Questions

1) Can I use the Detex Advantex 10xW on an exterior door that gets rained on directly?
That's exactly what the 10xW was built for. It's a weatherized rim exit device for single doors, gates, and pairs with a mullion that sit exposed to weather. All exposed surfaces are finished over stainless steel using a PVD process, and it's been run through UL1034 Section 34 (temperature) and Section 54 (dust), plus MIL-STD 810F Method 506.4 driving rain and Method 509.4 salt fog. Coastal and salt-air openings are the usual reason people specify it over a standard interior rim device.
2) Will a Detex 10xW fit a narrow stile aluminum storefront door?
No. The 10xW is a wide stile device, so it needs the wider stile of a hollow metal or wide stile aluminum door. For a narrow stile storefront leaf, look at a narrow stile rim device instead, such as the Adams Rite 8700 Series or the TownSteel ED3700. If the storefront opening is also fire rated, the Adams Rite 3700 Series is the fire rated narrow stile version.
3) Do I have to specify handing when I order a Detex 10xW?
Yes, handing is a required choice: Right Hand Reverse or Left Hand Reverse. Those are the two handings an outswinging egress door comes in, so stand outside the opening and note which side the hinges are on before ordering. The device itself is described as non-handed in operation, but the order still has to carry one of the two handing selections.
4) Is the Detex 10xW available fire rated, and can I still dog it?
Fire rated is one of the four rating options: Standard, F fire rated, H hurricane, and HF hurricane plus fire rated. Note the practical consequence, fire rated exit hardware cannot be mechanically dogged, so on an F or HF opening you order the Less Dogging build rather than hex or cylinder dogging. On a non-rated Standard or H device, 1/8 turn hex dogging or cylinder dogging are both available.
5) Does the Detex 10xW come in a hurricane rated version for a coastal building?
Yes. The rating choice includes H for hurricane and HF for hurricane combined with fire rated, alongside Standard and F. Paired with the salt fog and driving rain testing, that H or HF selection is the usual specification for coastal exterior egress doors.
6) What trim options can I get with the Detex Advantex 10xW rim device?
Five outside trim choices: 01C blank plate, 03C night latch trim, 08D classroom lever, 09D storeroom lever, or Exit Only with no outside trim at all. Pick by how the door is used. Exit Only or 01C for a door nobody re-enters through, 03C night latch where a key should retract the latch for entry, 09D storeroom where the lever is always locked from outside and a key unlocks it, 08D classroom where the outside lever is locked and unlocked by key.
7) Can I get a Detex 10xW with delayed egress or an alarm built in?
Yes, the electrified option is part of the order and has five choices: None, EA hardwired electric alarm, EX request to exit signal switch, EE delayed egress, and ER EX electric latch retraction with request to exit switch. EE is the one for a controlled exit you want held for a timed delay; EX just sends a signal to the access control panel when the bar is pushed; ER EX pulls the latch in electrically so the door can be released remotely. EA and EE builds need power run to the door, so plan the transfer hinge or power transfer as part of the install.
8) Will the Detex 10xW work on a pair of doors?
On a pair, yes, but only with a mullion. The 10xW is a rim device, so its latch throws into a strike at the vertical edge of the opening. On a pair that means a removable or fixed mullion has to be in the middle for the latch to catch. It also covers single doors and gates. If you have a pair and cannot use a mullion because the clear opening has to stay unobstructed, a vertical rod device is the type to look at instead, such as the Hager 4501 concealed vertical rod with a wide stile pushpad.
9) The exit device is going on a wood door. Can I use the Detex Advantex 10xW?
No. The Detex Advantex 10xW is not wood door compatible. Among rim exit devices that are, Adams Rite 8700 Series in a 30 inch narrow stile device is Grade 1 and wood door compatible, and the Adams Rite 3700 Series 30 inch narrow stile device is Grade 1, fire rated, and wood door compatible. Both are narrow stile, so verify the wood door's stile width and thickness against the device before ordering.
10) What is the closest wide stile Grade 1 rim exit device to the Detex Advantex 10xW for an interior opening that never sees weather?
For a dry interior opening, the Von Duprin 22 Series 22-3FT is a wide stile pushpad rim exit device rated Grade 1, non-handed, in a 36 inch device for 1-3/4 inch doors. Corbin Russwin ED5200 is another wide stile Grade 1 rim device at 36 inches for 1-3/4 inch doors, with an exit only or accepts-trim function. Both cover the same wide stile rim application as the Detex 10xW, which is a Grade 1 wide stile rim device offered in 36 inch and 48 inch sizes. What the 10xW adds is construction finished over stainless steel with a PVD process and testing to UL1034 temperature and dust sections plus MIL-STD 810F driving rain and salt fog, which is what you specify when the door or gate is exposed directly to weather.
11) The door has a narrow aluminum stile, so a wide stile exit device will not fit. What Grade 1 rim device fits instead?
Narrow stile aluminum doors need a device built for that stile. Grade 1 narrow stile rim options include the Falcon 19 Series 19-R exit only in 36 inches for 1-3/4 inch doors, the Corbin Russwin ED4200 at 36 inches for 1-3/4 inch doors with exit only or accepts trim, and the TownSteel ED3700 at 36 inches, heavy duty Grade 1 narrow stile. Adams Rite 8800 Series in a 30 inch device is also narrow stile Grade 1 and covers doors 1-3/4 inch to 2-1/4 inch thick. The Detex Advantex 10xW is a wide stile device, so it is the wrong fit for a narrow stile opening regardless of its ratings.
12) I need a fire rated rim exit device on a labeled opening. What fire rated devices are there besides the Detex 10xW F option?
The Detex Advantex 10xW is ordered with a rating selection that includes F for fire rated, alongside standard, H for hurricane, and HF for hurricane and fire rated. If you are sourcing a different brand for a labeled opening, fire rated rim devices include the Dexter ED1000 Series fire rated Grade 1 rim device, the Marks USA M9900F in 36 inch and 48 inch exit only versions with a panic protector end cap, the Orca OED85 Series 36 inch fire rated rim device exit only, the Arrow FS1250 fire rated 32 inch rim device for 1-3/4 inch doors, and the Adams Rite 3700 Series 30 inch fire rated narrow stile rim device, which is Grade 1 and wood door compatible. Fire rated devices are supplied without dogging, so confirm your hold-open plan before ordering.
13) I need electric latch retraction and a request to exit signal. Is the Detex 10xW the right device, or should I look at another brand?
The Detex Advantex 10xW is ordered with an electrified option selection that covers EA hardwired electric alarm, EX request to exit switch, EE delayed egress, and ER EX electric latch retraction with a request to exit switch, so a single 10xW part number can carry both latch retraction and the RX signal. Other electrified rim devices include the Sargent 12-8810-LTRIM, a Grade 1 fire rated wide stile rim device with RX and motorized electric latch retraction, and the SDC S6136 Spectra S6000 Series 36 inch electrified rim device with a 4 inch wide stile for doors 1-3/4 inch to 2 inch thick. Dormakaba also offers an electrified 36 inch rim device with 4908A classroom trim.
14) A supplier offered an SDC exit bar as a substitute for a Detex rim exit device. Are they the same thing?
They are not the same class of hardware. The Detex Advantex 10xW is a rim exit device with a stainless steel deadlocking Pullman type latch bolt that latches into a strike. The SDC MSB550 Series 36 inch is a mechanical switch bar that releases an electromagnetic lock, and the SDC SureExit PSB560 Series 36 inch is a pressure sense bar with tri-failsafe technology; both are switch bars that signal a separate locking device rather than latching the door themselves. Securitron's EMB is an electromechanical exit bar for 2-1/4 inch doors. If the opening is secured by a maglock or an electrified bar, those are the correct parts; if the door needs its own latch and strike, you want a rim device such as the 10xW or a peer like the Von Duprin 22-3FT.
15) I need a 48 inch rim exit device for a wide leaf. Which devices cover that width?
The Detex Advantex 10xW is offered in 36 inch and 48 inch sizes. Other 48 inch rim devices include the Corbin Russwin ED3200, a Grade 1 48 inch crossbar wide stile device for 1-3/4 inch doors; the Dormakaba DORMA 9300 Series 48 inch wide stile exit only device, Grade 1 heavy duty, for doors 1-3/4 inch to 2-1/4 inch; the Marks USA M9900F 48 inch fire rated exit only device; the CRL Jackson 1095 Series 48 inch crossbar device; and the Cal-Royal 5500 48 inch push bar device at Grade 2. Sargent's 2828 and 3828 are Grade 1 reversible wide stile rim devices sized for 48 inch doors.
16) Is the Detex 10xW heavy duty enough for a high traffic school or stadium exit?
It's a Grade 1, extra heavy duty device tested past 1,000,000 cycles, twice the cycling Grade 1 UL testing calls for. The latch is a stainless steel deadlocking Pullman type, and the end cap is a heavy duty angled design that deflects impact away from the device, which is what matters on an abused exterior door. That combination is why it lands in schools, stadium gates, and industrial openings rather than a Grade 2 device.
17) What is a cheaper alternative to the Detex 10xW for an interior door that isn't exposed to weather?
If the opening is indoors, the weatherized construction on the 10xW is money you don't need to spend. For a wide stile interior rim device, the Von Duprin 22 Series is a Grade 1 wide stile pushpad device for 1-3/4 inch doors, the Corbin Russwin ED5200 is a Grade 1 wide stile rim device that accepts trim, and the BEST Precision 2101 is a 36 inch wide stile rim option. If budget matters more than grade, the Cal-Royal 5000 is a Grade 2 heavy duty wide touch bar device. None of those carry the 10xW's salt fog and driving rain testing, so keep the 10xW where the door actually faces the weather.
18) What finishes does the Detex Advantex 10xW come in for matching the rest of my building?
Eight BHMA finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 630 brushed stainless steel, and 693 black painted. For exterior doors on a fleet of buildings, 630 brushed stainless is the usual match since the device is already finished over stainless with a PVD process. If you're matching existing Detex hardware on other openings, order to the BHMA number rather than the color name, since 612 and 613 read very differently in daylight.
19) What's the difference between cylinder dogging and hex dogging on the Detex 10xW?
Hex dogging uses a hex key to hold the pushbar depressed so the door pushes free during business hours, which is fine when only staff carry the key. Cylinder dogging does the same thing but takes a mortise cylinder, so dogging is controlled by the building keyway and the same key system as the rest of the doors, which is what most property managers and institutional facilities want. Less Dogging is the third choice and is the one to order on fire rated builds. Cylinder dogging means you also have to source the cylinder, it isn't part of the device.
20) I only need a plain exit only push bar on an interior stair door. What is a simpler rim device than the Detex 10xW?
The Detex Advantex 10xW is an extra heavy duty Grade 1 device ordered with handing, dogging, rating, finish and outside trim selections, including an Exit Only trim choice. If the opening only needs a basic exit only bar, simpler wide stile rim devices include the Corbin Russwin ED2200 at 36 inches, Grade 1 exit only wide stile; the TownSteel ED1100 at 36 inches, heavy duty Grade 1 wide stile; the Imperial USA ED-501 at 36 inches, Grade 1 wide stile exit only; and the Hager 4701 Series 36 inch standard duty rim device with Grade 1 BHMA certification. None of those carry the 10xW's weather testing, so keep them on interior openings.
21) How does the Detex 10xW compare to a Grade 2 rim exit device like the Cal-Royal 5000?
The Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar and a Grade 2 chassis, listed as heavy duty, and the Cal-Royal 5500 is a 48 inch push bar rim device also at Grade 2 heavy duty. The Detex Advantex 10xW is Grade 1 and extra heavy duty, tested beyond 1,000,000 cycles, which is twice the cycling required for Grade 1 UL testing. If your spec or facility standard calls out ANSI/BHMA Grade 1, the Cal-Royal devices will not satisfy it; if the opening is moderate traffic and no grade is called out on the drawing, either chassis class covers a rim panic application.
22) Someone quoted a Hager 4501 concealed vertical rod device against a Detex 10xW rim device. Will it work in the same opening?
No, those prep differently. The Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod exit device with a wide stile pushpad, and the Hager 4601 Series 36 inch is a Grade 1 concealed vertical rod narrow stile device; concealed vertical rod devices latch top and bottom through rods inside the door and require a door prepped for them. The Detex Advantex 10xW is a rim device that latches into a surface strike on the frame. On a single door or a pair with a mullion, a rim device such as the 10xW or the Hager 4701 Series 36 inch rim device is the direct match; a CVR device is for a pair without a mullion where both leaves must be active.
23) I want a crossbar rim device rather than a push pad. What are the options next to the Detex 10xW?
The Detex Advantex 10xW is a push style rim device with an angled end cap that deflects damage away from the device. If the standard on the building is a crossbar, the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim exit device, wide stile, for 1-3/4 inch doors, and the CRL Jackson 1095 Series 48 inch is a crossbar rim panic device, wide stile, exit only. CRL Jackson also builds the 1095P in a paddle version and the 1295 Series as a non-handed push pad device for 1-3/4 inch doors, all wide stile, if you are matching a mixed set of storefront openings.
24) The opening needs a night latch function with a cylinder outside. What are my choices alongside the Detex 10xW 03C trim?
The Detex Advantex 10xW is ordered with an outside trim selection that includes 03C night latch trim, along with 01C blank plate, 08D classroom lever, 09D storeroom lever, and exit only. If you are matching a Sargent keying standard instead, the Sargent 8504 is a Grade 1 narrow design rim exit device in a night latch function. Note the 8504 is narrow stile while the 10xW is a wide stile device, so the stile on the door decides which one is usable.
25) I need hex key dogging so staff can hold the door in a push-open condition. Which devices offer it?
The Detex Advantex 10xW is ordered with a dogging selection of cylinder dogging, hex dogging, or less dogging, using a 1/8 turn hex or cylinder mechanism. Design Hardware also calls out dogging directly: the 1000R Series 33 inch is a heavy duty rim device with hex key dogging and the 2000R Series 33 inch is a standard duty rim device with hex key dogging. The Stanley Security QED200 Series is a Grade 1 heavy duty narrow stile rim device with hex-key dogging. Remember that dogging is not available on a fire rated opening, so specify less dogging where the door is labeled.
26) Our facility standard is a Grade 1 wide stile rim device across all exterior and interior exits. Which models let us standardize on one look?
Grade 1 wide stile rim devices in the set include the Detex Advantex 10xW, the Von Duprin 22-3FT at 36 inches for 1-3/4 inch doors, the Corbin Russwin ED5200 at 36 inches and ED2200 at 36 inches, the DORMA 8300 Series and the DORMA 9300 Series 48 inch, the TownSteel ED9700 and ED1100 at 36 inches, the Imperial USA ED-501 at 36 inches, and the Sargent 2828 and 3828 for 48 inch doors. Where the exit faces the weather directly, the 10xW is the one in that group carrying UL1034 temperature and dust section conformance plus MIL-STD 810F driving rain and salt fog testing, and it is offered in eight finishes from 605 polished brass through 630 brushed stainless and 693 black painted so the exterior openings can still match the interior set visually.
27) Do I need a template to install a Detex Advantex 10xW, or is one included?
The 10xW uses a patented mounting plate and strike locator system in place of a paper template, which is what makes the layout repeatable when you're doing a run of doors. Detex also publishes the installation instructions, parts list, maintenance manual, and door prep templates as PDFs, so a crew hanging several of these can pull the prep dimensions before the hardware arrives on site.
28) I need to replace a rim exit device on an exterior gate. Is the Detex 10xW a direct swap for what's there?
Whether it drops into the existing prep depends on what brand and series is on the gate now, and prep varies by manufacturer. What can be said is that the 10xW is intended for gates as well as doors, it's the wide stile version, and the mounting plate and strike locator system is used to set the new layout rather than reusing the old holes. Pull the door prep template for the 10 Series and check it against the existing prep before you take the old device off.
