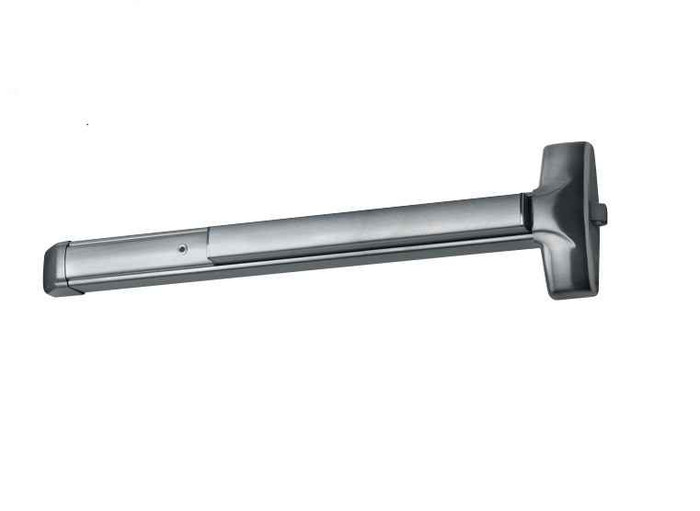

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Dummy Pull Trim

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Dummy Pull Trim

(No reviews yet) Write a Review

Model: 1002C-628-36
$2,175.00
$2,155.94
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,175.00
$2,155.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Rim Exit Device with Dummy Pull Trim

Professional Grade 1 Panic Hardware for High-Traffic Commercial Applications

The Detex Advantex 10 Series rim exit device delivers super-heavy-duty panic and fire exit hardware engineered for demanding commercial environments. This Grade 1 wide stile rim exit device features a patented mounting plate and strike locator system for precise installation, stainless steel deadlocking Pullman-type latch bolt, and field-sizeable design. Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing - this non-handed device provides reliable performance for single and double doors with mullions.

Professional Features & Benefits

  • Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional reliability in high-use, high-abuse environments.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation of panic hardware available.
  • Premium Construction: All exposed surfaces finished over stainless steel with PVD environmentally-friendly finishing process for long-lasting durability.
  • Wide Stile Compatibility: Specifically designed for wide stile door applications with field-sizeable design for installation flexibility.
  • Heavy-Duty Latch System: Stainless steel deadlocking Pullman-type latch bolt provides secure latching performance.
  • Damage Protection: Heavy duty angled end cap deflects damage away from device for extended service life.
  • Service-Friendly Design: Outside trims are easily changed or re-keyed without removing device from door for convenient maintenance.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Dummy Pull Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 1002C
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 10 Series exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing rated for over 1,000,000 life cycles. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications

Product Specs

Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
1002C
Product Function:
Dummy Pull Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 1002C-628-36 – Frequently Asked Questions

1) What does "Dummy Pull Trim" mean on the Detex 1002C, and can it be unlocked from the outside?
Dummy pull trim means the outside pull is fixed, non-functional hardware. It gives you something to grab to pull the door open when the device is dogged down, but it does not retract the latch and it is not keyed. Egress is from the inside push pad only. If you need key entry or a classroom/nightlatch function from the outside, you need a keyed trim version rather than the 1002C dummy pull configuration.
2) How do I secure a pair of doors with a Detex rim exit device?
Rim devices latch into a strike on the frame, so a pair of doors needs a removable mullion between the leaves, with one 1002C device on each leaf latching to the mullion. The Advantex 10 Series is stated for single doors and double doors with mullions. If you cannot have a mullion in the opening, a rim device is the wrong type for that pair and you want vertical rod hardware instead, such as a concealed vertical rod device like the Hager 4501 Series.
3) Do I have to specify handing when I order the Detex 1002C?
Yes. Even though the device chassis itself is non-handed, the order requires you to pick Right Hand Reverse or Left Hand Reverse, and both dogging and strike type are also required selections. You also choose device length, 36 inch or 48 inch, so match that to the door width.
4) Which dogging option should I pick on the Detex Advantex 10 Series?
Three choices: hex dogging, cylinder dogging, or less/no dogging. Hex key dogging is the standard commercial option and lets staff hold the pad down so the door pushes free during business hours. Cylinder dogging puts that under key control so only keyholders can dog it. Order less dogging when the door is fire rated, since mechanical dogging is not permitted on a fire door.
5) Is the Detex 1002C available fire rated or hurricane rated?
Yes, and you pick which. The Advantex 10 Series is offered non-rated, fire rated, hurricane rated, or hurricane and fire rated. Specify the rating up front because it cannot be changed in the field, and a fire rated build must be ordered less dogging.
6) Can I get the Detex Advantex 10 Series with delayed egress or a request-to-exit switch?
Yes. Electrified options on the Advantex 10 Series are delayed egress, electric dogging, hardwired electric alarm, and request-to-exit signal switch, or none for a straight mechanical device. Electric dogging lets an access control schedule free the door instead of someone dogging it by hand; RX gives your panel a signal every time the pad is pushed; delayed egress holds the door for the code-permitted delay before releasing.
7) The Detex 1002C will not work on my wood door - what rim exit device will?
The Detex 1002C is not wood door compatible. Among rim devices that are, the Adams Rite 8700 Series is a Grade 1 narrow stile rim device listed as wood door compatible, and the Adams Rite 3700 Series is the fire rated Grade 1 narrow stile version, also wood door compatible. Both are 30 inch devices with starwheel interlocking.
8) I need a rim exit device for a narrow stile aluminum storefront door - what should I use instead of the Detex 1002C?
The Detex 1002C is built for wide stile doors, so a narrow stile aluminum door needs a different chassis. Grade 1 narrow stile rim options include the Corbin Russwin ED4200 at 36 inches for 1-3/4 inch doors, the Falcon 19-R at 36 inches exit only, the TownSteel ED3700 and ED8900 at 36 inches, and the Adams Rite 8800 Series at 30 inches with a 1-3/4 to 2-1/4 inch door thickness range. The Adams Rite 3700 Series is the fire rated narrow stile counterpart.
9) What is the closest equivalent to the Detex 1002C wide stile rim exit device from another manufacturer?
The Detex 1002C is a Grade 1 wide stile rim exit device with dummy pull trim. The Von Duprin 22-3FT is also a Grade 1 wide stile pushpad rim exit device at 36 inches, non-handed, for 1-3/4 inch doors and not wood door compatible. The Sargent 12-8810-LTRIM is a Grade 1 fire rated wide stile rim device in the 8800 Series with a dummy function, which matches the Detex dummy pull trim arrangement most directly. Corbin Russwin ED5200 is another Grade 1 wide stile rim device at 36 inches for 1-3/4 inch doors.
10) Which products look like substitutes for the Detex 1002C rim exit device but are not?
Several devices sit in the same aisle without doing the same job. The Hager 4501 and 4601 are concealed vertical rod exit devices, not rim devices, so they require a top and bottom rod prep. The SDC MSB550 and SDC PSB560 are a mechanical switch bar and a pressure sense bar that release an electromagnetic lock rather than latch a door themselves, and the Securitron EMB is an electromechanical exit bar for 2-1/4 inch doors. The Dexter ED1500-EXTRD-SP is a 12 inch extension rod assembly for ED1500 devices, a part rather than a device. The Detex 1002C is a Grade 1 rim exit device with a Pullman-type latch bolt and surface or semi-mortise strike.
11) I need a fire rated wide stile rim exit device - how does the Detex 1002C compare to the alternatives?
The Detex Advantex 1002C can be ordered fire rated, hurricane rated, or both, in 36 and 48 inch sizes. Other fire rated rim devices include the Sargent 12-8810-LTRIM, a fire rated Grade 1 wide stile device with RX and MELR; the Marks USA M9900F in 36 and 48 inch; the Dexter ED1000 fire rated Grade 1 rim device; the Arrow FS1250 at 32 inches; and the Orca OED85 at 36 inches. Of that group, the Detex is the one that also offers a hurricane rated build.
12) What is the difference between the 99 surface strike and the 98 semi-mortise strike on the Detex exit device?
The 99 is a surface strike that mounts on the face of the frame stop with no cutting, which is the simpler retrofit when you are replacing an older device and want to avoid frame work. The 98 semi-mortise strike sets into the frame for a flatter, cleaner look and less projection into the opening, but the frame has to be prepped for it. Strike choice is a required selection on the order.
13) Is the Detex 1002C heavy duty enough for a school or stadium exit that gets abused daily?
That's the case it's built for. The Advantex 10 Series is Grade 1 and tested beyond 1,000,000 cycles, twice the cycling Grade 1 UL testing requires. The latch is a stainless steel deadlocking Pullman type, exposed surfaces are finished over stainless steel with a PVD process, and the angled end cap pushes impact damage away from the device. Compared with a Grade 2 option like the Cal-Royal 5000, that's a step up in rated duty.
14) I need to match existing hardware finishes across a building. What finishes does the Detex Advantex 10 Series come in?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless steel, 630 brushed stainless steel, 693 black painted, and 695 dark bronze painted. 630 and 628 are the usual matches for existing commercial openings; 693 and 695 are painted rather than plated.
15) Can one Detex 1002C device cover both a 36 inch and a 42 inch door?
The device is field sizeable, and it comes in 36 inch and 48 inch lengths. Order the 48 inch for doors wider than what the 36 inch covers and size it down on site rather than ordering a mismatched length. That field-sizing plus the patented mounting plate and strike locator system, which replaces paper templates, is what keeps the install accurate when you're cutting to fit.
16) What is a comparable Grade 1 wide stile rim exit device if the Detex Advantex is not the right fit?
Among wide stile Grade 1 rim devices, the Von Duprin 22-3FT is a 36 inch non-handed push pad device for 1-3/4 inch doors, the Corbin Russwin ED5200 is a 36 inch wide stile device that accepts trim, and the TownSteel ED9700 is a 36 inch heavy duty wide stile option. Where you need a fire rated wide stile device with RX and electric latch retraction, the Sargent 12-8810-LTRIM is fire rated. Unlike the Detex, none of those are listed with hurricane rating options.
17) Is there a lower-grade wide stile rim exit device if Grade 1 Detex is more than the opening needs?
The Detex Advantex 1002C is Grade 1 and tested beyond 1,000,000 cycles. Where a lighter chassis suits the traffic, the Cal-Royal 5000 is a 36 inch wide rim device with a touch bar and a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch Grade 2 push bar device; both are listed heavy duty. The Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging, and the Hager 4701 is a standard duty rim device at 36 inches.
18) What is the difference between the Detex 1002C dummy pull trim device and an exit-only rim device?
The Detex 1002C is supplied with dummy pull trim, so there is an outside pull that does not retract the latch. Exit-only devices have no outside trim at all: the Corbin Russwin ED2200 at 36 inches, the Sargent 2828 and 3828 for 48 inch doors, the Marks USA M9900 at 36 inches, the Imperial USA ED-501 at 36 inches, and the Orca OED55 at 36 inches are all listed exit only. If the door needs the outside to unlock with a key instead, the Sargent 8504 is a night latch function rim device.
19) If I need electrified exit hardware, is the Detex 1002C or another rim device the right choice?
The Detex Advantex 1002C can be specified with delayed egress, electric dogging, a hardwired electric alarm, or a request-to-exit signal switch, on a Grade 1 wide stile chassis. For comparison, the SDC S6136 Spectra is a 36 inch electrified architectural rim device with a 4 inch wide stile for 1-3/4 to 2 inch doors, the Dormakaba E2103 is an electrified 36 inch rim device with 4908A classroom trim, and the Sargent 12-8810-LTRIM is a fire rated wide stile device supplied with RX and motor electric latch retraction.
20) I want a crossbar rim exit device rather than a push pad like the Detex 1002C - what are my options?
The Detex Advantex 1002C uses a push pad style wide stile chassis. For a crossbar look, the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar wide stile rim device for 1-3/4 inch doors, and the CRL Jackson 1095 Series is a 48 inch crossbar rim panic device in wide stile, exit only. CRL Jackson also offers the 1095P with a paddle and the 1295 non-handed push pad for 1-3/4 inch doors.
21) For standardizing exit hardware across a facility, which rim devices cover both 36 inch and 48 inch doors like the Detex 1002C?
The Detex Advantex 1002C is offered in 36 and 48 inch sizes and is field-sizeable, on one non-handed Grade 1 wide stile chassis. Among peers, Dexter ED1000 is listed in 3FT and 4FT Grade 1 versions, Marks USA M9900F comes in 36 and 48 inch, and Cal-Royal offers the A9800 at 36 inches and the A9820 at 48 inches. BEST Precision 5101 and BEST 2401 are non-handed universal designs.
22) Can outside trim be re-keyed on the Detex Advantex without pulling the device off the door?
Yes. Outside trims on the Advantex 10 Series are changed or re-keyed without removing the device from the door, which matters when a property manager rekeys a building or swaps a dummy pull for keyed trim later. Detex publishes an installation instruction sheet, parts list, and maintenance manual for the series to work from.
