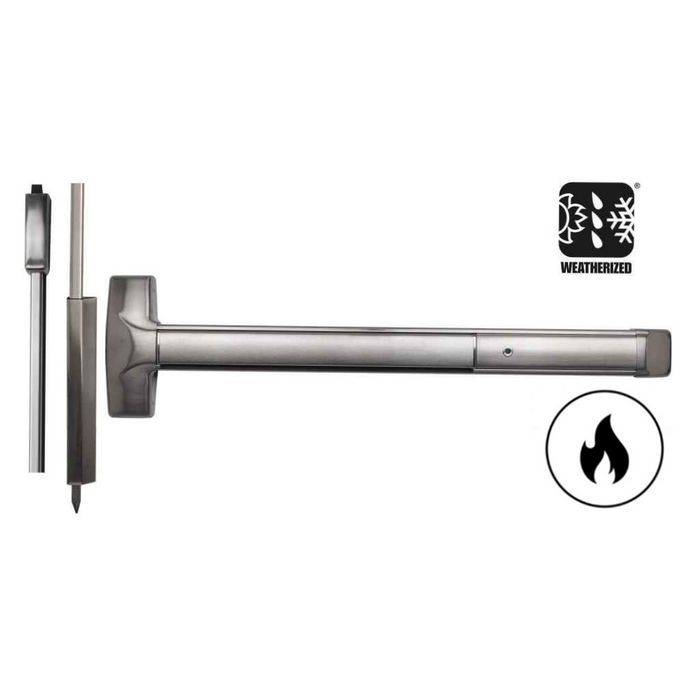

Detex Advantex Series 20xW Fire Rated Weatherized Surface Vertical Rod Exit Device for 36" Wide Stile Doors

Detex Advantex Series 20xW Fire Rated Weatherized Surface Vertical Rod Exit Device for 36" Wide Stile Doors

(No reviews yet) Write a Review

Model: F-20W HD 628 97 36X84
$2,918.00
$2,203.14
Selected Finish is
Selected Outside Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,918.00
$2,203.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex Series 20xW Fire Rated Weatherized Surface Vertical Rod Exit Device for 36" Wide Stile Doors

Super-Heavy-Duty Weatherized Exit Device for Outdoor Applications

The Detex Advantex Series 20xW is a super-heavy-duty surface vertical rod exit device engineered for 36" wide stile doors exposed to weather conditions. This fire-rated panic hardware features Grade 1 construction with stainless steel components and PVD finishing for superior durability. Designed for double doors or gates without mullions, the device includes patented mounting plate and strike locator system for precise installation and meets UL panic and fire exit hardware standards along with MIL-STD 810F environmental testing requirements.

Professional Features & Benefits

  • Wide Stile Compatibility: Specifically designed for 36" wide stile doors with field-reversible configuration for versatile installation options.
  • Super-Heavy-Duty Construction: Grade 1 rated device with stainless steel deadlocking top latch and hardened steel bottom drop bolt for demanding commercial applications.
  • Weatherized Design: Assembled using components resistant to temperature, dust, driving rain and salt fog, meeting MIL-STD 810F Method 506.4 and 509.4 testing standards.
  • Fire Safety Compliance: UL listed panic and fire exit hardware device providing reliable emergency egress in fire-rated door assemblies.
  • Advanced Installation System: Patented mounting plate and strike locator system replaces paper templates for fastest and most accurate installation available.
  • Enhanced Security Features: Stainless steel rod covers standard, heavy duty angled end cap deflects damage, and outside trims easily changed without device removal.
  • Environmental Durability: All exposed surfaces finished over stainless steel with PVD environmentally friendly process, fasteners made of stainless steel 316 material.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Duty Level: Super-Heavy-Duty
  • Fire Rating: Yes
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 20xW
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Vertical Rod
  • Series: 20 Series
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Weatherized: Yes

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, 36" wide stile dimensions, and handing as applicable to this weatherized vertical rod device.
  2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating paper template requirements.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for vertical rod configuration.
  4. Install all mounting hardware including top and bottom rod covers and ADA compliant ramped bottom bolt cover, securing the device per manufacturer torque specifications.
  5. Adjust operational components including 1/8 turn hex or cylinder dogging mechanism for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper panic function, fire rating compliance, and weatherized performance. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Building Emergency Exits
  • Educational Facility Fire Doors
  • Healthcare Institution Weatherized Exits
  • Industrial Facility Outdoor Access Points
  • Multi-Tenant Residential Fire Exits
  • Government Building Security Exits
  • Warehouse and Distribution Emergency Egress

Weatherized Construction

The 20xW Series features comprehensive weatherization with components specifically tested and rated for direct weather exposure. All assemblies resist temperature extremes, dust infiltration, driving rain, and salt fog corrosion per MIL-STD 810F testing protocols. Stainless steel 316 fasteners and PVD finishing over stainless steel provide long-term durability in harsh outdoor environments.

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with Grade 1 super-heavy-duty construction and comprehensive weatherization testing to MIL-STD 810F standards. The patented mounting system and stainless steel components ensure years of trouble-free service in high-use, high-abuse environments. Backed by a 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for demanding commercial applications where dependable emergency egress performance is essential.



Resources

Installation Instructions
Parts List
Door Templates

Product Specs

Series:
20 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Vertical Rod
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Grade:
Grade 1
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Stile Type:
Wide Stile
Weatherized:
Yes
Duty Level:
Super-Heavy-Duty
Product Model:
20xW
Fire Rating:
Yes
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex F-20W HD 628 97 36X84 – Frequently Asked Questions

1) Will a Detex Advantex 20xW exit device work on a pair of doors with no mullion?
That is what a surface vertical rod device is for. The Detex 20xW latches at the head and the threshold rather than into a center post, so it secures double doors or gates without a mullion. Each leaf gets its own device, and each one is ordered by handing (right hand reverse or left hand reverse).
2) Can the Detex 20xW go on an exterior door that gets rain and salt air?
That is the point of the W in 20xW. It is built from components resistant to temperature, dust, driving rain and salt fog, tested to MIL-STD 810F Methods 506.4 and 509.4. Exposed surfaces are finished over stainless steel using a PVD process and the fasteners are stainless steel 316. Coastal exits, loading docks and outdoor gate openings are the intended use.
3) Is the Detex 20xW panic device fire rated?
Yes. The 20xW is a UL listed panic and fire exit hardware device, Grade 1, for use in fire rated door assemblies. Note that the rating option is part of the order: you choose H (hurricane) or HF (hurricane and fire rated). If the opening is a fire door, the HF option is the one to specify.
4) Will the Detex 20xW fit a narrow stile aluminum storefront door?
No. The 20xW is a wide stile device sized for 36 inch wide doors. A narrow stile aluminum glass door does not have enough stile face to take it, and you would need a narrow stile vertical rod device instead. For a 36 inch wide stile opening it is the correct family.
5) What does less bottom rod mean on the Detex 20xW and should I order it?
Less bottom rod (LBR) deletes the bottom rod and drop bolt so the device latches only at the head. It is chosen where the bottom rod would be a trip hazard, would drag on an uneven or sloped threshold, or where floor conditions outdoors make a bottom strike impractical. Order it as the Less Bottom Rod: Yes option. With the bottom rod in place you get the hardened steel bottom drop bolt plus an ADA compliant ramped bottom bolt cover.
6) Is there a fire rated vertical rod exit device for a 36 inch by 84 inch door besides the Detex 20xW?
Two. The Delaney F9100 Series device (DLY-694300) is a Grade 1 fire rated heavy duty vertical rod device sized for a 36 inch by 84 inch door in an aluminum finish. The Marks USA M9900FVR is a fire rated vertical rod exit device for 36 inch by 84 inch doors, exit only and non-handed. The Detex 20xW is fire rated as well and adds weatherized construction and Grade 1 super-heavy-duty rating, and it is ordered by handing with right hand reverse and left hand reverse options.
7) Can I use the Cal-Royal 9860 in place of the Detex 20xW?
Only on an opening that does not require a fire rating and accepts Grade 2 hardware. The Cal-Royal 9860 is a heavy duty Grade 2 surface vertical rod device, exit only, and it is not fire rated. The Detex 20xW is Grade 1 super-heavy-duty, fire rated, and weatherized, so on a fire rated or exterior exposed opening the 9860 is not an equivalent.
8) What do I use on the 48 inch leaf of a pair when the 36 inch leaf gets a Detex 20xW?
The Detex 20xW is built for 36 inch wide stile doors. For a 48 inch leaf, the Marks USA M9900VR-48X84 is a 48 inch by 84 inch vertical rod panic exit device, exit only, and the Marks USA MARM9900F-VR is the 48 inch by 84 inch fire rated exit only version. Match the fire rated 48 inch device if the pair is in a rated assembly.
9) What electrified options can I get on a Detex Advantex 20 Series weatherized exit device?
Four, plus none: EA hardwired electric alarm, EX request-to-exit signal switch, EE delayed egress, and ER EX electric latch retraction with request-to-exit switch. Pick EE if you need a delayed egress exit under access control, ER EX if the door has to be remotely unlatched and monitored, EX alone if you only need to signal the access system that someone pushed the bar.
10) Can you hold the Detex 20xW unlatched during business hours?
Yes, if you order it with dogging. Three choices: cylinder dogging (keyed, so only a keyholder can dog it down), hex dogging (1/8 turn hex key), or less dogging. One caution: on a fire rated opening, mechanical dogging is not permitted, so HF fire rated configurations are the ones where less dogging applies.
11) What outside trim choices come with the Detex 20xW, and can I change trim later?
Four ways to order the outside: 01C blank plate, 03C night latch trim, 08D classroom lever trim, or exit only with no outside trim at all. If the door only needs to be an emergency exit, take exit only. Trim can be swapped later without pulling the device off the door.
12) Is the Detex 20xW handed, and can I flip it in the field?
Handing is specified on the order, right hand reverse or left hand reverse, and the device is field-reversible if you get the wrong one or the opening changes. Stand outside the door: an exit device on a door that swings out toward you is a reverse-bevel opening, which is why both options are the reverse hands.
13) I just need a fire rated vertical rod device on an interior 36 x 84 door, is the Detex 20xW overkill?
Probably, yes. The 20xW carries the weatherization package (salt fog, driving rain, stainless 316 fasteners) that an interior corridor door gets nothing out of. For a plain interior 36 by 84 fire door, the Marks USA M9900FVR fire rated vertical rod device or the Delaney F9100 Series Grade 1 fire rated vertical rod device cover the same opening without the weatherized build. Both are exit only, so if you need outside lever trim the Detex with 08D trim is still the answer.
14) I only need an exit only panic device with no outside trim - is the Detex 20xW more device than I need?
If no outside trim is required, the Marks USA M9900VR is a 36 inch by 84 inch vertical rod panic exit device built exit only and non-handed, and the Imperial USA ED-VR531 is a Grade 1 wide stile 36 inch surface vertical rod device also configured exit only. The Detex 20xW can be ordered exit only too, but it also offers 01C blank plate, 03C night latch trim and 08D classroom lever trim, so choose it when you may need outside access or the weatherized fire rated build.
15) What is the difference between the Delaney 9100 and 8100 Series vertical rod devices and the Detex 20xW?
The Delaney 9100 Series device (DLY-692301) is a Grade 1 heavy duty vertical rod device for a 36 inch by 84 inch door in a stainless steel finish and is not fire rated. The Delaney 8100 Series (DLY-8100-3684) is a Grade 1 vertical rod device for the same 36 inch by 84 inch door and is also not fire rated. The Detex 20xW is Grade 1 super-heavy-duty, fire rated and weatherized, and is offered in 84, 96 and 120 inch heights rather than a single 84 inch size.
16) What finishes does the Detex Advantex 20xW come in for matching other doors in a building?
Eight: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 630 brushed stainless steel and 693 black painted. For exterior runs, 630 and 628 are the usual match to storefront and hollow metal. Finishes are applied over stainless steel by a PVD process, and the rod covers are stainless as standard.
17) Do I need paper templates to lay out a Detex Advantex 20 Series install?
No. The 20xW ships with Detex's patented mounting plate and strike locator system, which you use to mark the hole locations on the door and frame directly instead of taping up a paper template. Detex also publishes door prep templates and a parts list, and the installation instructions cover rod adjustment and dogging setup.
18) Will the Detex 20xW hold up on a high abuse door that gets kicked and slammed?
It is built for that. Super-heavy-duty Grade 1 construction with a stainless steel deadlocking top latch, hardened steel bottom drop bolt, stainless rod covers standard, and a heavy duty angled end cap that deflects impact rather than taking it square. Typical placements are warehouse and distribution egress, industrial outdoor access points and school exits.
