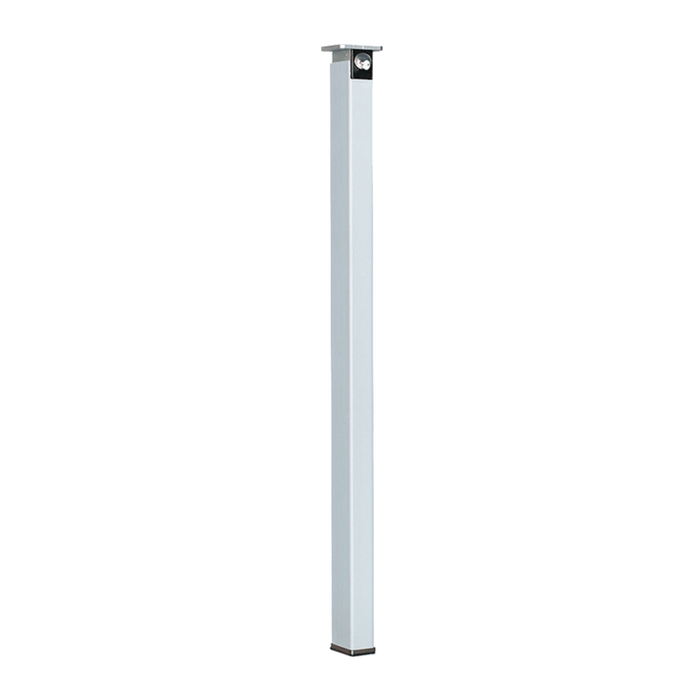

Detex 90 Series Keyed Removable Mullion for Rim Exit Devices

Detex 90 Series Keyed Removable Mullion for Rim Exit Devices

(No reviews yet) Write a Review

Model: 90KR X 7FT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,116.00
$680.52
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex 90 Series Keyed Removable Mullion for Rim Exit Devices

Professional Removable Mullion Solution for Double Door Applications

The Detex 90 Series Keyed Removable Mullion provides a durable, low-cost solution designed specifically for use with rim exit devices on standard and fire rated pairs of doors. This innovative mullion features a unique latching head design that allows removal in seconds with one key turn and easy snap-back installation without requiring the key. The cylinder is strategically located inside the building to prevent tampering, making it ideal for commercial applications requiring flexible access control.

Professional Features & Benefits

  • Quick Removal System: Mullion can be removed in seconds with one key turn and easily snaps back into place without needing the key for maximum operational efficiency.
  • Tamper-Resistant Design: Cylinder located inside the building prevents unauthorized tampering and maintains security integrity.
  • Fire Rated Compatibility: Designed for use with both standard and fire rated pairs of doors for versatile installation options.
  • Easy Retrofit Application: Simple installation process allows for quick adaptation to existing double door configurations.
  • Low-Profile Design: Small profile base plate prevents interference when moving objects through doorway, maintaining clear passage.
  • Universal Double Door Compatibility: Easily adapted to any double door application for flexible use across various commercial settings.
  • Heavy-Duty Construction: Very durable design engineered for long-term reliability in high-traffic commercial environments.
  • Rim Exit Device Integration: Specifically designed for use with rim exit devices to ensure proper compatibility and performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 90KR
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Series: 90 Series
  • Subcategory: Mullions
  • Tags: keyed removable mullion, detex 90kr

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex 90 Series mullions deliver professional-grade reliability with very durable construction designed for demanding commercial applications. The unique latching head design and tamper-resistant cylinder placement demonstrate Detex’s commitment to innovative security solutions. Engineered for demanding commercial applications where dependable performance and flexible access control are essential.



Manufacturer Resources

Installation Instructions
Installation Templates
Installation Video

Manufacturer Resources

Installation Instructions

Product Specs

Subcategory:
Mullions
Series:
90 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trim
Commercial/Residential:
Commercial
Tags:
keyed removable mullion, detex 90kr
Product Model:
90KR
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 90KR X 7FT – Frequently Asked Questions

1) How do I secure a pair of doors with rim exit devices when there's no center mullion in the frame?
A removable mullion is the standard answer, and the Detex 90 Series 90KR is built for exactly that: it drops into the opening between a pair of doors so both leaves can run rim exit devices instead of surface or concealed vertical rods. The mullion carries the strikes, so each door latches into it rather than into the head and threshold. When you need the full clear opening for moving equipment or furniture, one key turn releases the mullion and it lifts out in seconds. It snaps back into place without the key.
2) Can I add a Detex 90KR mullion to a pair of doors that's already installed?
Yes, this is a retrofit part. The 90KR adapts to existing double door openings and mounts to the frame head and floor, so you're not replacing the doors or the frame. What you do need is rim exit devices on both leaves; if the pair currently runs vertical rod devices, those come off and get replaced with rim devices before the mullion does you any good. Detex publishes door prep templates and installation instructions for the 90KR, so mark the head and floor from the template rather than eyeballing it.
3) What door heights does the Detex 90 Series keyed removable mullion come in?
Three heights are offered on the 90KR: 7 foot, 8 foot, and 10 foot. Order by the height of the opening the mullion has to span, not the door leaf width. Get this wrong and the mullion either won't reach the head or won't fit the frame at all, so measure the frame opening before you order.
4) Does the Detex 90KR mullion come with a cylinder?
No cylinder is included with the 90KR. You supply a rim cylinder to match the keyway you're already running in the building, which is what lets the mullion key into an existing master system. Budget for that cylinder as a separate line when you order the mullion.
5) Is a lever trim an alternative to a Detex 90KR keyed removable mullion on a pair of doors?
No - they solve different problems and are often installed together. The Detex 90KR is a keyed removable mullion for rim exit devices on standard and fire rated pairs of doors; it is the vertical post between the two leaves that gives each rim device something to latch into, and it comes out in seconds with one key turn to open the full width for moving equipment. A lever trim such as the Deltana LTED60LST, a storeroom function lever trim for exit device 60, mounts on the door itself and controls whether someone outside can retract the latch. Removing a lever trim does not widen the opening, and adding a mullion does not give you outside entry. On a pair that needs both keyed outside entry and a clear opening for deliveries, you specify the mullion and the door trim separately.
6) The mullion cylinder faces inside the building - what do I add if I need keyed entry from the outside of the pair?
The Detex 90KR places its cylinder inside the building so the mullion cannot be tampered with from the exterior; that key controls removal of the mullion, not entry through the doors. For keyed access from outside, the entry function lives on the door trim. The Corbin Russwin K157ET is a Grade 1 key only trim for ED2200/ED2400 exit devices with rose, classroom function, heavy duty. The Arrow SRX87 is a classroom function exit device trim with a Sierra lever and rose for S1150/S1250/ED910/PEC910 series devices, for 1-3/4 inch doors. Match the trim to the rim device already on the leaf; the 90KR mullion stays in the frame line regardless of which trim you choose.
7) Where does the key cylinder sit on a Detex removable mullion, inside or outside?
Inside the building. That's deliberate on the 90KR: with no cylinder exposed on the exterior face, there's nothing for someone outside to attack or pick to pull the mullion out of the opening. It also means removal is a staff or maintenance operation, not something anyone can do from the parking lot. Worth knowing if your security plan assumed you could unlock it from outside for a delivery.
8) Is a removable mullion the right choice, or should I use vertical rod exit devices on my pair of doors?
It comes down to how often you need the full opening and what you want to maintain. A mullion like the 90KR lets both leaves use rim devices, which are the simplest exit device to install and adjust, and it gives each door a solid strike point. The trade is a post standing in the middle of the opening, which you have to key out and lift when something wide comes through. Vertical rod devices leave the opening permanently clear but put rods, top latches and bottom latches on both doors, all of which need periodic adjustment. High-traffic openings that rarely need wide access favor the mullion. Loading doors and openings that move equipment daily usually don't.
9) Does a Detex removable mullion replace the exit device trim on my doors?
No, and this is a common mix-up when ordering. The 90KR is the vertical post between the two leaves, not the lever, pull or plate on the door face. If what you actually need is the outside trim for a rim device, that's a different part entirely, and it's device-specific: the Von Duprin 379L-BE is blank escutcheon trim for 55 Series rim devices, the Corbin Russwin K157ET is key-only trim for ED2200 and ED2400 devices, and the Sargent 814 PSB is a nightlatch pull for 80 Series. Trim has to match the device series it mounts to. The mullion doesn't care which brand of rim device you run.
10) Do I need to key the Detex 90KR mullion to match the rest of my building?
You can, and that's the usual approach on a fleet of openings. Because the 90KR takes a standard rim cylinder that you supply separately, you specify the keyway and keying when you order the cylinder, not the mullion. Order it in the same keyway as your other exteriors and one key handles the mullion along with everything else. Same mullion part number regardless of what keyway you land on.
11) We want code entry on a double door instead of carrying keys - does that replace the removable mullion?
No. Credential entry is a trim decision and the mullion is a frame decision. The Detex 90KR remains the removable post that lets rim exit devices latch on a pair and then comes out with one key turn when you need the full opening. For the entry side, the BEST EXZ is an EZ Series electronic keypad exit device trim with key override, the Dormakaba E-Plex E5010 is a Grade 1 electronic push button exit device lever trim with key override for doors 1-3/8 inch to 2-1/4 inch, and the Lockey 285P is a keyless mechanical panic trim with lever handle for doors 1 3/16 inch to 2 inch. Any of those mounts to the leaf while the 90KR handles the center of the opening.
12) The pair is exit only - no outside entry at all. Do I still need the Detex 90KR, or is a blank plate enough?
Those cover different halves of the opening. A blank trim - the Sargent 802 blank plate exit device trim with GTB design, Grade 1, PE80 Series, or the Von Duprin 379L-BE blank escutcheon trim for 55 Series rim exit devices, Grade 1 heavy duty - closes off the outside of the leaf so there is no way in, and that is what makes the opening exit only. The Detex 90KR is the removable mullion the rim devices latch into on a pair of standard or fire rated doors, and it is what you pull with one key turn when a wide load has to come through. An exit only pair with rim devices typically uses both: blank trim on each leaf, mullion in the center.
13) Will a pull handle or nightlatch pull on the doors give me the same thing as a removable mullion?
No. The Sargent 862 is a Grade 1 offset pull handle for exit devices in the P800 Series and the Sargent 814 PSB is a heavy duty night latch pull exit device trim in the 80 Series; both are grabbed and pulled at the leaf, and the nightlatch version lets a key retract the latch for entry. Neither one affects the center of a pair. The Detex 90KR is what stands between the two leaves so rim devices have a latching point, with a small profile base plate so it does not catch objects moving through the doorway, and it snaps back into place without the key after removal. If your complaint is that the center post gets in the way of carts and freight, the mullion is the part that addresses it.
14) Our pair uses a wide stile rim device with electric latch retraction - is the Detex 90KR the right mullion, or do we need something different?
The 90KR is built for rim exit devices on double doors and adapts to any double door application, so a wide stile rim device such as the ACSI ED4200-W036, a Corbin Russwin ED4000 Series rim exit device with electric latch retraction at 24 volt AC/DC, Grade 1 wide stile, latches into it the same way a mechanical rim device does. What changes with electric latch retraction is the power path, not the mullion: the mullion still carries the strike side and still comes out with one key turn. Order the 90KR by door height - 7ft, 8ft and 10ft are the sizes offered - and note that the rim cylinder is not included.
15) Will the mullion base plate get in the way when we roll carts or equipment through the doorway?
The 90KR uses a small profile base plate for that reason. The floor attachment stays low and tight to the threshold so it doesn't catch a cart wheel or a pallet jack when the mullion is in place, and with the mullion removed you have the full clear opening.
16) Is the Detex 90KR mullion strong enough for a high-traffic commercial entrance?
It's a commercial-rated part, built heavy duty for high-traffic settings, and the mullion takes the latching load from both leaves so the doors themselves aren't fighting each other. Detex specifies it for office buildings, schools, healthcare, retail, warehouses, multi-tenant residential and government facilities. It is not a residential product.
17) What is the difference between the Detex 90KR and a dummy or passage trim when the doors just need to push open?
A dummy or passage trim gives a fixed or free pull on the outside of a leaf - the Corbin Russwin x650ET is a Grade 1 heavy duty dummy lever trim with rose for ED7000 Series exit devices, and the Deltana LTED80LP is a passage function lever trim for exit device 80. Those decide how a hand operates one door. The Detex 90KR decides what happens in the middle of the pair: it is the removable mullion the rim devices strike against, with a heavy duty build for high traffic commercial openings and a latching head that releases with a single key turn. Doors that push open freely from inside still need a latching point at the center when they carry rim devices, which is the job the mullion does.
