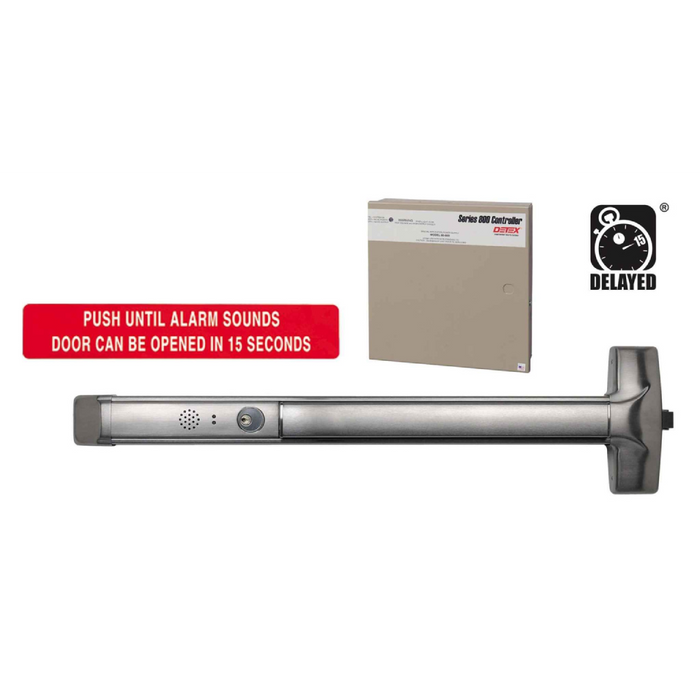

Detex Advantex 10EE Series Wide Stile Rim Exit Device with Delayed Egress Alarm and Power Supply
Super-Heavy-Duty Panic and Fire Exit Hardware Solution
The Detex Advantex 10EE Series rim exit device delivers super-heavy-duty panic and fire exit hardware performance for single and double doors with mullions. This Grade 1 certified device features a patented mounting plate and strike locator system for precise installation, stainless steel deadlocking Pullman-type latch bolt construction, and integrated delayed egress alarm functionality with included power supply. All exposed surfaces are finished over stainless steel with environmentally-friendly PVD coating for exceptional durability in demanding commercial applications.
Professional Features & Benefits
- Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional reliability in high-traffic applications.
- Delayed Egress Compliance: Integrated delayed egress alarm system with included power supply ensures code compliance for controlled access applications.
- Precision Installation System: Patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
- Premium Construction: Stainless steel deadlocking Pullman-type latch bolt provides secure, reliable latching performance.
- Environmentally-Friendly Finish: All exposed surfaces finished over stainless steel with PVD coating for superior corrosion resistance and appearance retention.
- Versatile Configuration: Non-handed design with field sizeable capability accommodates various door configurations and installation requirements.
- Wide Stile Compatibility: Specifically designed for wide stile door applications in commercial environments.
- Comprehensive Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.
Technical Specifications
- Commercial/Residential: Commercial
- Grade: Grade 1
- Product Category: Exit Devices and Trim
- Product Function: Delayed Egrees Alarm Power Supply Included
- Product Group: Exit Devices and Trim
- Product Model: 10EE
- Product Subgroup: Exit Devices - Rim
- Product Type: Exit Devices - Rim
- Series: 10 Series
- Stile: Wide
- Stile Type: Wide Stile
- Subcategory: Advantex Series
- Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
- Wood Door Compatible: No
Installation & Operation
- Verify electrical requirements for delayed egress alarm system and confirm power supply compatibility before proceeding.
- Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
- Mount the unit using the patented mounting plate and strike locator system ensuring proper alignment for wide stile door applications.
- Route and connect wiring for delayed egress alarm system according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
- Configure delayed egress operational settings per application requirements and local code compliance.
- Restore power and test all functions including normal operation, delayed egress timing, alarm functions, and integration with connected systems.
- Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.
Professional Applications
- Commercial Building Security Systems
- Healthcare Facility Access Control
- Educational Institution Safety Systems
- Retail Loss Prevention
- Industrial Facility Monitoring
- Emergency Exit Compliance
- Government and Municipal Buildings
Delayed Egress Compliance
The integrated delayed egress alarm system provides controlled access functionality while maintaining emergency egress capability. The included power supply ensures reliable operation of the delayed egress timing and alarm functions, meeting code requirements for applications requiring controlled access with emergency override capabilities.
Why Choose Detex Quality?
Detex Advantex exit devices deliver professional-grade reliability with stainless steel construction tested beyond 1,000,000 cycles for exceptional durability. The comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides added confidence in demanding commercial applications. Engineered with patented installation systems and Grade 1 certification, Detex products ensure dependable performance where safety and security are essential.
ResourcesInstallation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications
Manufacturer Resources
Installation Instructions
Product Specs
- Series:
- 10 Series
- Subcategory:
- Advantex Series
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Devices - Rim
- Product Type:
- Exit Devices - Rim
- Commercial/Residential:
- Commercial
- Grade:
- Grade 1
- Stile:
- Wide
- Warranty:
- 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
- Stile Type:
- Wide Stile
- Wood Door Compatible:
- No
- Product Model:
- 10EE
- Product Function:
- Delayed Egrees Alarm Power Supply Included
- Product Category:
- Exit Devices and Trim
- Department:
- Door Hardware
