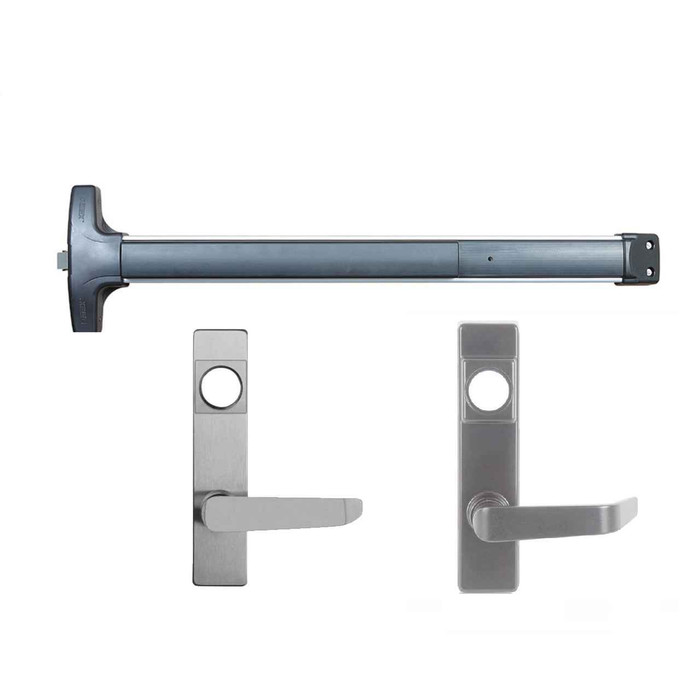

Detex V40 Series Wide Stile Rim Exit Device with Lever Trim - Grade 1 Commercial Exit Hardware

Detex V40 Series Wide Stile Rim Exit Device with Lever Trim - Grade 1 Commercial Exit Hardware

(No reviews yet) Write a Review

Model: V4009BN HD 628 99 36
$902.00
$631.40
Selected Finish is
Selected Outside Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$902.00
$631.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex V40 Series Wide Stile Rim Exit Device with Lever Trim - Grade 1 Commercial Exit Hardware

Professional Grade 1 Panic and Fire Exit Hardware Solution

The Detex V40 Series rim exit device delivers Grade 1 panic and fire exit hardware performance at an economical price point. This wide stile configuration features a patented mounting plate and strike locator system for precise installation, with a stainless steel 3/4" deadlocking Pullman-type latch bolt that withstands over 1400 pounds of static pull force. The heavy-duty ribbed aluminum rail extrusion and high impact ABS construction provide exceptional durability for demanding commercial applications.

Professional Features & Benefits

  • Superior Security Performance: Withstands over 1400 pounds of static pull force with stainless steel 3/4" deadlocking Pullman-type latch bolt for enhanced security protection.
  • Grade 1 Certification: Meets Grade 1 panic and fire exit hardware standards for commercial applications requiring the highest performance level.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation available.
  • Heavy-Duty Construction: Ribbed aluminum rail extrusion with high impact ABS and anodized surfaces for long-term durability in high-traffic environments.
  • Wide Stile Compatibility: Designed for wide stile doors with field-sizeable configuration to accommodate various door preparations.
  • Versatile Door Coverage: Covers 161 door prep with non-handed design suitable for single and double doors with mullions.
  • Modular Trim System: Accepts a variety of outside trims and functions with easy trim changes or rekeying without removing device from door.
  • Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Device Only - Exit Only
  • Product Group: Exit Devices and Trim
  • Product Model: V4009BN/09D2W
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: V40 Series
  • Stile Type: Wide Stile
  • Subcategory: Exit Devices - Rim
  • Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex V40 Series exit devices deliver professional-grade reliability with heavy-duty ribbed aluminum construction and stainless steel latch components rated to withstand over 1400 pounds of static pull force. The 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty demonstrates confidence in long-term performance. Engineered for demanding commercial applications where dependable Grade 1 performance and easy installation are essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video

Product Specs

Subcategory:
Exit Devices - Rim
Series:
V40 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
V4009BN/09D2W
Product Function:
Device Only - Exit Only
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex V4009BN HD 628 99 36 – Frequently Asked Questions

1) Will the Detex V40 rim exit device work on a wood door?
No. The V40 Series is not wood door compatible, so it should be specified for hollow metal or aluminum openings only. If the opening is a wood door, look at a rim device rated for wood, such as the Adams Rite 3700 Series fire-rated narrow stile rim device or the Adams Rite 8700 Series, both of which are listed as wood door compatible.
2) Can I use a Detex V40 rim device on a pair of doors?
Yes, with a mullion. The V40 is non-handed and suited to single doors and double doors fitted with a mullion, because a rim device latches into a strike on the frame or mullion rather than at the head and sill. If you have a pair with no mullion and cannot add one, you need a vertical rod device instead, such as the Hager 4501 concealed vertical rod.
3) Is the Detex V40 fire rated, and how do I order it that way?
Rating is a choice you make when ordering. The V40 comes as Standard, F for fire rated, H for hurricane, or HF for hurricane and fire rated. Fire rated devices are supplied without dogging since a fire door latch must relatch on every swing, so match the rating to the door's label before you commit.
4) What dogging options does the Detex V40 offer for a door that needs to stay push-pull during business hours?
Three choices: cylinder dogging, hex key dogging, or less dogging. Cylinder dogging lets staff hold the pad down with a key so the door pushes free during open hours; hex dogging does the same with an Allen wrench and is the lower cost route. Less dogging is what you take on a fire rated opening.
5) What electrified options can I get on the Detex V40 exit device?
Three, plus a plain mechanical version. EA is a hardwired electric local alarm, EB is an alarm with battery power for openings with no power run to the door, and EE is delayed egress for controlled exits. Delayed egress is code-restricted by occupancy, so confirm the authority having jurisdiction allows it on that door.
6) What outside trim comes with the V4009BN/09D2W and does handing matter?
The model covers two storeroom lever trims: 09BN narrow lever trim and 09D2W wide lever trim. Both are storeroom function, active by key and locked when the key is removed. The device itself is non-handed, but if you select the 09BN narrow trim you must call out right hand reverse or left hand reverse; the wide 09D2W trim does not require a hand.
7) My door is an aluminum storefront with a narrow stile. What rim exit device should I use instead of the Detex V40?
The Detex V40 is built for wide stile doors, so a narrow stile aluminum storefront needs a different device. Narrow stile Grade 1 rim options include the Adams Rite 8800 Series 30 inch, which covers 1-3/4 inch to 2-1/4 inch door thickness, the Corbin Russwin ED4200 36 inch narrow stile for 1-3/4 inch doors, the Falcon 19-R 36 inch narrow stile exit only, and the TownSteel ED3700 36 inch narrow stile. Confirm your stile width against the device before ordering.
8) I need a fire rated rim exit device for a wide stile opening. Does the Detex V40 cover that, and what else does?
The Detex V40 is offered with an F fire rated option as well as standard, H hurricane, and HF hurricane plus fire rated builds, so a fire rated V40 is available. If you want an alternative, the Sargent 12-8810 is a fire rated Grade 1 wide stile rim device, the Marks USA M9900F is a fire rated rim device in 36 inch and 48 inch exit only versions, and the Dexter ED1000-R-F-EO is a Grade 1 fire rated rim device.
9) What is the closest Grade 1 wide stile rim exit device to the Detex V40 if I need a direct equivalent from another brand?
The Detex V40 is a Grade 1 wide stile rim exit device offered in 36 inch and 48 inch sizes. The closest direct peers are the Von Duprin 22-3FT, a Grade 1 non-handed wide stile pushpad rim device at 36 inches for 1-3/4 inch doors, and the Corbin Russwin ED5200, a Grade 1 wide stile rim device at 36 inches for 1-3/4 inch doors. The TownSteel ED9700 is another Grade 1 wide stile rim device at 36 inches. All three are pushpad rim devices on metal doors, like the V40.
10) Is an SDC pressure sense bar or switch bar a substitute for the Detex V40 rim exit device?
No. The Detex V40 is a mechanical rim exit device with a stainless 3/4 inch deadlocking Pullman latch that does the latching itself. The SDC PSB560 SureExit is a pressure sense bar with tri-failsafe technology and the SDC MSB550 is a mechanical switch bar with electromagnetic lock release; both are 36 inch bars for narrow or wide stile doors that signal a separate electric lock rather than carry a latch. Use those only where a maglock or electric strike holds the door.
11) What door widths does the Detex V40 exit device cover?
Two rail lengths are offered, 36 inch and 48 inch, and the device is field sizeable so the rail can be cut down to suit the door prep within its range. Pick the 36 inch for standard 3 foot leaves and the 48 inch for wider openings.
12) Will the Detex V40 latch bolt hold up on a high abuse exit door?
The latch is a stainless steel 3/4 inch deadlocking Pullman type bolt tested to over 1400 pounds of static pull force, and the device carries a Grade 1 rating for panic and fire exit hardware. That is the level you want on a school, hospital or public building exit rather than a Grade 2 device like the Cal-Royal 5000.
13) Can I rekey or change the trim on a Detex V40 without pulling the device off the door?
Yes. The V40 accepts a range of outside trims and functions, and trim changes or rekeying are done without removing the device from the door. That is useful for a property manager rekeying tenant exits without a full hardware swap.
14) Does the Detex V40 include outside trim or is it exit only?
The device function is exit only, meaning the rail and latch alone. Outside entry comes from the storeroom lever trim you specify, either the 09BN narrow or 09D2W wide lever, which is active by key and stays locked when the key is removed. Cylinders are a separate line item on the order.
15) Which alternatives to the Detex V40 offer hex key dogging?
The Detex V40 can be ordered with cylinder dogging, hex dogging, or less dogging. If hex key dogging is what your maintenance staff standardizes on, the Design Hardware 1000R is a 33 inch heavy duty rim device with hex key dogging, the Design Hardware 2000R is the 33 inch standard duty wide stile version with hex key dogging, and the Stanley QED200 is a Grade 1 heavy duty narrow stile rim device with hex key dogging.
16) I need a 48 inch rim exit device. Which alternatives to the Detex V40 come that long?
The Detex V40 is available in 36 inch and 48 inch. Other 48 inch rim devices include the Dormakaba 9300 Series wide stile exit only, which covers 1-3/4 inch to 2-1/4 inch doors, the Corbin Russwin ED3200 crossbar wide stile device for 1-3/4 inch doors, the CRL Jackson 1095 Series 48 inch crossbar rim panic device, and the Marks USA M9900F 48 inch fire rated exit only device. Note that the V40 and the Dormakaba use a pushpad style rail while the ED3200 and 1095 are crossbar devices.
17) If I need a concealed vertical rod device instead of a rim device like the Detex V40, what should I order?
The Detex V40 is a rim device that latches into a strike on the frame or mullion. For a pair of doors without a mullion where the latching must go top and bottom, the Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad, and the Hager 4601 Series 36 inch is the Grade 1 narrow stile concealed vertical rod version. Concealed vertical rod requires a door prepped for it.
18) The Detex V40 is available with delayed egress and alarm options. What else offers electrified rim hardware?
The Detex V40 can be ordered with EA hardwired electric alarm, EB electric alarm with battery, or EE delayed egress. For electrified rim hardware from other makers, the SDC S6136 Spectra is a 36 inch electrified architectural rim exit device with a 4 inch wide stile for 1-3/4 inch to 2 inch doors, the Dormakaba E2103 is a 36 inch electrified rim device with 4908A classroom trim, and the Securitron EMB is an electromechanical exit bar for 2-1/4 inch doors.
19) I need the device to accept a keyed lever trim like the Detex V40. Which alternates take outside trim?
The Detex V40 is ordered with 09BN storeroom lever narrow trim or 09D2W storeroom lever wide trim and accepts a variety of outside trims with trim changes or rekeying without removing the device. Peers listed as accepting trim include the Corbin Russwin ED5200, a Grade 1 wide stile rim device for 1-3/4 inch doors, and the Corbin Russwin ED4200, the Grade 1 narrow stile equivalent. The Sargent 12-8810 is a fire rated Grade 1 wide stile rim device supplied with lever trim.
20) What finishes does the Detex V40 exit device come in?
Two anodized aluminum finishes: 628 brushed aluminum and 711 black aluminum. If you are standardizing a building, 628 matches typical clear anodized storefront hardware and 711 matches dark bronze/black frames.
21) How is the Detex V40 installed, and are templates available?
The V40 uses a patented mounting plate and strike locator instead of a paper template, so the device and strike line up off the same fixture. Detex publishes installation instructions, a parts list and a maintenance manual, and door prep templates, all of which ZenSupply hosts as PDFs on the product record.
