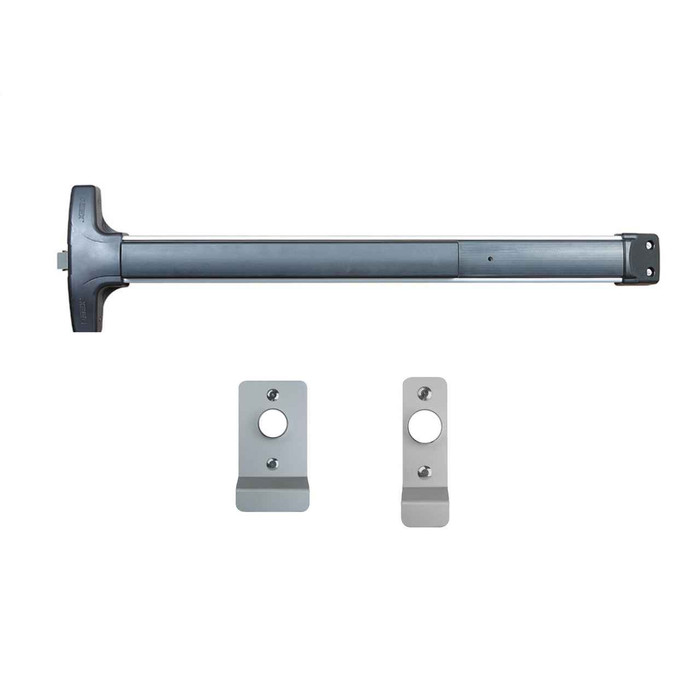

Detex V40 Series Wide Stile Rim Exit Device with Night Latch Trim - Grade 1 Commercial Exit Hardware

Detex V40 Series Wide Stile Rim Exit Device with Night Latch Trim - Grade 1 Commercial Exit Hardware

(No reviews yet) Write a Review

Model: V4003P HD 628 99 36
$649.00
$460.00
Selected Finish is
Selected Outside Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$649.00
$460.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex V40 Series Wide Stile Rim Exit Device with Night Latch Trim

Grade 1 Commercial Exit Hardware Solution

The Detex V40 Series rim exit device delivers Grade 1 panic and fire exit hardware performance at an economical price point. This wide stile configuration features a stainless steel 3/4" deadlocking Pullman-type latch bolt and withstands over 1400 pounds of static pull force for enhanced security. The patented mounting plate and strike locator system ensures accurate installation while the modular design accepts various outside trims and functions for versatile applications.

Professional Features & Benefits

  • Grade 1 Performance Rating: BHMA Grade 1 certified panic and fire exit hardware provides superior durability and reliability for high-traffic commercial applications.
  • Heavy-Duty Security: Withstands over 1400 pounds of static pull force with stainless steel 3/4" deadlocking Pullman-type latch bolt for enhanced security protection.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate panic hardware installation available.
  • Wide Stile Compatibility: Designed specifically for wide stile doors with 161 door prep coverage for versatile installation options.
  • Modular Design Flexibility: Accepts a variety of outside trims and functions while allowing trim changes or rekeying without removing device from door.
  • Durable Construction: Heavy-duty ribbed aluminum rail extrusion with high impact ABS and anodized surfaces for long-lasting performance.
  • Field Adjustable Operation: Non-handed design with field sizeable capability and 1/8 turn hex key dogging for operational flexibility.
  • Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Device Only - Exit Only
  • Product Group: Exit Devices and Trim
  • Product Model: V4003P/03PN
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: V40 Series
  • Stile Type: Wide Stile
  • Subcategory: Exit Devices - Rim
  • Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex V40 Series exit devices deliver professional-grade reliability with heavy-duty ribbed aluminum rail extrusion and high impact ABS construction rated to withstand over 1400 pounds of static pull force. The 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty demonstrates confidence in long-term performance. Engineered for demanding commercial applications where dependable Grade 1 performance and security are essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video

Product Specs

Subcategory:
Exit Devices - Rim
Series:
V40 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
V4003P/03PN
Product Function:
Device Only - Exit Only
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex V4003P HD 628 99 36 – Frequently Asked Questions

1) Is the Detex V40 a wide stile or narrow stile exit device, and does it matter for an aluminum storefront door?
Wide stile. The V40 is built for wide stile doors and covers the 161 door prep. On a narrow stile aluminum storefront door the pushpad chassis will not fit the stile, so you want a narrow stile rim device instead, such as the Adams Rite 8800 Series or the Corbin Russwin ED4200.
2) Do I need to specify handing for the Detex V40, and what door widths does it cover?
No handing to specify. The V40 is a non-handed device and it is field sizeable, so one unit covers left and right hand openings. It comes in 36 inch and 48 inch bar lengths, with the 36 inch covering typical single door leaves and the 48 inch for wider leaves.
3) Can I hold the Detex V40 open during business hours?
Yes, if you order it with dogging. Three dogging choices exist: hex dogging using a 1/8 turn hex key, cylinder dogging for key control, and less dogging. Order less dogging if the opening is fire rated, since fire exit hardware cannot be dogged.
4) Will the Detex V40 latch into my existing rim strike?
The V40 uses a stainless steel 3/4 inch deadlocking Pullman-type latchbolt, which is the standard rim device latch throw, so it mates with a standard surface-mounted rim strike. Detex includes a patented mounting plate and strike locator that sets the strike position during install, so plan on setting the strike from that locator rather than reusing an out-of-position old one.
5) Can the Detex V40 secure a pair of doors?
Only with a mullion. A rim device latches into a strike on the frame or mullion, so on a pair you need a removable mullion between the leaves. If you cannot use a mullion because the opening has to stay clear, go to a vertical rod device instead, such as the Hager 4501 Series concealed vertical rod with a wide stile pushpad.
6) The V40 is not for wood doors - what rim exit device works on a wood door?
The Detex V40 wide stile rim device is not wood door compatible. For a wood door opening, the Adams Rite 8700 Series 30 inch narrow stile rim device is listed as wood door compatible and Grade 1, and the Adams Rite 3700 Series 30 inch is the fire rated version that is also wood door compatible. Both are narrow stile devices, so confirm the stile width of the wood door before ordering against a wide stile prep.
7) I need a fire rated rim exit device - what are the alternatives to the Detex V40 F option?
The V40 is offered in an F fire rated and an HF hurricane and fire rated configuration. If you are sourcing across brands, the Marks USA M9900F is a fire rated rim exit device, exit only, in 36 inch and 48 inch lengths, the Orca OED85 is a 36 inch fire rated rim exit device, exit only, and the Dexter ED1000 fire rated rim device is Grade 1. The Arrow FS1250 is a 32 inch fire rated rim device for 1-3/4 inch doors. Fire rated devices do not dog, so the hex or cylinder dogging choice on a standard V40 does not carry over.
8) What is the closest wide stile Grade 1 rim exit device to the Detex V40 from another manufacturer?
The Von Duprin 22-3FT is the nearest straight equivalent: a 36 inch non-handed wide stile pushpad rim device, Grade 1, for 1-3/4 inch doors and not wood door rated. Like the Detex V40 wide stile rim device, it is a Grade 1 pushpad rim application. The Corbin Russwin ED5200 is another wide stile Grade 1 rim device at 36 inches for 1-3/4 inch doors, and it is catalogued as exit only, accepts trim, which matches the V40 approach of taking outside trim such as the 03P night latch trim.
9) My door has a narrow stile - what should I use instead of the Detex V40?
The V40 covered here is the wide stile configuration, prepped for wide stile doors. For a narrow stile aluminum door, the Corbin Russwin ED4200 is a Grade 1 narrow stile rim device at 36 inches for 1-3/4 inch doors, the Falcon 19-R is a Grade 1 narrow stile rim device, exit only, at 36 inches, and the TownSteel ED3700 is a Grade 1 heavy duty narrow stile rim device at 36 inches. The BEST 2401 Series is another narrow stile rim device, exit only and non-handed.
10) Which other exit devices offer a night latch function like the V40 03P trim?
The V40 is ordered with 03P night latch trim or 03PN night latch narrow trim on the outside. For a comparable night latch across brands, the Sargent 8504 is a Grade 1 rim exit device with a night latch function in a narrow design. Note that the 8504 is narrow stile, while the V40 covered here is the wide stile configuration.
11) What does the 03P night latch trim on the Detex V40 actually do?
Night latch trim gives you a keyed pull on the outside: turn the key to retract the latch and enter, otherwise the door stays locked from outside while free egress is always available from inside. Two trim styles are offered, 03P night latch trim and 03PN night latch narrow trim. The V40 chassis is modular, so trim can be changed or the cylinder rekeyed without pulling the device off the door.
12) Can I get the Detex V40 with an alarm or delayed egress built in?
Yes. Electrified choices are EA hardwired electric alarm, EB electric alarm with battery, EE delayed egress, or none for a straight mechanical device. EB suits an opening with no power run to the door; EE is the one to order where you need the 15 second delay on a controlled exit.
13) Is the Detex V40 tough enough for a high traffic exterior door?
It is a BHMA Grade 1 panic and fire exit hardware device, commercial rated, and withstands over 1400 pounds of static pull force. Construction is heavy duty ribbed aluminum rail extrusion with high impact ABS and anodized surfaces. That is the same grade level as the Von Duprin 22 Series wide stile rim device.
14) What is a good wide stile rim exit device alternative to the Detex V40?
Staying in Grade 1 wide stile rim: the Corbin Russwin ED5200 in 36 inch accepts trim like the V40 does, the Corbin Russwin ED2200 is an exit-only 36 inch version, and the TownSteel ED9700 is a heavy duty 36 inch Grade 1 wide stile rim. If a crossbar look is wanted rather than a pushpad, the CRL Jackson 1095 Series in 48 inch is a wide stile crossbar rim panic device.
15) If I do not need Grade 1 on a low-traffic exit door, what is a lighter rim device?
The Detex V40 wide stile rim device is Grade 1. Where a lighter chassis suits the opening, the Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar on a Grade 2 chassis, and the Cal-Royal 5500 is the 48 inch push bar version, also Grade 2. The Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging, matching the hex dogging option on the V40.
16) Is a crossbar exit device like the Corbin ED3200 a substitute for the Detex V40?
They serve the same opening but the push style differs. The Detex V40 is a pushpad rail device with a ribbed aluminum rail extrusion. The Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device for 1-3/4 inch doors, and the CRL Jackson 1095 is a 48 inch crossbar rim panic device, wide stile, exit only. Crossbar devices project further from the door face and are a different look from a touchpad rail, so match the style to the rest of the doors in the building before substituting.
17) What is an alternative to the V40 with the EE delayed egress option?
The Detex V40 is offered with EE delayed egress as well as EA hardwired electric alarm and EB battery alarm. If you are comparing electrified exit bars, the SDC S6136 is a 36 inch electrified architectural rim exit device with a 4 inch wide stile for 1-3/4 to 2 inch doors, the SDC MSB550 is a 36 inch mechanical switch bar with electromagnetic lock release that suits narrow or wide stile, and the Securitron EMB is an electromechanical exit bar for 2-1/4 inch doors. These are access-control style bars rather than a Grade 1 mechanical latching rim device, so confirm the opening needs a latch bolt before swapping.
18) I need a 48 inch rim device for a wide door - what else comes that long besides the V40?
The Detex V40 is offered in 36 inch and 48 inch sizes. Other 48 inch rim devices include the Sargent 2828 and 3828, both Grade 1 reversible wide stile rim devices for 48 inch minimum door width, the Dormakaba 9300 at 48 inches wide stile Grade 1 for 1-3/4 to 2-1/4 inch doors, the Dexter ED1000 4FT Grade 1 rim device, and the Marks USA M9900F 48 inch fire rated device.
19) Can I use a concealed vertical rod device in place of the Detex V40 rim device?
No - these latch differently. The Detex V40 is a rim device with a 3/4 inch deadlocking Pullman latch bolt that catches a surface strike on the frame. The Hager 4501 is a Grade 1 concealed vertical rod device with a wide stile pushpad at 36 inches, and the Hager 4601 is the narrow stile concealed vertical rod version; both latch top and bottom through rods inside the door, which requires a door built for that prep. A rim device cannot be swapped into a CVR-prepped door or the reverse without changing the door.
20) What wide stile Grade 1 rim devices are non-handed like the Detex V40?
The V40 is a non-handed, field sizeable design. Comparable non-handed wide stile options include the Von Duprin 22-3FT, a 36 inch non-handed wide stile pushpad rim device, Grade 1, and the BEST Precision 5101, a rim exit device with a non-handed universal design. The CRL Jackson 1295 is a non-handed push pad rim panic device, wide stile, exit only, for 1-3/4 inch doors.
21) Which alternatives to the Detex V40 also offer hex key dogging?
The V40 is ordered with hex dogging, cylinder dogging, or less dogging, using 1/8 turn hex key dogging on the hex version. Among comparable devices, the Design Hardware 1000R is a 33 inch heavy duty rim device with hex key dogging, the 2000R is the standard duty 33 inch version with hex key dogging, and the Stanley QED200 series is a Grade 1 heavy duty narrow stile rim device with hex key dogging.
22) Standardizing exit hardware across a facility - which wide stile Grade 1 rim devices should I shortlist against the Detex V40?
For a wide stile Grade 1 rim standard, the shortlist alongside the Detex V40 is the Corbin Russwin ED2200 at 36 inches, exit only, the Corbin Russwin ED5200 at 36 inches, the Dormakaba 8300 wide stile panic rim device, the TownSteel ED1100 and ED9700 at 36 inches heavy duty, the Imperial USA ED-501 at 36 inches exit only, and the Von Duprin 22-3FT. All are Grade 1 wide stile rim devices and none are wood door rated, which matches the V40 for hollow metal and aluminum openings.
23) What finishes does the Detex V40 come in, and will it match my other storefront doors?
Two finishes: 628 brushed aluminum and 711 black aluminum. Brushed aluminum matches the clear anodized storefront that is on most commercial fronts; 711 is the match for dark bronze or black anodized framing.
24) Where can I get the door prep template and parts breakdown for the Detex V40 before I cut the door?
Detex publishes the V40 installation instructions, the Value Series V40 parts list, and a maintenance manual, all available as PDFs, plus V40 door prep templates and an installation video on their support site. Pull the template before drilling; the V40 covers the 161 door prep.
