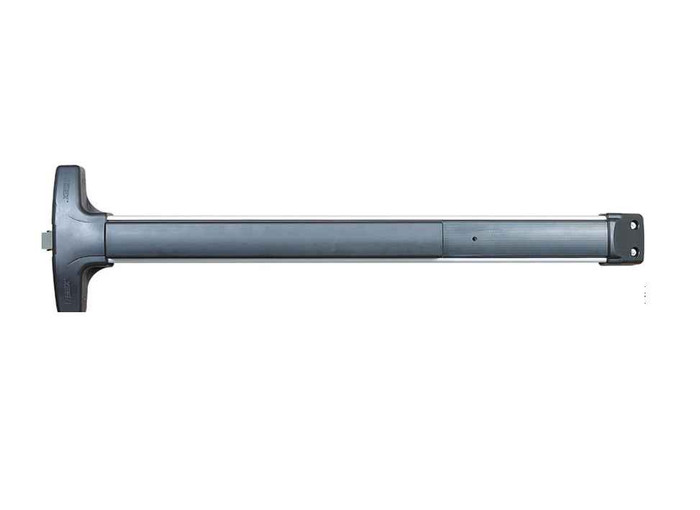

Detex V40 Series Wide Stile Rim Exit Device with Cover Plate - Grade 1 Commercial

Detex V40 Series Wide Stile Rim Exit Device with Cover Plate - Grade 1 Commercial

(No reviews yet) Write a Review

Model: V4001PN-628-36
$650.09
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$650.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex V40 Series Wide Stile Rim Exit Device with Cover Plate - Grade 1 Commercial

Professional Grade 1 Panic Hardware Solution

The Detex V40 Series rim exit device delivers Grade 1 panic and fire exit hardware performance at an economical price point. Designed for wide stile applications on single and double doors with mullions, this device features a patented mounting plate and strike locator system for precise installation. The heavy-duty ribbed aluminum rail extrusion with high impact ABS and anodized surfaces withstands over 1400 pounds of static pull force for enhanced security in commercial applications.

Professional Features & Benefits

  • Grade 1 Certification: BHMA Grade 1 panic and fire exit hardware rating ensures compliance with commercial building codes and safety requirements.
  • Heavy-Duty Security: Withstands over 1400 pounds of static pull force with stainless steel 3/4" deadlocking Pullman-type latch bolt for superior security performance.
  • Wide Stile Compatibility: Designed specifically for wide stile door applications covering a 161 door prep for versatile installation options.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the most accurate and easiest panic hardware installation available.
  • Durable Construction: Heavy-duty ribbed aluminum rail extrusion with high impact ABS and anodized surfaces provides long-lasting performance in demanding commercial environments.
  • Modular Design Flexibility: Accepts a variety of outside trims and functions with standard and narrow stile pull trims available for customization.
  • Field Adjustable Operation: Non-handed design with field sizeable capability and 1/8 turn hex key dogging for operational flexibility.
  • Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Cover Plate
  • Product Group: Exit Devices and Trim
  • Product Model: V4001PN
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: V40 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Value Series
  • Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex V40 Series exit devices deliver professional-grade reliability with heavy-duty ribbed aluminum construction and stainless steel components rated to withstand over 1400 pounds of static pull force. The 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty demonstrates the company's confidence in product durability. Engineered for demanding commercial applications where dependable Grade 1 performance and easy installation are essential.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video

Product Specs

Subcategory:
Value Series
Series:
V40 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Device - Rim
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
V4001PN
Product Function:
Cover Plate
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex V4001PN-628-36 – Frequently Asked Questions

1) Will the Detex V40 rim exit device work on a wood door?
No. The V40 Series is not rated for wood door applications, so for a wood fire door or wood-core opening you need a different device. Among rim devices that do list wood door compatibility, the Adams Rite 3700 Series is a fire-rated narrow stile rim device listed as wood door compatible, and the Adams Rite 8700 Series is the non-fire-rated version.
2) Can the Detex V40 be used on a pair of doors?
Yes, on a pair with a mullion. The V40 is a rim device, so the latch throws into a strike on the frame or mullion, not into the head and threshold. Detex states it is designed for single and double doors with mullions. If you need a pair to stay clear with no center mullion, a rim device is the wrong type and you want vertical rod hardware instead, such as the Hager 4501 concealed vertical rod device.
3) What door prep does the Detex V40 exit device cover?
The V40 covers a 161 door prep, which is the standard cylindrical lock prep with a 2-1/8 inch cross bore. That makes it a straightforward swap on a door already prepped for a cylindrical lockset, and Detex includes a mounting plate and strike locator system in place of paper templates for laying out the remaining holes.
4) Is the Detex V40 handed, and what do I specify when ordering?
The device itself is non-handed and field sizeable, but the order still takes a handing selection, right hand reverse or left hand reverse, along with dogging type (hex dogging, cylinder dogging, or less dogging) and strike type (99 surface or 98 semi-mortise). Size is 36 or 48 inches, and finish is 628 brushed aluminum or 711 black aluminum.
5) Can I get the Detex V40 fire rated, and does that change the dogging?
Yes, fire rated versions are offered, along with hurricane rated, hurricane and fire rated, and non-rated. Note that mechanical dogging is not permitted on a fire rated exit device, so on fire openings specify the less/no dogging option. Hex dogging or cylinder dogging belong on the non-rated versions where you want to hold the latch retracted during business hours.
6) Does the Detex V40 come with electrified options for access control?
Yes. The V40 can be ordered with delayed egress, electric dogging, a hardwired electric alarm, or a request to exit (signal) switch, or with no electrified option at all. Electric dogging lets you release the latch remotely on a schedule; the RX switch just reports that the pushbar was used.
7) The door has a narrow stile aluminum frame - what rim device should I use instead of the Detex V4001PN?
The V4001PN is built for wide stile openings, so on a narrow stile aluminum door look at a narrow stile rim device instead. Adams Rite 8800 Series 30 inch is a Grade 1 narrow stile rim device for 1-3/4 inch to 2-1/4 inch doors. Other narrow stile Grade 1 choices are the Corbin Russwin ED4200 at 36 inch, the Falcon 19-R at 36 inch exit only, and the TownSteel ED8900 at 36 inch.
8) What is the closest wide stile Grade 1 rim exit device to the Detex V4001PN?
The Von Duprin 22-3FT is the nearest match in form: a 36 inch wide stile pushpad rim device, non-handed, Grade 1, for 1-3/4 inch doors and not wood door compatible. The Detex V4001PN is also a Grade 1 wide stile rim device, offered in 36 inch and 48 inch sizes. Other close wide stile Grade 1 rim options include the Corbin Russwin ED5200 at 36 inch and the TownSteel ED9700 at 36 inch.
9) I need a fire rated rim exit device - is there an alternative to the Detex V40?
The Detex V40 rim device is ordered with a rating choice that includes fire rated, hurricane rated, both, or non-rated. If you are sourcing another brand, fire rated rim devices include the Dexter ED1000-R-F-EO in Grade 1, the Adams Rite 3700 Series 30 inch narrow stile in Grade 1, the Marks USA M9900F in 36 inch and 48 inch, the Arrow FS1250 at 32 inch, and the Orca OED85 at 36 inch.
10) Is a Cal-Royal 5000 or 5500 an equivalent to the Detex V4001PN?
They are not equivalent on certification. The Detex V4001PN carries a Grade 1 rating. The Cal-Royal 5000 is a 36 inch wide rim device with a touch bar on a Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar, also Grade 2. If your spec calls for Grade 1 panic hardware, the Cal-Royal units will not satisfy it; stay with the V40 or another Grade 1 device such as the Hager 4701 at 36 inch.
11) I need an electrified rim exit device with request to exit - how does the Detex V40 compare to other options?
The Detex V40 rim device can be ordered with electrified options including a request to exit signal switch, electric dogging, hardwired electric alarm, or delayed egress. Among other brands, the Sargent 12-8810-LTRIM is a fire rated wide stile rim device with RX and MELR, the SDC S6136 Spectra is a 36 inch electrified wide stile rim device with a 4 inch stile for 1-3/4 inch to 2 inch doors, and the Dormakaba E2103 is a 36 inch electrified rim device with 4908A trim in a classroom function.
12) For a 48 inch wide opening, what alternatives are there to the 48 inch Detex V40?
The Detex V40 rim device is offered in a 48 inch size alongside the 36 inch. Comparable 48 inch wide stile devices include the Dormakaba 9300 Series 48 inch Grade 1 heavy duty panic rim device for 1-3/4 inch to 2-1/4 inch doors, the Corbin Russwin ED3200 Grade 1 48 inch crossbar rim device, the Sargent 2828 Grade 1 reversible rim device for a 48 inch minimum door width, and the Marks USA M9900F at 48 inch in fire rated.
13) Which strike should I pick for a Detex V40, surface or semi-mortise?
Two strikes are offered: the 99 surface strike mounts on the face of the frame stop and is the simpler retrofit when you do not want to cut the frame, and the 98 semi-mortise strike sets into the frame for a flatter, less exposed look. Both work with the 3/4 inch deadlocking Pullman-type stainless latch bolt on the device.
14) Is the Detex V40 Grade 1, and how strong is it against a pull attack?
The V40 carries BHMA Grade 1 panic and fire exit hardware certification and withstands over 1400 pounds of static pull force. Construction is a ribbed aluminum rail extrusion with high impact ABS and anodized surfaces. For institutional standardization, other Grade 1 wide stile rim options include the Von Duprin 22 Series and the Corbin Russwin ED5200.
15) Can I add an exterior lever or pull to the Detex V40, or is it exit only?
The V40 has a modular design that accepts a variety of outside trims and functions, including standard and narrow stile pull trims, so it is not limited to exit only. Trim is ordered separately from the device.
16) What looks like a substitute for the Detex V40 rim device but is not a rim panic device?
A few items sit next to rim devices in a search but do a different job. The Hager 4501 at 36 inch and Hager 4601 at 36 inch are concealed vertical rod exit devices, which require door prep for rods rather than a rim strike. The SDC MSB550 at 36 inch is a mechanical switch bar that releases an electromagnetic lock, and the SDC PSB560 SureExit is a pressure sense bar - neither latches the door the way the V40's rim latch does. The Dexter ED1500-EXTRD-SP is a 12 inch extension rod assembly, a part for ED1500 devices rather than a device.
17) I want a crossbar style device instead of a push pad like the Detex V40 - what are my options?
The V40 uses a push rail rather than a crossbar. For a crossbar look, the CRL Jackson 1095 Series is a 48 inch crossbar rim panic device in wide stile, exit only, and the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device in wide stile for 1-3/4 inch doors. The Sargent 3828 is a Grade 1 reversible standard push bar rim device for 48 inch doors.
18) Which rim exit devices besides the Detex V40 come with hex key dogging?
The Detex V40 uses a 1/8 turn hex key dogging, and it can also be ordered with cylinder dogging or with no dogging. If you are cross-shopping, the Design Hardware 1000R at 33 inch is a heavy duty rim device with hex key dogging and the Design Hardware 2000R at 33 inch is a standard duty wide stile rim device with hex key dogging. The Stanley QED200 series narrow stile rim device is Grade 1 heavy duty with hex key dogging.
19) I only need a plain exit only rim device - what are simpler alternatives to the Detex V40?
The V40 is a modular device that accepts a variety of outside trims and functions. If the opening needs nothing on the outside, straightforward exit only rim devices include the Corbin Russwin ED2200 at 36 inch in Grade 1 wide stile, the Imperial USA ED-501 at 36 inch in Grade 1 wide stile, the Orca OED55 at 36 inch, and the Marks USA M9900 at 36 inch.
20) How does the Detex V40 compare to the DORMA 8300 for a wide stile storefront style door?
Both are Grade 1 wide stile rim panic devices that are not wood door compatible. The DORMA 8300 is from the 8000 Series and is non fire rated. The Detex V40 covers a 161 door prep, is non-handed and field sizeable, and can be ordered non-rated, fire rated, hurricane rated, or hurricane and fire rated, so it is the one to look at if a rated opening is involved.
21) What is the difference between the Detex V40 and a crossbar panic device like the CRL Jackson 1095?
The V40 is a push pad rail device: the pad sits flush in an aluminum rail across the door, which is the current standard look and easier to keep clear of carts and traffic. The CRL Jackson 1095 Series is a crossbar rim device, a bar standing off the face of the door, which some facilities keep for appearance match on older openings. The Corbin Russwin ED3200 is another crossbar wide stile option. Function is the same, the operation and profile differ.
