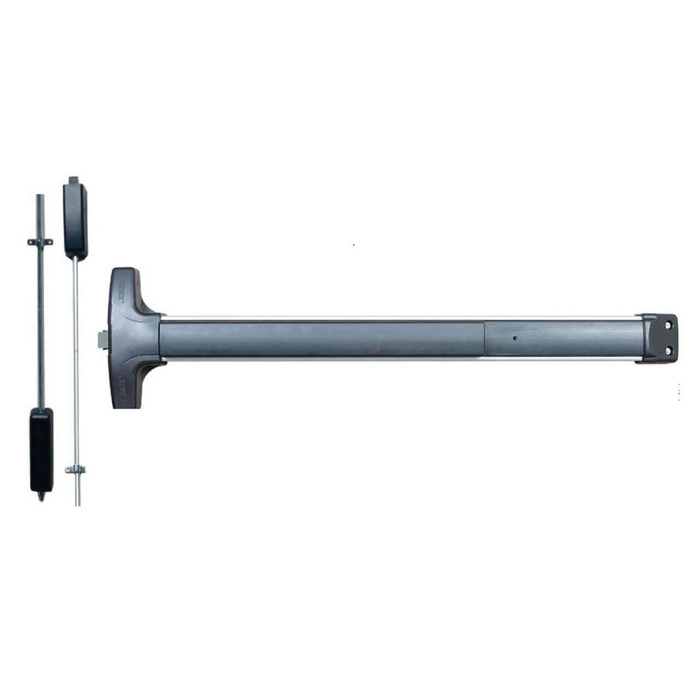

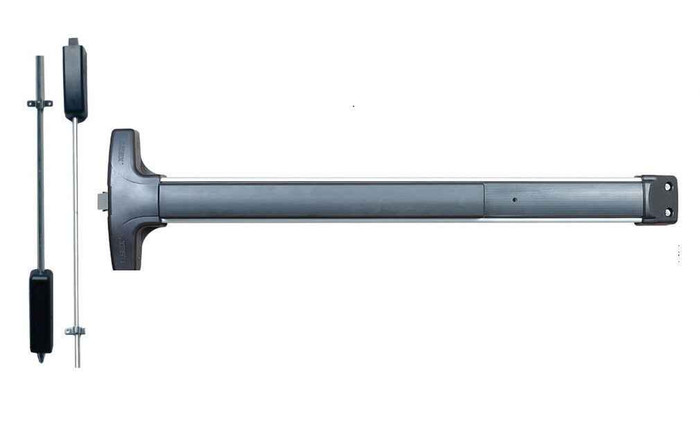

Detex V50/V51 Value Series Surface Vertical Rod Exit Device with Key Retracts Latch Cylinder Trim

Detex V50/V51 Value Series Surface Vertical Rod Exit Device with Key Retracts Latch Cylinder Trim

Heavy-Duty Panic and Fire Exit Hardware for Double Doors

The Detex V50/V51 Value Series Surface Vertical Rod Exit Device delivers professional-grade panic and fire exit hardware designed for double doors without a mullion. This Grade 1 exit device features a stainless steel 3/4" deadlocking top latch bolt and 5-5/8" long bottom drop bolt for secure operation. The patented mounting plate and strike locator system ensures accurate installation while the wide stile design accommodates various door configurations.

Professional Features & Benefits

• Heavy-Duty Latch System: Stainless steel 3/4" deadlocking top latch bolt with 5/8" diameter x 5-5/8" long bottom drop bolt for reliable security and fire exit compliance.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation in an economical panic device.
• Durable Construction: Ribbed aluminum rail extrusion with impact resistant ABS and anodized surfaces for long-lasting performance in commercial applications.
• Field Configurable Design: Handed, field reversible and field sizable with 1/8 turn dogging for flexible installation and operation requirements.
• Wide Stile Compatibility: Wide stile design accommodates various door types and configurations for versatile application options.
• Modular Trim System: Accepts a variety of outside trims and functions with easily changeable or rekeyable outside trims without removing device from door.
• Damage Protection: Angled end cap deflects damage away from device for enhanced durability in high-traffic environments.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Key Retracts Latch Cylinder Trim
• Product Group: Exit Devices and Trim
• Product Model: V5003WS/V5103WS
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: V50/V51 Series
• Stile: Wide
• Stile Type: Wide Stile
• Subcategory: Value Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions with minimal door preparation requirements.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components including field reversible handing and 1/8 turn dogging for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex V50/V51 Value Series exit devices deliver professional-grade reliability with Grade 1 performance rating and heavy-duty construction featuring stainless steel latch components and ribbed aluminum rail extrusion. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for demanding commercial applications where dependable panic hardware performance and fire exit compliance are essential.
