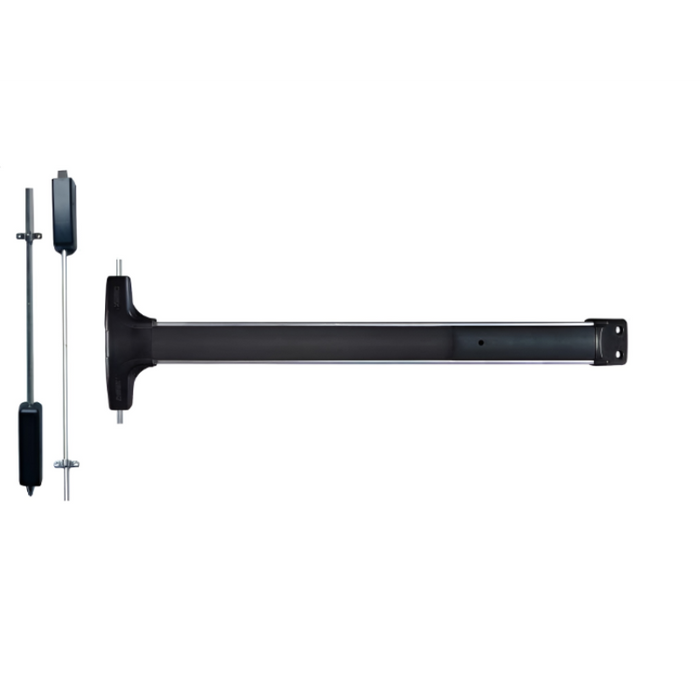

Detex V5003WSxNS/V5103WSxNS Value Series Narrow Stile Surface Vertical Rod Exit Device with Key Retracts Latch Cylinder Trim

Detex V5003WSxNS/V5103WSxNS Value Series Narrow Stile Surface Vertical Rod Exit Device with Key Retracts Latch Cylinder Trim

(No reviews yet) Write a Review

Model: V5003WSxNS-628-36x84
$1,365.00
$1,362.53
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,365.00
$1,362.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex V5003WSxNS/V5103WSxNS Value Series Narrow Stile Surface Vertical Rod Exit Device with Key Retracts Latch Cylinder Trim

Economical Panic and Fire Exit Hardware for Narrow Stile Double Doors

The Detex V5003WSxNS/V5103WSxNS Value Series exit device provides Grade 1 performance for narrow stile double doors without a mullion. This surface vertical rod device features a stainless steel 3/4" deadlocking top latch bolt and 5/8" diameter x 5-5/8" long bottom drop bolt for secure operation. The patented mounting plate and strike locator system ensures accurate installation while the ribbed aluminum rail extrusion and impact resistant ABS construction deliver reliable commercial-grade performance.

Professional Features & Benefits

  • Narrow Stile Compatibility: Specifically designed for narrow stile double doors without mullion requirements for versatile installation options.
  • Grade 1 Performance: BHMA Grade 1 rated for heavy-duty commercial applications requiring superior durability and reliability.
  • Dual Bolt Security: Stainless steel 3/4" deadlocking top latch bolt and 5/8" diameter x 5-5/8" long bottom drop bolt provide comprehensive door security.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for faster, more accurate installation with minimal door preparation.
  • Field Reversible Design: Handed but field reversible configuration allows adaptation to various door applications and handing requirements.
  • Durable Construction: Ribbed aluminum rail extrusion with impact resistant ABS and anodized surfaces for long-lasting commercial performance.
  • Modular Trim System: Accepts variety of outside trims and functions with easy trim changes or rekeying without device removal.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Key Retracts Latch Cylinder Trim
  • Product Group: Exit Devices and Trim
  • Product Model: V5003WSxNS/V5103WSxNS
  • Product Subgroup: Exit Devices - Vertical Rod
  • Product Type: Exit Devices - Vertical Rod
  • Series: V50xNS/V51xNS Series
  • Stile: Narrow
  • Stile Type: Narrow Stile
  • Subcategory: Value Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Value Series exit devices deliver professional-grade reliability with stainless steel and aluminum construction rated for Grade 1 commercial performance. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding applications. Engineered for demanding commercial applications where dependable panic hardware performance and easy installation are essential.



Resources

Installation Instructions
Parts List
Door Templates
Installation Video

Product Specs

Subcategory:
Value Series
Series:
V50xNS/V51xNS Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Vertical Rod
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Narrow
Stile Type:
Narrow Stile
Product Model:
V5003WSxNS/V5103WSxNS
Product Function:
Key Retracts Latch Cylinder Trim
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex V5003WSxNS-628-36x84 – Frequently Asked Questions

1) Will a Detex V5003WSxNS vertical rod device work on a pair of aluminum storefront doors with no mullion?
That's exactly what it's built for. The Detex V50xNS/V51xNS Value Series is a narrow stile surface vertical rod device intended for narrow stile double doors without a mullion. Because it latches at the head with a 3/4 inch deadlocking top latch bolt and at the floor with a 5/8 inch diameter x 5-5/8 inch long bottom drop bolt, each leaf secures on its own and no center mullion is needed. If your doors are wide stile aluminum or hollow metal, a wide stile device like the Von Duprin 8827-3FT is the size class to look at instead.
2) Do I have to specify handing on the Detex V5003WSxNS, and can I flip it in the field?
Handing is a required selection, right hand reverse or left hand reverse, which are the two hands exit devices come in since they always swing out. The device is handed but field reversible, so if the wrong hand shows up on site you can convert it rather than reorder.
3) Can I order a Detex vertical rod device with just a top latch and no bottom rod?
Yes. The vertical rod option is either a top and bottom rod device or a top rod only device. Top rod only (less bottom rod) is the common choice where the floor is uneven, where there is carpet or a drain, or where installers want to avoid the bottom strike and drop bolt in the threshold. With top and bottom you get the 5/8 inch diameter x 5-5/8 inch long bottom drop bolt for two-point locking.
4) Is the Detex V5003WSxNS Grade 1, and is it heavy duty enough for a school or hospital exit?
BHMA Grade 1 and specified as commercial, which is the top ANSI/BHMA durability class for exit hardware and the level normally written into school, healthcare, and government specs. Construction is a ribbed aluminum rail extrusion with impact resistant ABS and anodized surfaces, plus a stainless steel top latch bolt.
5) What surface vertical rod exit device works on a wide stile aluminum or hollow metal door instead of a narrow stile door?
The Detex V5003WSxNS/V5103WSxNS is built for narrow stile doors, so for a wide stile opening look at the Von Duprin 8827-3FT, a Grade 1 wide stile surface vertical rod device in the 88 Series sized 3 ft for 1-3/4 inch doors, or the Imperial USA ED-VR531 from the ED-500 Series, a Grade 1 wide stile surface vertical rod device in 36 inch. Both are exit only, so if you need a key to retract the latch from outside you would add trim separately.
6) I only need free egress with no outside key access. What vertical rod device should I use instead?
The Detex V5003WSxNS/V5103WSxNS is configured for key retracts latch cylinder trim, meaning outside key access. If the opening only needs push-to-exit with no outside operation, exit only devices include the Marks USA M9900VR at 36 in. x 84 in. and the M9900VR-48X84 at 48 in. x 84 in., the Imperial USA ED-VR531 in 36 inch Grade 1, and the Cal-Royal 9860, a heavy duty Grade 2 exit only device that is ADA compliant.
7) What are the fire rated alternatives to the Detex V5103WSxNS for a labeled door?
The Detex V5003WSxNS/V5103WSxNS is orderable in a Fire Rated or Non-Rated configuration. Other fire rated surface vertical rod devices include the Delaney F9100 Series DLY-694300, Grade 1 fire rated for a 36 in. x 84 in. door in an aluminum finish, and the Marks USA M9900FVR fire rated devices in 36 in. x 84 in. and 48 in. x 84 in., both exit only and non-handed. Note that fire rated openings do not permit mechanical dogging, so the less/no dogging option applies.
8) What electrified options can I add to the Detex Value Series narrow stile exit device?
Four, plus a non-electrified build. EA is a hardwired electric alarm, EB is an alarm with battery power, EX is a request-to-exit signal switch for tying the door back to an access control panel, and EE is delayed egress for controlled exits. EB is the one to look at when you have no power at the opening. Select None for a straight mechanical device.
9) What does the Key Retracts Latch cylinder trim do on this Detex exit device?
On the outside of the door, a key in the cylinder trim pulls the latch back so someone can enter; release the key and the door secures again. Inside, the push rail always gives free egress. There's no lever or knob with this function, so it suits service and back-of-house doors where you want keyed entry only. Trim can be changed or rekeyed without taking the device off the door.
10) Which strike option should I pick for a Detex V50 vertical rod device on an exterior door?
Two strike packages are offered. The 96 is a surface non-roller top strike with a non-dust proof bottom strike. The 96B swaps that bottom strike for a dust proof strike, which is the one to take on exterior openings or anywhere grit, sand, or water gets into the floor pocket and would otherwise foul the drop bolt. Strike selection is required when ordering.
11) How does the Detex Value Series compare to a Von Duprin 8827 or the Marks USA M9900VR?
Stile width and function separate them. The Detex V50xNS is narrow stile and comes with key-retracts-latch cylinder trim for keyed outside entry. The Von Duprin 8827-3FT is a Grade 1 wide stile surface vertical rod device for 1-3/4 inch doors, so it needs the stile width a narrow aluminum door does not have. The Marks USA M9900VR (36 x 84) and M9900VR 48 x 84 are exit only, no outside trim, and the M9900FVR 36 x 84 is the fire rated version of that. Delaney's 9100 Series is Grade 1 non-rated and the F9100 Series is the Grade 1 fire rated counterpart. Cal-Royal's 9860 is Grade 2 exit only, a step down in duty class.
12) Will the 3/4 inch top latch bolt on this Detex device engage my existing top strike?
The top bolt is stainless steel with a 3/4 inch deadlocking throw, and it is designed around the supplied 96 or 96B surface top strike. Reusing an existing strike is risky because throw, strike depth, and rod alignment have to agree, and the surface non-roller top strike in the 96 kit is what the bolt was set up against. Order the strike option with the device and set the bolt with the strike locator rather than adapting to old hardware.
13) Can I hold these doors unlocked during business hours with the Detex V50 series?
Yes, on a non-rated device. Dogging is a required choice: hex dogging uses an allen wrench to hold the push rail depressed and the latches retracted, cylinder dogging does the same with a key so only keyholders can do it, and Less/No dogging is the option to take on a fire rated opening where dogging is not permitted.
14) I need an electrified vertical rod device with delayed egress or an alarm. Do the comparable devices offer that?
The Detex V5003WSxNS/V5103WSxNS is the one to specify for those functions: it is ordered with EA hardwired electric alarm, EB electric alarm with battery, EE delayed egress, or EX request to exit signal switch, in addition to a non-electrified build. The comparable vertical rod devices such as the Delaney 9100 Series DLY-692301 and the Von Duprin 8827-3FT are catalogued as mechanical Grade 1 devices.
15) Does handing matter when cross-shopping the Detex V5003WSxNS against other vertical rod devices?
Yes. The Detex V5003WSxNS/V5103WSxNS is ordered as right hand reverse or left hand reverse and is handed but field reversible. Several alternatives avoid the question entirely: the Marks USA M9900VR and the fire rated M9900FVR at 36 in. x 84 in. are both catalogued as non-handed, so one part covers either leaf.
16) What finishes does the Detex V50xNS exit device come in, and will it match dark bronze or black storefront?
Two anodized finishes: 628 brushed aluminum and 711 black aluminum. On clear or satin aluminum storefront, take 628. On dark or black anodized frames, 711 is the closer match. There is no bronze or plated option in this series, so a property standardizing on dark bronze doors usually runs 711 as the nearest visual match.
17) How much door prep does the Detex Value Series vertical rod device need, and are templates available?
Installation uses a patented mounting plate and strike locator system in place of paper templates, which holds the layout while you drill and keeps door prep minimal. Detex publishes printed installation instructions and a parts list as PDFs, plus V50 door prep templates and an installation video, so a crew doing several openings can pull the prep dimensions before the hardware lands on site.
18) What is the difference between the Delaney 8100 and 9100 Series vertical rod devices if I am considering them alongside the Detex Value Series?
Both are Grade 1 surface vertical rod devices for a 36 in. x 84 in. non-fire-rated door. The DLY-692301 is the 9100 Series, described as heavy duty in a stainless steel finish, while the DLY-8100-3684 is the 8100 Series. For a labeled door in that family you would move to the F9100 Series DLY-694300, which is Grade 1 fire rated in an aluminum finish. The Detex V5003WSxNS/V5103WSxNS differs from all three in being a narrow stile device with key retracts latch cylinder trim.
