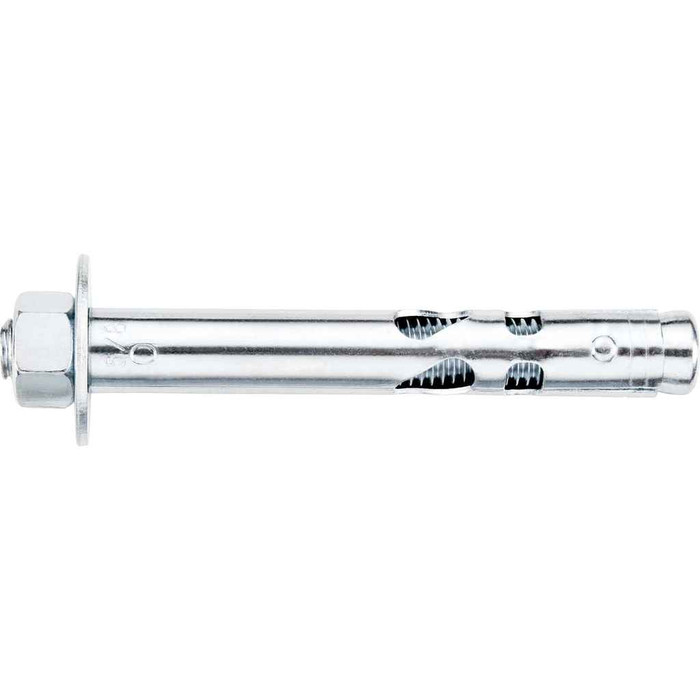

DEWALT Lokbolt Hex 3/8 X 3 (As)
Features
- Versatile – can be used for solid and hollow concrete or masonry applications
- All steel component design
- Sleeve design keeps anchor centered in hole
- Preassembled anchor for immediate installation
- Sleeve has 360° contact area for even stress distribution
- Variety of head styles, lengths and sizes
Manufacturer Resources
Product Specs
- Battery Included:
- No
- Connection Design:
- Concrete Only
- Country Of Origin:
- China
- Fastener Length:
- 3
- Individual Vs Set Syndigo :
- INDIVIDUAL
- Net Lit Ion Y N:
- No
- Power Source:
- NON-ENERGY USING
- Product Diameter Us:
- 0.375 IN
- Product Weight:
- 0.102 lbs
- Department:
- Electrical
DEWALT 05020S-PWR – Frequently Asked Questions
1) What size hole do I drill for the DEWALT 05020S-PWR Lokbolt sleeve anchor?
The Lokbolt hex anchor is a 3/8 inch diameter sleeve anchor, so it goes into a 3/8 inch hole drilled in the concrete or masonry. The sleeve design keeps the anchor centered in that hole and puts 360 degree contact on the hole wall so stress spreads evenly rather than loading one side.
2) How thick a fixture can a 3/8 x 3 Lokbolt hold down?
Overall fastener length is 3 inches. On a sleeve anchor that length is split between the embedment in the concrete and the thickness of whatever you are fastening, so the fixture thickness you can clamp is 3 inches minus the embedment your job requires. If you are mounting a thick base plate or standoff, step up to a longer length in the Lokbolt range rather than losing embedment.
3) Can I use a Lokbolt sleeve anchor in hollow block, or only in solid concrete?
Both. The Lokbolt works in solid and hollow concrete or masonry, which is the main reason to reach for a sleeve anchor over a wedge anchor, since wedge anchors want solid base material. Do not use it in drywall, wood, or steel; the connection design is concrete and masonry only.
4) Does the DEWALT Lokbolt come assembled, or do I have to put the nut and washer on?
It ships preassembled, so it goes straight from the box into the hole. Drill, drive it through the fixture, and tighten the hex nut to expand the sleeve. No separate sleeve, washer, or nut to sort on the deck.
5) Is the Lokbolt anchor all steel, or does it have a plastic sleeve?
All steel component design, sleeve included. There is no plastic shield or nylon insert in it, which is what lets it be used for structural attachment into masonry rather than light-duty fixture mounting.
6) Is the 05020S-PWR Lokbolt sold as a single anchor or in a box?
The 05020S-PWR is catalogued as an individual anchor rather than a kit or assortment, and it weighs 0.102 lbs each. If you are pricing out a run of strut, conduit clamps, or equipment bases, count your anchor points and order accordingly.
7) Does the DEWALT 05020S-PWR need a battery or any power source?
No. Despite the PWR in the part number, this is a mechanical anchor with no battery and no power source of its own. You need a hammer drill and a carbide bit to make the hole, and a wrench or socket to torque the hex nut.
8) What head style is the 05020S-PWR, and does it matter for my application?
Hex head. That gives you a socket or wrench drive and a bearing surface against the fixture, which is what you want for strut channel, equipment feet, and conduit supports where you need to pull real torque. The Lokbolt family runs other head styles if you need a flat or acorn look instead.
