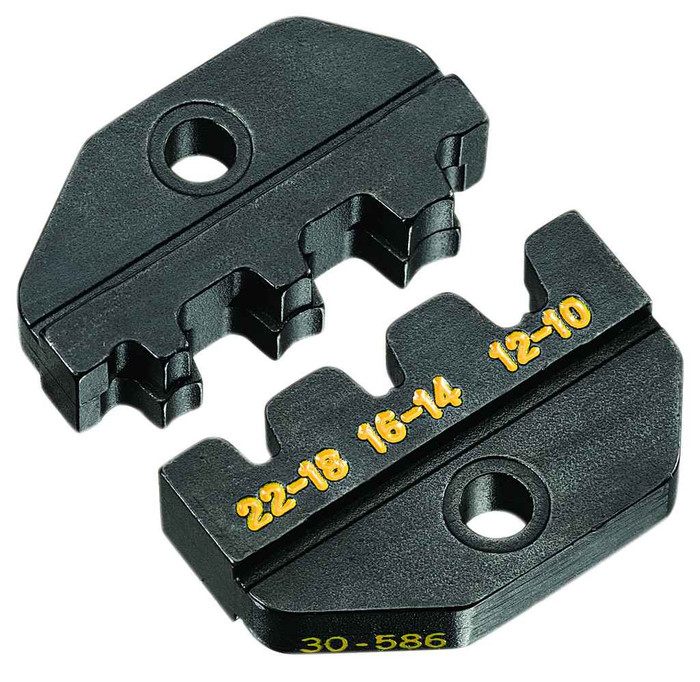

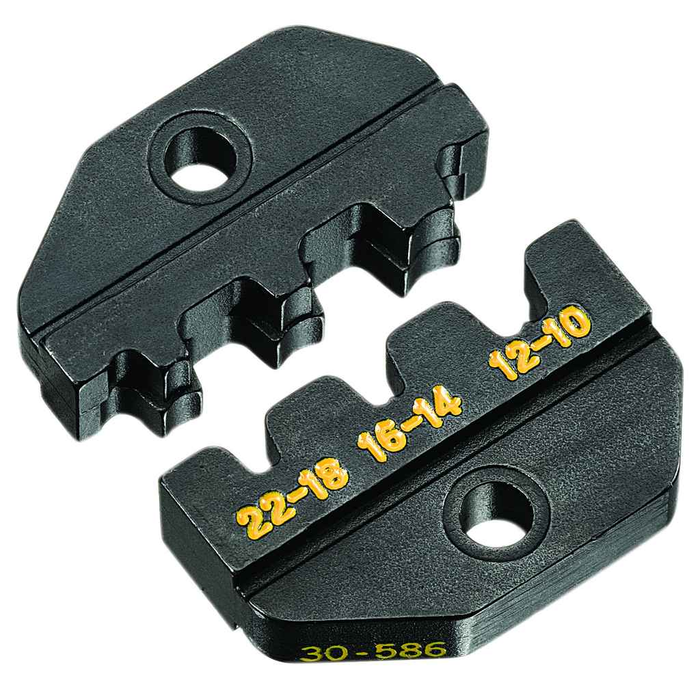

Die Set, Non-Insulated Open Barrel Terminals for Crimpmaster™ Tool
Features
- Die set only for non-insulated open barrel connectors
- For commercial type connectors
- Use with the 30-506 Crimpmaster™ frame
Manufacturer Resources
Product Specs
- Product Group:
- Hand Tools
- Department:
- Electrical
- Product Subgroup:
- Wire Strippers & Crimpers
- 3 Cavity Die:
- 22-12 AWG
- parent sku:
- IDL-30-586
- Product Type:
- Crimp Die Set
Ideal Industries 30-586 – Frequently Asked Questions
1) Does the IDEAL 30-586 die set come with a crimp tool, or do I need a frame separately?
Die set only. The IDEAL 30-586 is the die by itself and mounts in the 30-506 Crimpmaster frame, which you have to have already or order with it. If you don't own the 30-506 frame, the die alone won't crimp anything.
2) What wire sizes will the IDEAL 30-586 Crimpmaster die crimp?
It is a 3 cavity die covering 22 to 12 AWG, so one die handles the usual small-gauge control and low-voltage range without swapping. Each cavity covers part of that span, so match the cavity to the conductor you're terminating.
3) Can I use the 30-586 die on insulated terminals or ring tongues?
No. The 30-586 is cut for non-insulated open barrel connectors only, the kind with the rolled wings you fold over the conductor. Insulated ring, fork and butt splices need an insulated-terminal die instead, and crimping them in an open barrel cavity will deform the insulation sleeve and give you a bad termination.
4) Is the IDEAL 30-586 die for commercial-grade connectors or automotive ones?
It is specified for commercial type open barrel connectors. That is the terminal style used in control panels, signal and low-voltage wiring where the barrel wings crimp directly onto bare copper.
5) I'm standardizing crimp tooling across a maintenance shop. Does one 30-586 die cover most small-gauge work?
For non-insulated open barrel terminals, yes. The three cavities span 22 to 12 AWG, which covers the bulk of control, instrumentation and low-voltage terminations in one die on a single 30-506 frame. You would still add separate dies for insulated terminals or larger conductors.
6) What part number should I order for the IDEAL open barrel Crimpmaster die?
Order IDEAL Industries 30-586. That is the manufacturer part number for the non-insulated open barrel die set, and it is the only configuration offered.
