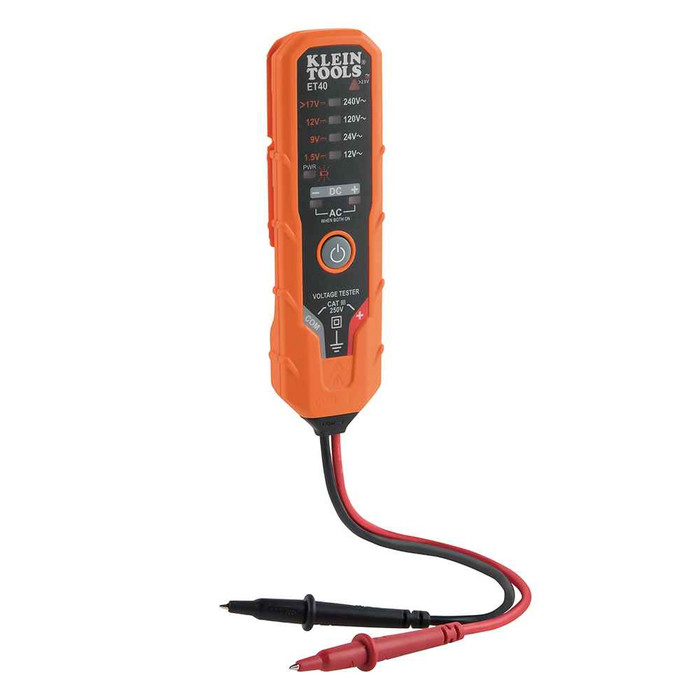

Digital AC/DC Voltage Tester 12 to 240V AC, 1.5 to 24V DC
ET40 - spec sheet
Warnings
- Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
- Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
- Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
- Never use the tester on a circuit with voltages that exceed the category based rating of this tester.
- Before each use, verify tester operation by measuring a known voltage.
Features
- CATIII 250V, Class 2, Double insulation
- Indicates polarity when measuring DC voltages
- Built to withstand a 9.8-Foot (3 m) drop
- Ingress protection IP41 dust and water resistant
- Powers off automatically after approximately 2 minutes of non-use to conserve battery life
- Built-in test lead holders on sides of tester
- Identifies and distinguishes between AC or DC voltage
- Bright LEDs illuminate to indicate the type and level of voltage detected
- Uses 2 x AAA batteries (included)
- Voltage Tester for AC voltages from 12V to 240V AC at four useful levels aligned with commonly used residential voltages
- Low battery indicator with easily accessible battery compartment
- Tests DC voltages from 1.5V to greater than 17 to 24V at four useful levels aligned with commonly used DC voltages
- Pocket clip secures tester to pocket for reliable everyday carrying
- DC Polarity Indicators for DC Positive, DC Negative, and Both Illuminated for AC. Tests Low DC Voltage to 1.5V. Built in Test Lead Holders on Sides of Tester.
ET40 - spec sheet
Manufacturer Resources
Product Specs
- Accessories:
- 5139C, 5139PAD
- Accuracy:
- Approximately 70 to 100% of Indicated Voltage, Except for 2V DC (84 to 100%) and >17V DC (94 to 100% of 17V)
- Batteries:
- 2 x AAA
- Case Included:
- No
- Control Type:
- ON/Off Switch for Power ON/OFF
- Display:
- Analog LED
- Drop Protection:
- 9.8' (3 m)
- Frequency:
- 50/60 Hz
- Ingress Protection:
- IP41
- Integral Lead Storage:
- Yes
- Interchangeable Leads:
- No
- Item Depth:
- 5.2400 in
- Item Height:
- 1.1100 in
- Item Weight:
- 0.2680 lbs
- Item Width:
- 1.5200 in
- Lead Length:
- 9" (22.9 cm)
- Overall Height:
- 1.52" (3.9 cm)
- Overall Length:
- 5.24" (13.3 cm)
- Overall Width:
- 1.11" (2.8 cm)
- Pollution Degree:
- 2
- Standard:
- CATIII 250V, CE
- Tests Continuity:
- No
- Department:
- Electrical
- Product Group:
- Test & Measurement
- Product Subgroup:
- Electrical Testers
- Product Voltage:
- AC Level Indicators - 12V, 24V, 120V, 240V and DC Indicators -1.5V, 9V, 12V, >17-24V
- Product Material:
- Plastic Housing, PCB with Electronic Components
- Product Weight:
- 2.3 oz (66 g)
