DiodeLED Streamlite LED Tape L...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$169.28

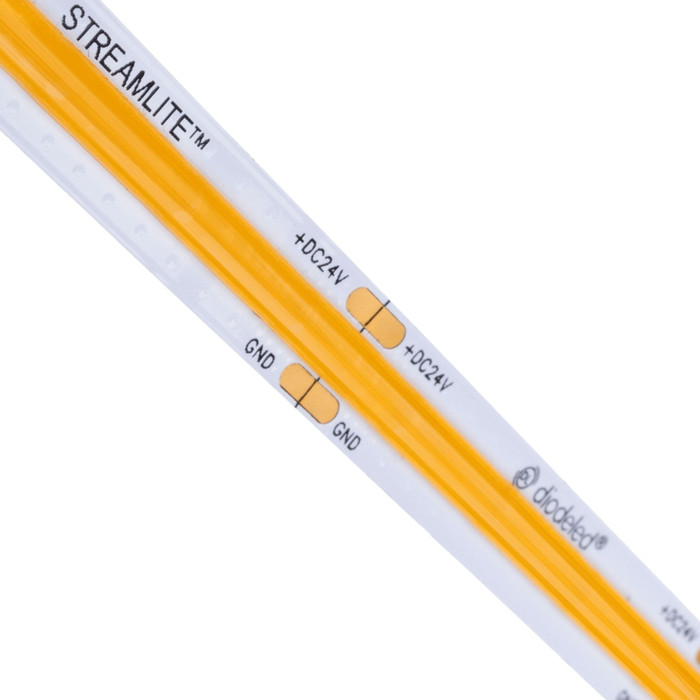

DiodeLED Streamlite LED Tape Light, 24V DC, 016

DiodeLED Streamlite LED Tape Light, 24V DC, 016

(No reviews yet) Write a Review

Model: DI-24V-STMLT-27-016

In Stock (leaves warehouse same day if ordered before 3pm ET)

$169.28
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

DiodeLED DI-24V-STMLT-30-016 Streamlite™ LED Tape Light, 24V DC, 3000K

The DiodeLED DI-24V-STMLT-30-016 is a Streamlite™ LED tape light engineered for professional architectural and task lighting applications. Operating on 24-Volt DC input, this flexible tape draws 3.3-Watt/ft and delivers a consistent 292-Lumens/ft output across a 16.4-ft reel, making it well suited for continuous linear runs where uniform illumination is required. With a 90+ CRI rating and a warm 3000K color temperature, this tape light renders colors accurately and produces inviting, natural-looking light for both residential and commercial environments. The Streamlite™ series is designed for installers who need dependable low-profile lighting that integrates cleanly into channels, coves, cabinetry, and display fixtures.

Key Features

  • Reel Length: 16.4-ft continuous run per reel, ideal for extended linear lighting applications without excessive splicing.
  • Power Draw: 3.3-Watt/ft consumption for efficient, low-heat operation suited to long-duration use.
  • Voltage: 24-Volt DC input for stable, low-voltage operation compatible with standard 24V DC power supplies and drivers.
  • Light Output: 292-Lumens/ft for bright, even illumination across the full length of the tape.
  • Color Rendering: 90+ CRI ensures accurate, true-to-life color rendering for display, retail, and residential lighting.
  • Color Temperature: 3000K warm white output for a comfortable, inviting ambiance.
  • Streamlite™ Series: Part of DiodeLED's Streamlite™ tape light lineup, built for flexible, low-profile installation.

Technical Specifications

  • Model: DI-24V-STMLT-30-016 (992431)
  • Voltage: 24-Volt DC
  • Wattage: 3.3-Watt/ft
  • Length: 16.4-ft
  • Lumen Output: 292-Lumens/ft
  • CRI: 90+
  • Color Temperature: 3000K
  • Series: Streamlite™

Typical Applications

  • Under-Cabinet and Millwork Lighting
  • Cove and Architectural Accent Lighting
  • Display Case and Retail Shelf Lighting
  • Residential and Commercial Ambient Lighting
  • Linear Channel and Extrusion Installations

Why DiodeLED?

DiodeLED's Streamlite™ tape light combines consistent 292-Lumens/ft output, accurate 90+ CRI color rendering, and efficient 24-Volt DC low-voltage operation in a flexible 16.4-ft reel format. This makes the DI-24V-STMLT-30-016 a reliable choice for electrical professionals and designers seeking dependable, high-quality linear LED lighting for residential and commercial installations.

Manufacturer Resources

Product Specs

Product Wattage:
3.3W/ft
list_batch:
DIO-20260924
Product Subgroup:
Light Fixtures
Product Type:
LED Tape Light & Channel
Series:
Streamlite
Department:
Electrical
Product Group:
Lighting

DiodeLED DI-24V-STMLT-27-016 – Frequently Asked Questions

1) Can I run DiodeLED Streamlite tape light on a 12V transformer?
No. Streamlite tape is built for 24V DC and needs a 24V DC supply or driver. Feeding it 12V will leave it badly underdriven, and there is no 12V version of this tape. If the existing transformer in the job is 12V, it has to be swapped for a 24V DC unit.
2) Which color temperature of DiodeLED Streamlite should I pick, 2700K or 3000K?
Streamlite 16.4 ft reels come in two warm whites: 2700K (DI-24V-STMLT-27-016) and 3000K (DI-24V-STMLT-30-016). 2700K reads like incandescent, which is what most residential millwork and hospitality spaces are matched to. 3000K is a half step cooler and cleaner, common in kitchens, retail display, and mixed commercial work. Both are 90+ CRI, so color accuracy is the same either way. If you are adding to existing lighting, match the temperature already installed rather than mixing the two in one sightline.
3) Will DiodeLED Streamlite tape fit inside an aluminum channel or extrusion?
Yes, it is a flexible low-profile tape intended for channel and extrusion installs, along with coves, cabinetry, and display fixtures. The channel, end caps, and lens are separate items and are not supplied with the reel, as are the 24V DC driver and any splice or feed leads.
4) How long a continuous run can I get without splicing Streamlite tape light?
Each reel is 16.4 ft of continuous tape, so a single-feed run up to that length needs no splice. Longer runs are built by adding reels, and each one should be home-run back to the supply rather than daisy-chained end to end past the reel length, so voltage drop does not dim the far end.
5) Does 90+ CRI matter for retail display and cabinetry lighting?
It does when the light is landing on merchandise, finishes, or food. Streamlite is rated 90+ CRI, which keeps reds and skin tones from going flat, so it holds up in display cases, retail shelving, and residential kitchens where a lower-CRI tape makes materials look washed out. For a back-of-house or utility run the CRI matters far less.
6) What is the exact part number for the 3000K DiodeLED Streamlite 16.4 ft reel?
DI-24V-STMLT-30-016 is the 3000K, 16.4 ft, 24V DC Streamlite reel. The 2700K version of the same reel is DI-24V-STMLT-27-016. Both are 3.3W/ft and 90+ CRI.
