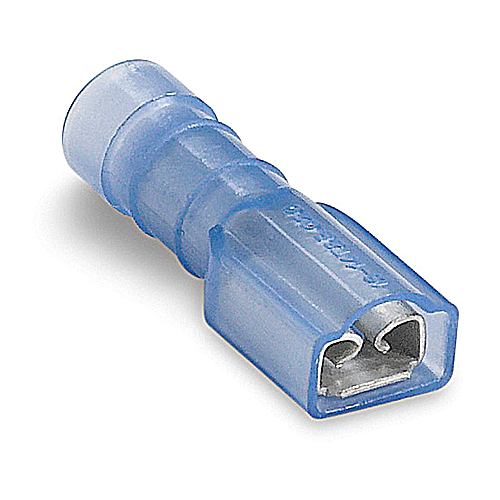

Disconnects
Certifications
- CSA
- UL
Features
- Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Manufacturer Resources
Product Specs

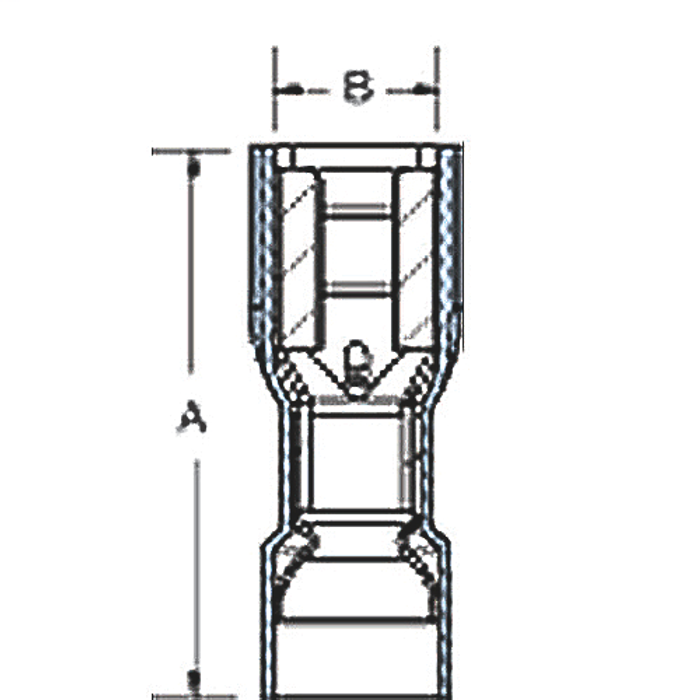

- A Inches :
- 0.89
- Alternate Package Qty:
- RBD18377
- Application Tools:
- WT145C, WT2000, WT112M, ERG4001, ERG4003
- B Inches :
- 0.3
- Color:
- Blue
- Disconnect Type:
- Female - 187 Series
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 100
- Insulation Type:
- Fully Insulated Nylon
- Material:
- Brass
- Maximum Insulation Inches :
- 0.17
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 8.1
- Package Length:
- 12.2
- Package Type:
- Standard
- Package Width:
- 10.2
- Product Group:
- Circuit Protection
- Recommended Tool:
- ERG4002
- Rohs Compliance:
- Yes (exemption 06)
- Stock Thickness:
- 0.03
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 3.75 lbs. per 1000
- Tab Size:
- .187 x .032
- Temperature Rating:
- 105°C
- Terminal Series:
- RBD
- Voltage Rating:
- 600V
- Wire Range:
- 16-14
- Department:
- Electrical
- Product Subgroup:
- Disconnects
