Male Tab
Certifications
- UL
- CSA
Manufacturer Resources
Product Specs

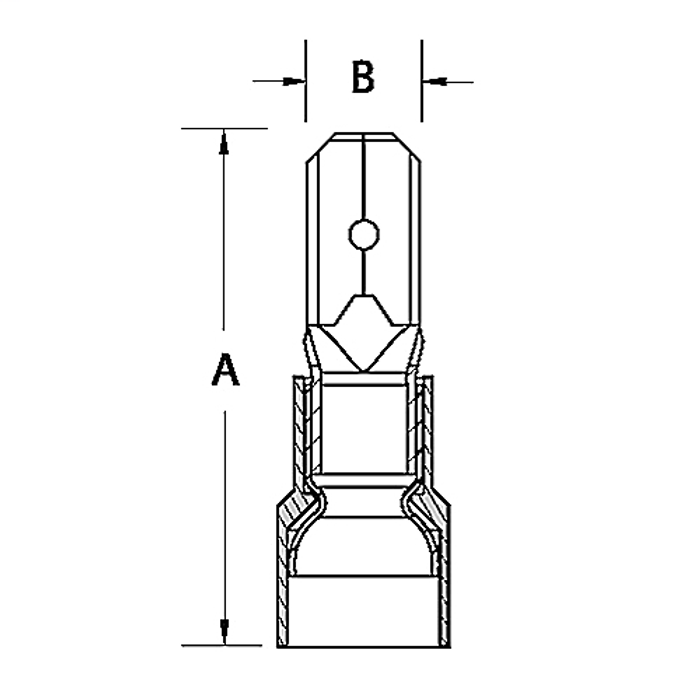

- A Inches :
- 0.87
- Color:
- Yellow
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 100
- Insulation Type:
- Insulated Vinyl
- Material:
- Brass
- Maximum Insulation Inches :
- 0.17
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 3
- Package Length:
- 7.25
- Package Type:
- Standard
- Package Width:
- 4.7
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes (exemption 06)
- Stock Thickness:
- 0.03
- Style:
- Male - 187 Series
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 0.25 lbs. per 100
- Tab Size:
- .187 x .020
- Temperature Rating:
- 105°C
- Terminal Series:
- RBD
- Voltage Rating:
- 600V
- Wire Range:
- 16-14
- Department:
- Electrical
