Disconnects
Certifications
- UL
- CSA
Features
- Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Manufacturer Resources
Product Specs

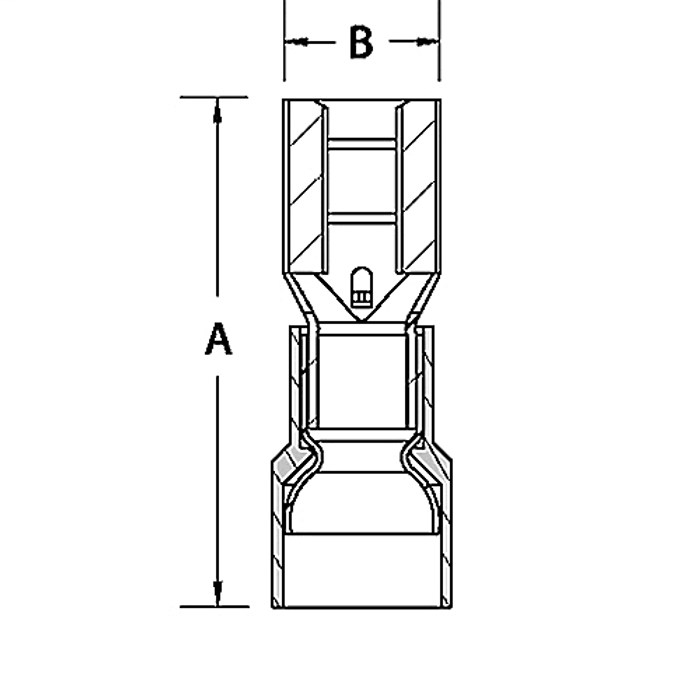

- A Inches :
- 0.87
- Alternate Package Qty:
- B250G
- Application Tools:
- WT110M
- B Inches :
- 0.31
- Color:
- Metallic
- Disconnect Type:
- Female - 250 Series
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 100
- Insulation Type:
- Non-Insulated
- Material:
- Brass
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 7.25
- Package Length:
- 10.25
- Package Type:
- Standard
- Package Width:
- 9
- Product Group:
- Circuit Protection
- Recommended Tool:
- WT110M
- Rohs Compliance:
- Yes (exemption 06)
- Stock Thickness:
- 0.03
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 0.31 lbs. per 100
- Tab Size:
- .250 x .032
- Temperature Rating:
- 150°C
- Terminal Series:
- B
- Voltage Rating:
- 600V
- Wire Range:
- 16-14
- Department:
- Electrical
- Product Subgroup:
- Disconnects
