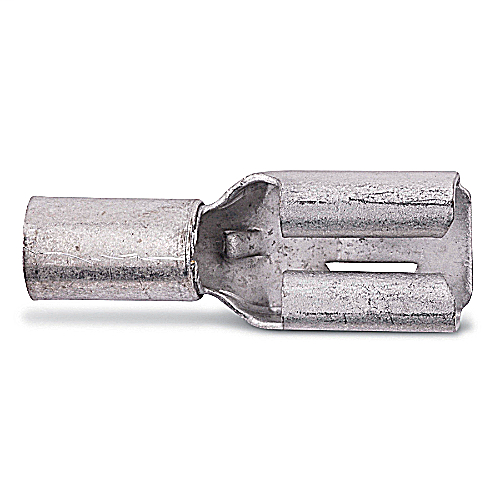

Disconnects
Certifications
- UL
- CSA
Features
- Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Manufacturer Resources
Product Specs

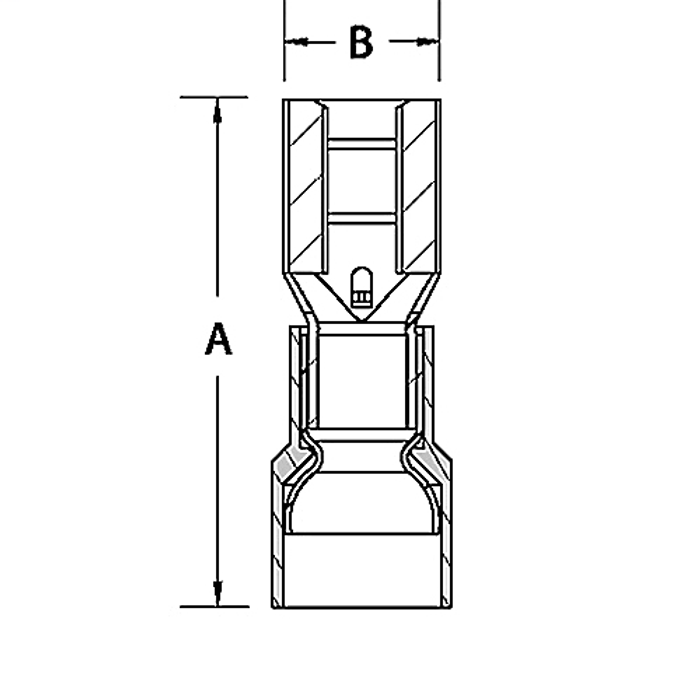

- A Inches :
- 0.73
- Alternate Package Qty:
- C250
- Application Tools:
- WT110M, WT111M, WT112M, WT2000, ERG4002
- B Inches :
- 0.31
- Color:
- Metallic
- Disconnect Type:
- Female - 250 Series
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 50
- Insulation Type:
- Non-Insulated
- Material:
- Brass
- Order Multiple:
- 50
- Outer Package:
- 250
- Package Height:
- 7.3
- Package Length:
- 10.7
- Package Type:
- Standard
- Package Width:
- 8.9
- Product Group:
- Circuit Protection
- Recommended Tool:
- ERG4002
- Rohs Compliance:
- Yes (exemption 06)
- Stock Thickness:
- 0.04
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 4.38 lbs. per 1000
- Tab Size:
- .250 x .032
- Temperature Rating:
- 150°C
- Terminal Series:
- C
- Voltage Rating:
- 600V
- Wire Range:
- 10-Dec
- Department:
- Electrical
- Product Subgroup:
- Disconnects
