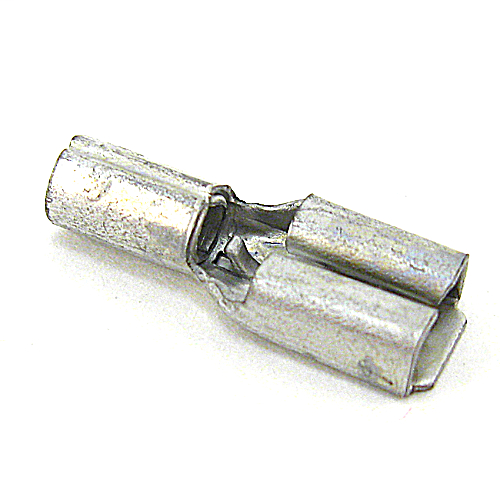

Disconnects
Features
- Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Certifications
- UL
- CSA
Manufacturer Resources
Product Specs
- A Inches :
- 0.64
- Alternate Package Qty:
- RAD18187A
- Application Tools:
- WT111M, WT112M, ERG4002, WT2000
- B Inches :
- 0.23
- Color:
- Metallic
- Disconnect Type:
- Female - 187 Series
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 100
- Insulation Type:
- Non-Insulated
- Material:
- Brass
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 7.2
- Package Length:
- 10.5
- Package Type:
- Standard
- Package Width:
- 8.75
- Product Group:
- Circuit Protection
- Recommended Tool:
- ERG4002
- Rohs Compliance:
- Yes (exemption 06)
- Stock Thickness:
- 0.03
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 2.5 lbs. per 1000
- Tab Size:
- .187 x .020
- Temperature Rating:
- 150°C
- Terminal Series:
- BD
- Voltage Rating:
- 600V
- Wire Range:
- 16-14
- Department:
- Electrical
- Product Subgroup:
- Disconnects
