Disconnects
Certifications
- UL
- CSA
Features
- Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Manufacturer Resources
Product Specs

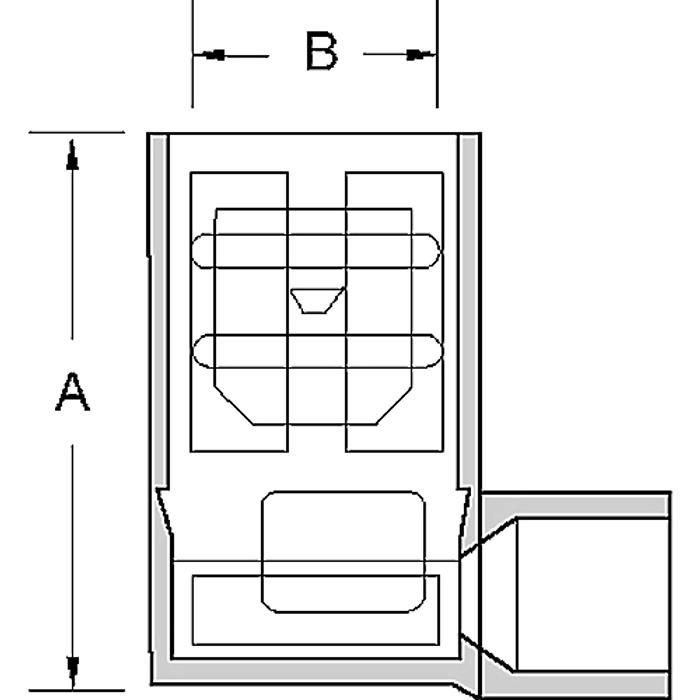

- A Inches :
- 0.74
- Alternate Package Qty:
- RAD1877F
- Application Tools:
- WT111M, WT112M, ERG4002, WT2000
- B Inches :
- 0.59
- Color:
- Red
- Disconnect Type:
- Female - 187 Series Flag
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 50
- Insulation Type:
- Fully Insulated Nylon
- Material:
- Brass
- Maximum Insulation Inches :
- 0.15
- Order Multiple:
- 50
- Outer Package:
- 250
- Package Height:
- 6.4
- Package Length:
- 3.3
- Package Type:
- Bulk
- Package Width:
- 2.4
- Product Group:
- Circuit Protection
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes (exemption 06)
- Stock Thickness:
- 0.03
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.88 lbs. per 1000
- Tab Size:
- .187 x .032
- Temperature Rating:
- 105°C
- Terminal Series:
- RAD
- Voltage Rating:
- 600V
- Wire Range:
- 22-18
- Department:
- Electrical
- Product Subgroup:
- Disconnects
