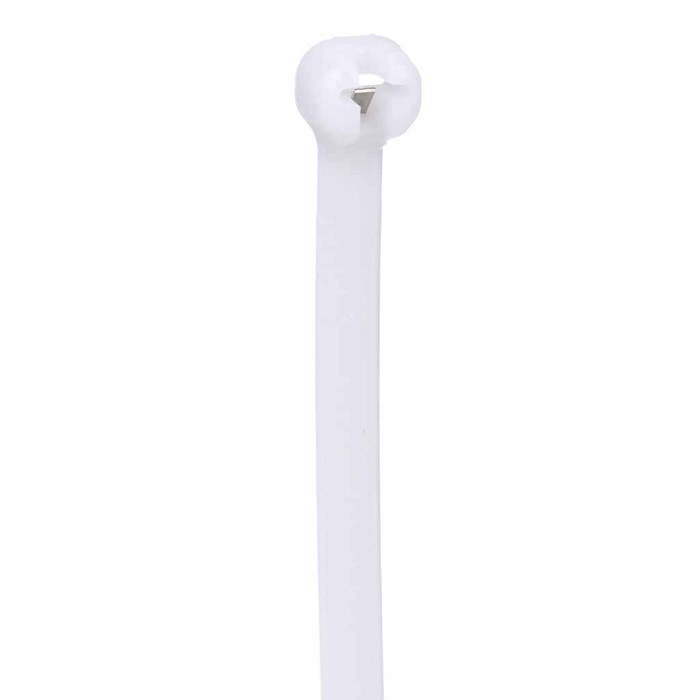

Panduit Dome-Top Cable Tie 8" 50lb Tensile Strength Nylon 6.6 Natural

Panduit Dome-Top Cable Tie 8" 50lb Tensile Strength Nylon 6.6 Natural

Professional Cable Management with Superior Holding Power

Panduit Dome-Top Cable Ties deliver reliable cable bundling performance with 50lb minimum loop tensile strength and durable Nylon 6.6 construction. These 8-inch cable ties feature natural color finish and accommodate bundle diameters from 0.06" to 2", making them ideal for professional installations requiring secure cable management in indoor environments with operating temperatures from -76�F to 185�F.

Professional Features & Benefits

• 50lb Tensile Strength: Provides secure holding power for demanding cable management applications requiring reliable long-term performance.
• 8" Length: Offers versatile sizing for bundle diameters up to 2 inches, accommodating various cable grouping requirements.
• Nylon 6.6 Material: Delivers exceptional durability and chemical resistance for professional-grade installations.
• Wide Temperature Range: Operates reliably from -76�F to 185�F, ensuring performance across diverse environmental conditions.
• UL 62275 Listed: Meets rigorous safety standards including CSA certification and RoHS compliance for professional applications.
• Dome-Top Design: Features smooth, rounded head that reduces snag hazards and provides professional appearance.
• Natural Color: Blends discretely with most cable installations while maintaining visibility for inspection and maintenance.

Technical Specifications

• Any Reason Not To Sell: N
• Arra Compliant: Y
• Body Thickness In: 0.045
• Body Thickness Mm: 1.2
• Body Width In: 0.185
• Body Width Mm: 4.7
• California Pro65 Cancer: No
• Country Of Origin: Costa Rica, Malaysia
• Ean: 74983411764
• Environment: Indoor
• For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
• Gtin Carton: 5.0075E+13
• Gtin Package: 74983411764
• Hazardous Material Flag: N
• Lead Content Indicator: N
• Material Description: Nylon 6.6
• Maximum Bundle Diameter In: 2
• Maximum Bundle Diameter Mm: 51
• Maximum Operating Temperature C: 85
• Maximum Operating Temperature F: 185
• Mercury Content Indicator: N
• Military Cross Reference Number: MS3367-1-9
• Min Order Qty: 1,000.00
• Min Order Uom: Piece
• Minimum Bundle Diameter In: 0.06
• Minimum Bundle Diameter Mm: 1.5
• Minimum Installation Temperature C: -20
• Minimum Installation Temperature F: -4
• Minimum Loop Tensile Strength Lb: 50
• Minimum Loop Tensile Strength N: 222
• Minimum Operating Temperature C: -60
• Minimum Operating Temperature F: -76
• Overall Length In: 8
• Overall Length Mm: 203
• Pallet Quantity: 168,000
• Pallet Volume: 53.880653
• Pallet Weight: 590.8392
• Product Color: Natural
• Product Material: Nylon 6.6
• Product Segment: IEI
• Product Type: Cable Tie
• Reach Status: N
• Restricted Use Of Hazardous Substances: N
• Rohs Compliant: Compliant
• Standard Carton Volume Ft3: 0.3207
• Standard Carton Weight Pounds: 3.5169
• Standard Package Volume Ft3: 0.0321
• Standard Package Weight Pounds: 0.3517
• Std Carton Height In: 6.2
• Std Carton Height Mm: 157.48
• Std Carton Length In: 10.5
• Std Carton Length Mm: 266.7
• Std Carton Width In: 8.35
• Std Carton Width Mm: 212.09
• Std Ctn Qty: 1000
• Std Package Height In: 1.45
• Std Package Height Mm: 36.83
• Std Package Length In: 9.55
• Std Package Length Mm: 242.57
• Std Package Width In: 5.65
• Std Package Width Mm: 143.51
• Std Pkg Qty: 100
• Std Pkg Uom: Piece
• Sub Brand: Dome-Top�
• Uom Ea Pk: PK

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Cable Management
• Data Center Infrastructure
• Industrial Control Systems
• Commercial Building Installations
• Telecommunications Equipment
• HVAC System Wiring
• Security System Installations

Why Choose Panduit Quality?

Panduit cable ties deliver proven reliability with UL 62275 listing, CSA certification, and RoHS compliance. The Nylon 6.6 construction ensures long-term durability in professional installations, while the wide operating temperature range from -76�F to 185�F provides dependable performance across diverse environmental conditions.
