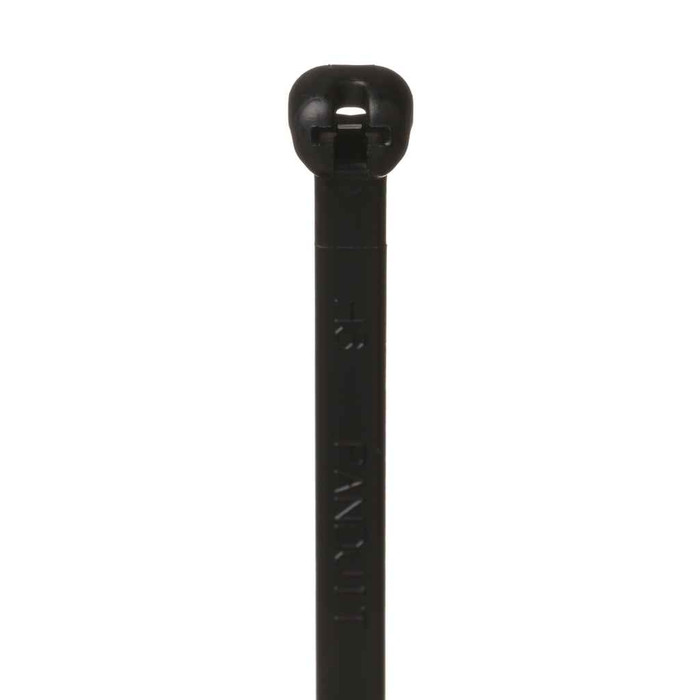

Panduit Dome-Top� Barb Cable Tie 8" 50lb UV-Resistant Nylon 6.6 Black

Panduit Dome-Top� Barb Cable Tie 8" 50lb UV-Resistant Nylon 6.6 Black

Professional Cable Management with Superior Weather Resistance

The Panduit Dome-Top� Barb Cable Tie delivers reliable cable bundling performance with 50lb tensile strength and UV-resistant Nylon 6.6 construction. Designed for indoor/outdoor applications, this 8" black cable tie features weather-resistant properties and operates in extreme temperatures from -76�F to 185�F, making it ideal for demanding professional installations.

Professional Features & Benefits

• 50lb Tensile Strength: Provides secure bundling for heavy-duty cable management applications requiring reliable hold strength.
• UV-Resistant Nylon 6.6 Material: Ensures long-term durability and performance in outdoor environments with extended UV exposure.
• 8" Length with 2" Maximum Bundle Diameter: Accommodates various cable bundle sizes while maintaining secure fastening capability.
• Wide Temperature Range (-76�F to 185�F): Maintains structural integrity and performance across extreme operating conditions.
• Weather-Resistant Properties: Delivers consistent performance in harsh environmental conditions including moisture and temperature fluctuations.
• Multiple Certifications (UL 62275, CSA, RoHS): Meets stringent industry standards for safety, quality, and environmental compliance.
• Dome-Top� Barb Design: Features specialized barb configuration for enhanced grip and professional installation appearance.

Technical Specifications

• Any Reason Not To Sell: N
• Arra Compliant: Y
• Body Thickness In : 0.045
• Body Thickness Mm : 1.2
• Body Width In : 0.185
• Body Width Mm : 4.7
• California Pro65 Cancer: No
• Country Of Origin: Costa Rica, Malaysia
• Ean: 74983411771
• Environment: Indoor/Outdoor
• For Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
• Gtin Carton: 5.0075E+13
• Gtin Package: 74983411771
• Hazardous Material Flag: N
• Lead Content Indicator: N
• Material Description: Nylon 6.6 (UV-Resistant, Weather-Resistant)
• Maximum Bundle Diameter In : 2
• Maximum Bundle Diameter Mm : 51
• Maximum Operating Temperature C : 85
• Maximum Operating Temperature F : 185
• Mercury Content Indicator: N
• Min Order Qty: 1,000.00
• Min Order Uom: Piece
• Minimum Bundle Diameter In : 0.06
• Minimum Bundle Diameter Mm : 1.5
• Minimum Installation Temperature C : -20
• Minimum Installation Temperature F : -4
• Minimum Loop Tensile Strength Lb : 50
• Minimum Loop Tensile Strength N : 222
• Minimum Operating Temperature C : -60
• Minimum Operating Temperature F : -76
• Overall Length In : 8
• Overall Length Mm : 203
• Pallet Quantity: 168,000
• Pallet Volume: 53.880653
• Pallet Weight: 584.22
• Product Color: Black
• Product Material: Nylon 6.6
• Product Segment: IEI
• Product Type: Cable Tie
• Reach Status: N
• Resistance Properties: UV-Resistant, Weather-Resistant
• Restricted Use Of Hazardous Substances: N
• Rohs Compliant: Compliant
• Standard Carton Volume Ft3: 0.3207
• Standard Carton Weight Pounds: 3.4775
• Standard Package Volume Ft3: 0.0321
• Standard Package Weight Pounds: 0.3478
• Std Carton Height In: 6
• Std Carton Height Mm: 152.4
• Std Carton Length In: 10.3
• Std Carton Length Mm: 261.62
• Std Carton Width In: 8.35
• Std Carton Width Mm: 212.09
• Std Ctn Qty: 1000
• Std Package Height In: 1.2
• Std Package Height Mm: 30.48
• Std Package Length In: 9.4
• Std Package Length Mm: 238.76
• Std Package Width In: 5.75
• Std Package Width Mm: 146.05
• Std Pkg Qty : 100
• Std Pkg Uom: Piece
• Sub Brand: Dome-Top�
• Uom Ea Pk: PK

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Telecommunications and Data Center Cable Management
• Industrial Equipment Wire Bundling
• Outdoor Infrastructure Cable Securing
• HVAC System Wire Organization
• Electrical Panel and Junction Box Applications
• Marine and Harsh Environment Installations
• Automotive and Transportation Wire Harnesses

Why Choose Panduit Quality?

Panduit Dome-Top� cable ties deliver proven reliability with comprehensive certifications including UL 62275, CSA, and RoHS compliance. The UV-resistant, weather-resistant Nylon 6.6 construction ensures long-term performance in demanding applications, while the specialized barb design provides secure, professional installations that maintain integrity across extreme temperature ranges.
