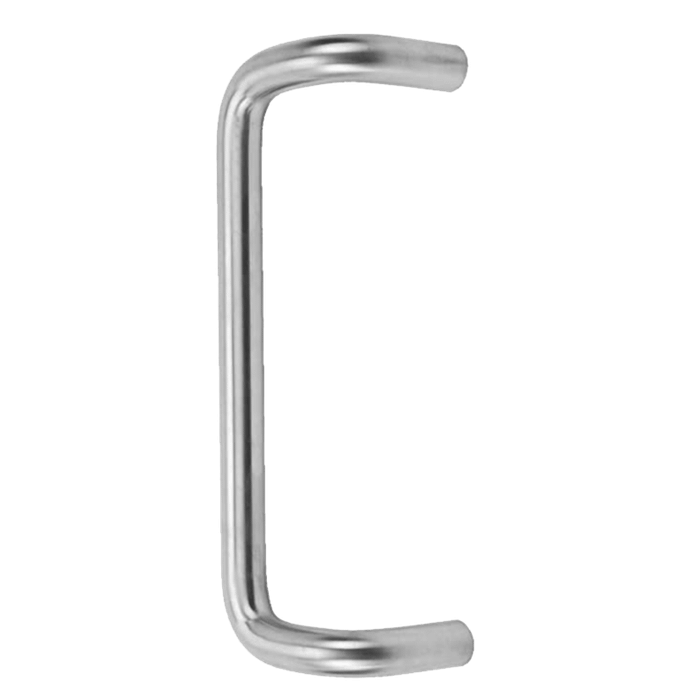

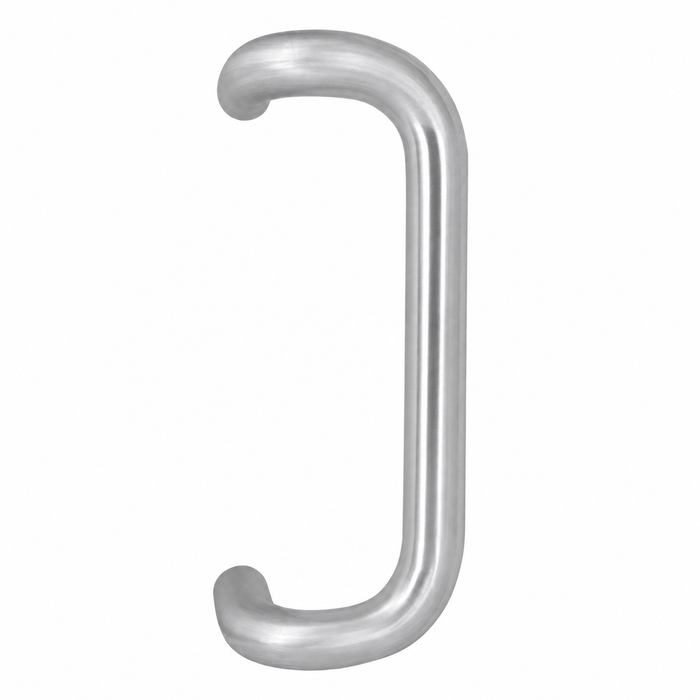

Don-Jo 1156 Offset Door Pull — 90° Offset, 3-1/2" Projection, 2-1/2" Clearance, 1" Diameter

Don-Jo 1156 Offset Door Pull — 90° Offset, 3-1/2" Projection, 2-1/2" Clearance, 1" Diameter

(No reviews yet) Write a Review

Model: 1156-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$75.70
$66.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1156 Offset Door Pull — 90° Offset, 3-1/2" Projection, 2-1/2" Clearance, 1" Diameter

The Don-Jo 1156 is a commercial-grade offset door pull engineered for professional door hardware applications requiring a 90-degree offset configuration. Featuring a 3-1/2" projection and 2-1/2" clearance with a 1" diameter grip, this pull is available in center-to-center (CTC) lengths of 8", 9", 10", 12", and 18", with corresponding overall lengths of 9", 10", 11", 13", and 19". Compliant with ANSI J402 standards, the 1156 is offered in a range of finishes to suit diverse architectural requirements and is designed for commercial installations where durability and consistent performance are essential.

Key Features

  • 90-Degree Offset Design: Offset-hung configuration provides ergonomic grip positioning and clean architectural lines for commercial door applications.
  • 3-1/2" Projection: Generous projection ensures comfortable hand clearance and ease of use across a wide range of users and door types.
  • 2-1/2" Clearance: Provides adequate space between the grip and door surface for comfortable, unrestricted hand access.
  • 1" Diameter Grip: Uniform 1" diameter bar delivers a solid, professional feel suited to high-traffic commercial environments.
  • Multiple CTC Length Options: Available in 8", 9", 10", 12", and 18" center-to-center lengths (overall lengths: 9", 10", 11", 13", and 19") for flexible installation configurations.
  • Broad Finish Selection: Available in finishes 313, 315, 605, 628, 629, and 630 to complement a variety of door and frame aesthetics.
  • ANSI J402 Compliant: Meets ANSI J402 standards, ensuring reliable performance and compatibility with commercial door hardware specifications.
  • Commercial-Grade Construction: Designed and rated for commercial use, making it suitable for demanding, high-traffic door applications.

Certifications & Compliance

  • ANSI J402 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Pulls and Push Plates
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Commercial/Residential: Commercial
  • Hang Type: Offset Hung
  • Product Model: 1156, 1157, 1158, 1159-1160
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 1156?

Don-Jo 1156 door pulls deliver professional-grade reliability through ANSI J402-compliant construction and a versatile offset-hung design rated for commercial use. With a 1" diameter grip, 3-1/2" projection, and a broad selection of CTC lengths and finishes, the 1156 is engineered to meet the demands of high-traffic commercial environments where consistent performance and architectural flexibility are equally important.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Pulls and Push Plates
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Product Model:
1156, 1157, 1158, 1159-1160
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 1156-628 – Frequently Asked Questions

1) What length Don-Jo 1156 offset pull do I order, and is the length the center-to-center or the overall size?
The 1156 is ordered by center-to-center: 8, 9, 10, 12, and 18 inches, with overall lengths of 9, 10, 11, 13, and 19 inches respectively. CTC is your hole spacing, so drill to that number; the overall figure is what the buyer sees on the door face. Each CTC runs an inch longer overall, so an 18 inch CTC pull eats 19 inches of door.
2) How much hand clearance does the Don-Jo 1156 pull give behind the grip?
Clearance behind the grip is 2-1/2 inches, with a 3-1/2 inch total projection off the door face and a 1 inch diameter bar. That 2-1/2 inches is the usable gap for a gloved hand or a knuckle, and the 3-1/2 inch projection is what you need to account for in a corridor, next to a return wall, or where the door swings past adjacent hardware.
3) What is the difference between the standard Don-Jo 1156 and the back-to-back pair version?
Standard is a single pull for one face of the door. The Back To Back Pair, Type 3 mount, is two pulls mounted opposite each other through the same holes, so both sides of the door get a grip off one set of through-bolts. Pick back-to-back for a push/pull opening with no closer-side plate, and standard when the other face carries a push plate or a lock trim.
4) I need an offset pull for a 1-3/8 inch residential door, will the Don-Jo 1156 work?
The 1156 is a commercial pull, and for a thin residential door where the through-bolt length is the constraint, the Deltana OHP620 back-to-back offset handle set is specified for 1-1/8 to 1-3/8 inch doors and is the safer fit. Use the 1156 where the opening is a commercial 1-3/4 inch door, which is what its offset-hung, ANSI J402 configuration is built around.
5) What pull should I use if the existing holes are wider than 18 inches on center?
The Don-Jo 1156 tops out at 18 inch center to center with a 19 inch overall length. For longer spans, the ABH AB3330 offset round end pull is offered with custom length options, and the Deltana SSPOBB24 modern offset and SSPORBB24 round offset back to back pulls are both 24 inch. Measure the existing hole centers before ordering so the new pull lands on the same prep.
6) What is a straight equivalent to the Don-Jo 1156 offset pull from another maker?
The Ives 8169 is a C style offset solid door pull with a 1 inch diameter and heavy duty mounting, which lines up with the Don-Jo 1156 as a 1 inch diameter offset hung pull. The ABH AB3310 is an offset flat end door pull for commercial surface mount, and the ABH AB3330 is an offset round end pull offered with custom length options if the opening needs a center to center dimension outside the 1156 range of 8, 9, 10, 12 and 18 inches.
7) If the door does not need a 90 degree offset, what pull is used instead?
A straight pull replaces the offset when the grip does not need to stand off the door face. The Ives 8103HD is a heavy duty straight door pull, 1 inch round, with through bolt mounting, matching the Don-Jo 1156 grip diameter in a straight bar. The Ives 8102HD is a heavy duty straight pull with a 3/4 inch round bar and 1-1/2 inch clearance for a slimmer grip and tighter standoff than the 1156 2-1/2 inch clearance. The ABH AB3300 is a straight flat end pull handle at 1.00 inch diameter.
8) Which pulls look like a Don-Jo 1156 substitute but will not do the same job?
Several nearby parts are not offset door pulls. The Trimco 1001-1 heavy duty push plate at 3 inch by 12 inch and the Trimco 1041 half-round push plate at 8 inch by 16 inch are push side plates with no grip. The Trimco 1070 series classic push/pull plates at 3-1/2 inch by 15 inch combine a plate with the grip, so the mounting footprint is the plate, not two through bolt centers at 8 to 18 inches like the Don-Jo 1156. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inch height, that mounts around a rim cylinder rather than serving as a general door pull. The Trimco 1035 Ultimate Restroom Pull is a heavy duty restroom specific pull.
9) What finishes does the Don-Jo 1156 offset pull come in?
Four finishes are orderable: 605 polished brass, 613 oil rubbed bronze, 628 satin aluminum, and 630 satin stainless steel. For matching an existing building standard, 630 is the common commercial default and 628 pairs with aluminum storefront and anodized frames. Both the standard and back-to-back configurations are offered in all four.
10) Is the Don-Jo 1156 an offset pull or a straight pull, and which should I use?
The 1156 is offset hung, a 90 degree offset, meaning the grip runs parallel to the door but stands off on right-angle legs. Offset keeps the whole bar at one distance from the face, which is what you want on a full-height glass or flush door where a hand grabs anywhere along the bar. A straight pull with its ends bolted directly to the face, like the ABH AB3300 or the Ives 8103HD, sits tighter to the door and is the choice when projection into a corridor is a concern.
11) Is the Don-Jo 1156 pull rated for commercial high traffic use, and does it meet a hardware standard?
Commercial rated, and compliant with ANSI J402. That is the pull-handle designation under the ANSI/BHMA auxiliary hardware standard, which is what a spec on a drawing calls out for door pulls in schools, hospitals, and office buildings. The 1 inch solid bar diameter is the commercial norm for that duty.
12) What is the difference between the Don-Jo 1156, 1157, 1158, and 1159-1160?
Those are the sibling models in the same offset pull family, and 1156 is the one carrying the 90 degree offset with 3-1/2 inch projection, 2-1/2 inch clearance, and a 1 inch grip. If a submittal or an existing door calls out 1157, 1158, or the 1159-1160, it is the same family but a different configuration, so order by the exact model number on the schedule rather than assuming the pulls interchange.
13) What other offset door pulls could I use instead of the Don-Jo 1156?
For a like-for-like offset in the same 1 inch bar class, the Ives 8169 is a C style offset solid pull at 1 inch diameter, and the ABH AB3330 offset round end pull is offered with custom length options if none of the 8, 9, 10, 12, or 18 inch CTC sizes land where you need them. The Ives 8145EZHD is a 45 degree offset rather than 90, which changes the grip angle, and the ABH AB3310 is an offset with flat ends instead of round.
14) Do I need a push plate on the other side of the door with the Don-Jo 1156 pull?
Only if the door is a push/pull opening and you are not using the back-to-back configuration. The 1156 standard model dresses one face; the opposite face typically takes a push plate, such as a Trimco 1001-1 at 3 by 12 inches or a larger Trimco 1041 at 8 by 16 inches for doors that get pushed with a cart or a shoulder. If you want a grip on both faces instead, order the Back To Back Pair, Type 3 mount version rather than two standard pulls.
15) Is there an offset pull with a shallower angle than the Don-Jo 1156?
Yes. The Ives 8145 is a 45 degree offset door pull with heavy duty mounting hardware in the ADA compliant EZ series, so the grip angles back rather than turning the full 90 degrees the Don-Jo 1156 uses. Choose by how the hand approaches the door: the 45 degree geometry sweeps toward the pull, while the 1156 90 degree offset holds the 1 inch bar parallel to the face at 2-1/2 inch clearance.
16) Can I standardize a building on the Don-Jo 1156 and still cover push side and restroom doors?
The Don-Jo 1156 covers the pull side across offices, schools, healthcare, retail, industrial, multi-tenant residential and government buildings in 605, 613, 628 and 630 finishes. For the push side of the same openings, the Trimco 1001-1 heavy duty push plate is 3 inch by 12 inch and the Trimco 1041 half-round push plate is 8 inch by 16 inch. Where one door needs both functions on the same plate, the Trimco 1070 series classic push/pull plates are 3-1/2 inch by 15 inch, and restroom doors can take the Trimco 1035 Ultimate Restroom Pull.
17) I am standardizing pulls across a building, can I mix the Don-Jo 1156 in different lengths on different doors?
Yes, and that is the usual approach. All five CTC lengths, 8 through 18 inches, share the same 1 inch grip diameter, 3-1/2 inch projection, and 2-1/2 inch clearance, so a short pull on an office door and a long pull on a main entry read as the same hardware and feel identical in the hand. Hold one finish across the fleet, 630 satin stainless or 628 satin aluminum being the usual choices, and only the length changes door to door.
