Don-Jo 1157 Offset Door Pull —...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$76.20
$63.04

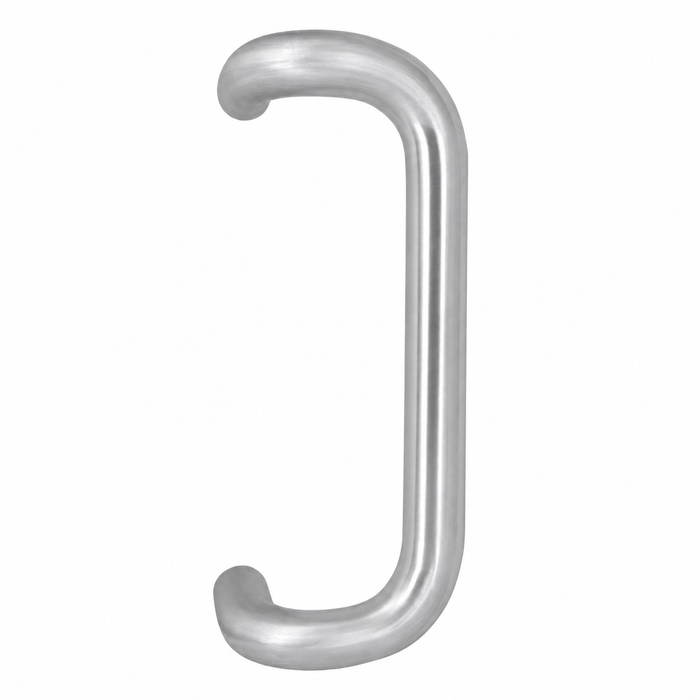

Don-Jo 1157 Offset Door Pull — 90° Offset, 3-1/2" Projection, 2-1/2" Clearance, 1" Diameter

Don-Jo 1157 Offset Door Pull — 90° Offset, 3-1/2" Projection, 2-1/2" Clearance, 1" Diameter

(No reviews yet) Write a Review

Model: 1157-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$76.20
$63.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1157 Offset Door Pull — 90° Offset, 3-1/2" Projection, 2-1/2" Clearance

The Don-Jo 1157 is a commercial-grade offset door pull engineered for demanding door hardware applications. Featuring a precise 90-degree offset design with a 3-1/2" projection and 2-1/2" clearance, this pull provides a comfortable, ergonomic grip while maintaining a professional appearance. With a 1" diameter bar and center-to-center (CTC) options of 8", 9", 10", 12", and 18" — corresponding to overall lengths of 9", 10", 11", 13", and 19" — the 1157 offers exceptional versatility for a wide range of commercial door configurations. Available in multiple finishes including 313, 315, 605, 628, 629, and 630 to complement virtually any architectural aesthetic.

Key Features

  • 90-Degree Offset Design: Offset-hung configuration provides optimal hand clearance and ergonomic grip for high-traffic commercial doors.
  • 3-1/2" Projection: Generous projection distance ensures comfortable hand placement and ease of use for all users.
  • 2-1/2" Clearance: Adequate clearance between the pull bar and door surface accommodates a full hand grip without obstruction.
  • 1" Diameter Bar: Substantial 1" diameter provides a solid, confident grip and contributes to the pull's long-term structural durability.
  • Multiple CTC Options: Available in 8", 9", 10", 12", and 18" center-to-center lengths (overall lengths: 9", 10", 11", 13", and 19") for flexible installation across various door sizes.
  • Broad Finish Selection: Offered in six finishes — 313, 315, 605, 628, 629, and 630 — to coordinate with existing door hardware and architectural design schemes.
  • Commercial-Grade Construction: Designed and rated for commercial applications, ensuring reliable performance in high-use environments.
  • ANSI J402 Compliance: Meets ANSI J402 standards, confirming adherence to recognized industry specifications for door pulls.

Certifications & Compliance

  • ANSI J402 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Pulls and Push Plates
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Commercial/Residential: Commercial
  • Hang Type: Offset Hung
  • Product Model: 1156, 1157, 1158, 1159-1160
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Medical Offices
  • Retail Establishments and Storefronts
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo 1157?

Don-Jo door pulls are built to meet the rigorous demands of commercial environments, with the 1157 delivering ANSI J402-compliant performance in an offset-hung design that prioritizes both function and aesthetics. The 1" diameter bar, multiple CTC sizing options, and broad finish selection make this pull a versatile solution for architects, contractors, and facility managers seeking dependable, professional-grade door hardware. Engineered for commercial applications where consistent performance and lasting quality are essential.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Pulls and Push Plates
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Product Model:
1156, 1157, 1158, 1159-1160
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 1157-628 – Frequently Asked Questions

1) Will the Don-Jo 1157 pull fit my existing door pull holes at 10 inch center to center?
The 1157 is drilled 10 inches center to center, with an 11 inch overall length. That is the only spacing this model comes in, so it drops onto an opening already bored on 10 inch centers. Don-Jo's offset pull family runs 8, 9, 10, 12 and 18 inch CTC (9, 10, 11, 13 and 19 inch overall) across models 1156 through 1159-1160, so if your existing holes are on 8 or 12 inch centers you want the sibling model, not the 1157.
2) Is a 90 degree offset pull like the Don-Jo 1157 better than a straight pull for a heavy entry door?
An offset pull puts the grip bar out away from the door face, so your knuckles clear the door when you haul it open. The 1157 offsets 90 degrees with a 3-1/2 inch projection and 2-1/2 inch clearance behind the 1 inch bar, which is a full hand's worth of room. A straight pull sits closer to the face and reads cleaner on glass or a narrow stile. If you want straight instead, the Ives 8103HD is a heavy duty straight pull on a 1 inch round bar; the Ives 8102HD is a lighter 3/4 inch bar with 1-1/2 inch clearance.
3) Is the Don-Jo 1157 a single pull or a back-to-back set with a push side?
The 1157 is ordered as an offset-hung pull, one per opening, with the finish and the 10 inch CTC model as the only choices. It is not sold as a matched back-to-back pair, so if you need a grip on both faces of the door you order two, or you look at a back-to-back product: the Deltana OHP620 off-set handle pull is sold as a back-to-back set, as are the Deltana SSPOBB24 and SSPORBB24 24 inch offset pulls. Pairing a pull with a push plate on the opposite face is the other common way to finish the opening, using something like the Trimco 1001-1 heavy duty push plate at 3 by 12 inches.
4) Will a 3-1/2 inch projection pull clear a door that swings into a corridor or against a wall?
Budget 3-1/2 inches off the door face for the 1157, since that is the projection of the 90 degree offset bar. On a door that opens flat against a return wall or a tight corridor pocket, that bar is the first thing to hit. Where projection is the constraint, a straight pull sits closer in, and the Ives 8102HD carries a stated 1-1/2 inch clearance on a 3/4 inch bar. Measure from the face of the door, not the frame.
5) I need a door pull that works for gloved hands and ADA compliant operation, is the Don-Jo 1157 the right one?
For a gloved grip, the 1157 gives you 2-1/2 inches of clearance behind a 1 inch bar, which is enough to get a full hand plus a work glove behind it. On the ADA question specifically, the Ives 8145EZHD 45 degree offset pull is the one carried as ADA compliant. If the accessibility spec is what has to be satisfied on the drawing, order against that one.
6) What is the closest equivalent to a Don-Jo 1157 offset door pull from another manufacturer?
The Ives 8169 C Style Offset Solid Door Pull is the nearest match in build. Like the Don-Jo 1157, it is an offset pull on a 1 inch diameter bar, and Ives rates the 8169 heavy duty with heavy duty mounting. The Don-Jo 1157 runs a 90 degree offset with a 3-1/2 inch projection and 2-1/2 inch clearance on center-to-center spacings of 8, 9, 10, 12 and 18 inches. If the opening already has 1 inch bar offset pulls and you are matching grip diameter and offset geometry, those two are the pair to compare.
7) I need a straight pull, not an offset one. What should I order instead of the Don-Jo 1157?
The Don-Jo 1157 is an offset hung pull, so the bar stands away from the door on a 90 degree offset with 2-1/2 inch clearance. For a straight bar on the same 1 inch grip diameter, the Ives 8103HD is a heavy duty straight door pull in 1 inch round with through bolt mounting, and the ABH AB3300 is a straight flat end commercial pull at 1.00 inch diameter. A straight pull mounts flat with the bar parallel to the door face, which changes the hand approach on the opening.
8) I need a longer offset pull than the Don-Jo 1157 goes. What are the options?
The Don-Jo 1157 tops out at an 18 inch center-to-center with a 19 inch overall length. For longer offset bars, the Deltana SSPOBB24 and the Deltana SSPORBB24 are both 24 inch offset door pulls, the first in a modern flat profile and the second with round offsets, and both are back-to-back sets. The ABH AB3330 series is an offset round end pull offered with custom length options if the opening needs a length between or beyond the standard runs.
9) Will a Don-Jo 1157 work as a night latch pull on a storefront door?
No. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inches high, in stainless steel construction, and it is the part that mounts over the cylinder on a night latch application. The Don-Jo 1157 is a plain offset grip pull with center-to-center spacings from 8 to 18 inches and no cylinder provision. If the door needs a cylinder pull, the two are not substitutes for each other.
10) Does the Don-Jo 1157 door pull meet ANSI J402?
Yes, the 1157 offset pull is ANSI J402 compliant, and it is rated for commercial use rather than residential. J402 is the door pull designation under the ANSI/BHMA A156.6 architectural door trim standard, which is the line most institutional and government specs reference for pulls.
11) What is the difference between the Don-Jo 1157 and the ABH AB3330 or Ives 8169 offset pull?
All three are offset commercial pulls, and the split is in bar shape and sizing. The 1157 runs a 1 inch round bar at a 90 degree offset, fixed at 10 inch CTC and 11 inches overall, in six finishes. The ABH AB3330 is an offset round end pull offered with custom length options, which is the one to look at when the existing hole spacing is nonstandard. The Ives 8169 is a C style offset solid pull, also 1 inch diameter, heavy duty. The ABH AB3310 is the flat end version of the offset if you want a squared-off bar end rather than round.
12) Can I standardize the same door pull across offices, classrooms and restrooms in one building?
The 1157 is a commercial-grade offset pull that goes on the same way at every opening, so one model number and one finish covers office, classroom, retail, healthcare, warehouse and multi-tenant doors in a building. Two places it does not carry the whole schedule: restroom doors where a hands-free or cylinder pull is specified, where the Trimco 1035 restroom pull is the purpose-built option, and any door where the accessibility spec calls out an ADA compliant pull.
13) Is the Don-Jo 1157 the same thing as a back-to-back pull set?
No. The Don-Jo 1157 is specified with center-to-center spacings of 8, 9, 10, 12 and 18 inches on a single offset bar. Products such as the Deltana OHP620 off-set handle pull and the Deltana SSPOBB24 24 inch modern offset door pulls are sold as back-to-back sets, meaning matched pulls mount opposite each other through the door. If you need a pull on both faces of the same door, order a back-to-back set; if you are pulling from one side, the 1157 covers it.
14) We are pulling a Don-Jo 1157 for a restroom door. Is there a better option?
For a restroom opening where the pull is used to exit without gripping with a clean hand, the Trimco 1035 Ultimate Restroom Pull is the purpose-built option, and Trimco rates it heavy duty. The Don-Jo 1157 is a general commercial offset pull with a 1 inch bar and 2-1/2 inch clearance, suited to office, school, healthcare, retail and government doors. The choice comes down to whether the door needs a restroom-specific pull form or a standard offset grip.
15) Can I substitute a Trimco 1070 push/pull plate for the Don-Jo 1157?
They are not interchangeable. The Trimco 1070 series is a classic push/pull plate at 3-1/2 by 15 inches, a flat plate applied to the door face, and the Trimco 1001-1 is a heavy duty push plate at 3 by 12 inches. The Don-Jo 1157 is an offset bar pull that stands 3-1/2 inches off the door with 2-1/2 inches of hand clearance. A plate gives a push surface or an integral pull edge; the 1157 gives a full hand grip. Swapping one for the other changes the door prep and the way the door is operated.
16) Do I need through-bolts to mount a Don-Jo 1157 on a hollow metal door?
Offset pulls take real pulling load at the mounting points, and on a high-traffic opening through-bolting is what keeps the posts from working loose, particularly on a hollow metal or aluminum door with no solid core to bite into. The 1157 is ordered with finish and the 10 inch CTC size only, so plan the fastening around your door construction. Peer products carried with through-bolt mounting called out include the Ives 8103HD and the ABH AB7200.
17) How does the Don-Jo 1157 compare to the Deltana SSP1210 contemporary pull?
The Deltana SSP1210 is a 12 inch contemporary pull sold single side, in Deltana's Contemporary Pulls line. The Don-Jo 1157 is an offset hung commercial pull on a 1 inch bar, offered at 8, 9, 10, 12 and 18 inch center-to-center with matching overall lengths of 9, 10, 11, 13 and 19 inches, and it meets ANSI J402. Both are single-side pulls; the difference is the offset commercial geometry and the ANSI J402 compliance on the 1157 versus the contemporary styling of the SSP1210.
