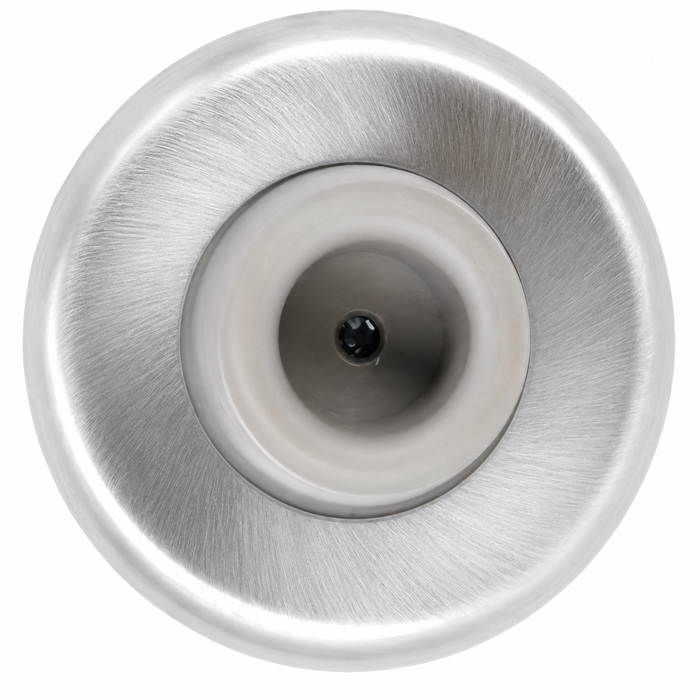

Don-Jo 1407 Wall Bumper — 1" Projection, 2-1/2" Diameter, Wrought Construction

Don-Jo 1407 Wall Bumper — 1" Projection, 2-1/2" Diameter, Wrought Construction

(No reviews yet) Write a Review

Model: 1407-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1407 Wall Bumper — 1" Projection, 2-1/2" Diameter, Wrought Construction

The Don-Jo 1407 is a commercial-grade wall bumper engineered to protect walls and door surfaces from impact damage in high-traffic environments. Constructed from durable wrought material, this wall bumper features a 1" projection and a 2-1/2" diameter profile, providing reliable door stop performance in a compact, low-profile form. Compliant with ANSI standards L22251 and L52251, the 1407 is available in ten finish options — 605, 606, 612, 613, 619, 620, 622, 625, 626, and 630 — to coordinate with virtually any commercial door hardware specification. Each unit ships with all required fasteners for straightforward installation.

Key Features

  • 1" Projection: Low-profile 1" projection keeps the bumper close to the wall surface, minimizing obstruction in corridors and high-traffic areas.
  • 2-1/2" Diameter: Generously sized 2-1/2" diameter contact face distributes door impact force effectively to protect wall surfaces.
  • Wrought Material Construction: Manufactured from wrought material for solid, long-lasting performance in demanding commercial applications.
  • Broad Finish Selection: Available in ten finishes — 605, 606, 612, 613, 619, 620, 622, 625, 626, and 630 — for seamless coordination with existing door hardware.
  • Complete Fastener Kit Included: Each unit includes 1 ea. #8 x 1-1/4" SMS screw, 1 ea. plastic anchor, and 1 ea. plastic drywall anchor for versatile mounting to a variety of wall substrates.
  • ANSI Compliant: Meets ANSI standards L22251 and L52251 for assured quality and compatibility with commercial hardware specifications.
  • Convenient Shelf Pack Quantity: Available in shelf packs of 50 units, ideal for contractors and facility managers stocking multiple installations.

Certifications & Compliance

  • ANSI L22251 Compliant
  • ANSI L52251 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Type: Door Stops - Wall
  • Commercial/Residential: Commercial
  • Product Projection: 1"
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 1407?

The Don-Jo 1407 Wall Bumper delivers dependable, commercial-grade door stop performance backed by ANSI compliance and wrought material construction built to withstand the rigors of high-traffic environments. Its broad selection of ten available finishes and included fastener kit make it a practical, specification-ready solution for architects, contractors, and facility managers seeking reliable wall protection without compromise.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Door Stops & Holders
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Wall
Commercial/Residential:
Commercial
Product Model:
1407
Product Diameter:
2 1/2"
Product Projection:
1"
Product Category:
Door Trim and Accessories
Product Substrate:
Wrought
Department:
Door Hardware

Don-Jo 1407-626 – Frequently Asked Questions

1) How far off the wall does the Don-Jo 1407 wall bumper hold the door?
One inch. The 1407 has a 1 inch projection with a 2-1/2 inch diameter contact face, so the door stops about an inch shy of the wall. That is a shallow stop, which is what you want in a corridor where a deeper bumper would stick out into the traffic path, but it also means the lever or knob on the door has to clear the wall within that inch. If your lockset projects more than that, the trim hits the wall before the bumper does and you need a floor stop or a longer wall stop instead.
2) Will the Don-Jo 1407 mount on drywall, or do I need a stud?
Drywall is covered. Each 1407 ships with a #8 x 1-1/4 inch sheet metal screw, a plastic anchor, and a plastic drywall anchor, so you can set it into hollow drywall, into an anchored substrate, or drive straight into blocking if you hit a stud. The best install is still into solid backing behind the board, since a wall bumper takes a repeated impact load, but you do not have to buy anchors separately to hang it on drywall.
3) My door's lever hits the wall before a 1 inch bumper would catch it. What do I use instead?
Reach for something with more standoff. The 1407 only holds the door 1 inch off the wall, so if the lever, a paddle, or an exit device touch bar projects further, the trim strikes drywall first and the bumper never does its job. The ABH RM Series and RMS Series wall door stops are offered with multiple length options, which is how you get the extra standoff to clear a projecting lockset. Measure from the wall face to the furthest point of the door trim when the door is fully open, and pick a length longer than that number.
4) Does a wall bumper work if the door doesn't swing back to a wall?
No, and this is the most common wrong order on a door stop. The 1407 mounts to the wall behind the door, so it needs a wall surface within an inch of where the open door lands. Where the door swings into open floor, into a corridor with nothing behind it, or past the end of a wall, you need a stop mounted to the floor or to the door itself. Delaney offers a 3 inch spring door stop and a 3 inch heavy duty rigid door stop for those openings.
5) We need the door to stay open, not just stop. Is a wall bumper the right part?
No. The Don-Jo 1407 is a wall bumper - it absorbs the swing and stops the door, then the door is free to close. To hold the door open at the wall, the Ives WS20/WS20X is a manual wall holder with a hinged strike, which is engaged by hand, and the Ives WS40 is an automatic wall holder with a heavy duty bumper pad, which catches the door on contact. A holder also requires a strike or catch plate on the door, which a plain bumper does not, so it is not a like-for-like swap into the same fastener pattern.
6) What is the closest equivalent to a Don-Jo 1407 wall bumper from Ives?
The Ives WS33/WS33X is a heavy-duty wall door stop with a replaceable rubber bumper, so it covers the same wall-mounted door stop role as the Don-Jo 1407. The difference that matters on a retrofit is the bumper element: the WS33/WS33X bumper is replaceable, so a worn pad can be swapped without pulling the base off the wall. The 1407 is a wrought wall bumper with a 2-1/2 inch diameter face and a 1 inch projection. If the concern is matching an existing 1 inch standoff at the wall, confirm the projection before switching series.
7) The door swings back far enough that a wall bumper still lets it hit the wall trim. What should be used instead?
A wall bumper with a 1 inch projection like the Don-Jo 1407 only stops the door where the wall is directly behind the swing. Where the door needs to be caught farther off the wall, the ABH RM Series and RMS Series wall door stops are offered with multiple length options, so the standoff can be chosen to suit the opening rather than fixed at one projection. Measure from the finished wall to the point on the door face that needs to be contacted, and pick the length from there.
8) What finishes does the Don-Jo 1407 wall bumper come in to match my existing door hardware?
Eleven, and they cover the standard BHMA finish numbers: 605 polished brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 620 antique nickel, 622 matte black, 625 polished chrome, 626 satin chrome, and 630 satin stainless. If you are matching a building already standardized on 626 satin chrome levers or 630 stainless, the bumper number is the same number on the lock, so you order to match without guesswork.
9) Is the Don-Jo 1407 heavy enough for a commercial building, or is it a residential bumper?
Commercial. The 1407 is a wrought-construction wall bumper listed as a commercial product and built to ANSI L22251 and L52251, which are the door stop and holder designations used on commercial hardware schedules. Wrought means it is formed from solid stock rather than cast, so it takes the repeated door strike you get in a school corridor, a healthcare wing, or a multi-tenant hallway.
10) Should I use a wall bumper like the Don-Jo 1407 or a wall stop with a replaceable rubber tip?
Different repair story. The 1407 is a wrought bumper with a 2-1/2 inch face and a 1 inch projection, a one-piece part you replace whole when the face wears. The Ives WS11 and WS33 are heavy duty wall stops with a replaceable rubber bumper, so on a door that gets slammed hundreds of times a day you swap the rubber and leave the base on the wall. For a fleet of interior office or apartment doors, the one-piece bumper is the simpler part to stock. For a high-abuse opening, the replaceable-tip stop keeps the wall repair off your work order.
11) Is the Delaney 2-1/4 inch concave wall bumper the same thing as a Don-Jo 1407?
They fill the same role but the contact face is not the same size. The Delaney 40270 series is a 2-1/4 inch concave wall bumper; the Don-Jo 1407 is 2-1/2 inch in diameter with a 1 inch projection. On a replacement where an existing bumper has left a wear ring or a paint shadow on the wall, the larger 1407 face covers a 2-1/4 inch footprint, while going the other direction leaves the old mark showing. Check the diameter against what is already on the wall before ordering a fleet quantity.
12) What is the difference between a wall bumper like the Don-Jo 1407 and a floor-mounted door stop?
The Don-Jo 1407 mounts on the wall and takes the impact at the point of the door swing. The Delaney 4021 series 3 inch HD rigid door stop and the Delaney 40210 series 3 inch spring door stop are the base-mounted alternative, taking the load at the floor or the door bottom instead of the wall. Choose the wall bumper when there is solid wall behind the swing and nothing should sit in the walking path; choose the rigid or spring type when the swing carries past the wall or the wall behind is glass, casework, or an opening.
13) Which wall bumper suits a residential or decorative opening rather than a commercial corridor?
The Emtek 2255 is a brass wall bumper with a regular rosette, a decorative treatment suited to residential and finish-sensitive openings. The Don-Jo 1407 is a commercial wall bumper in wrought construction, sized at 2-1/2 inch diameter, and is the one to standardize on across corridors, stairwells, and back-of-house doors where the traffic is heavy. On a mixed property, many buyers run the 1407 in the service areas and a decorative rosette bumper in the units.
14) The wall behind the door is masonry, not drywall. Does that change which wall stop to order?
It changes the anchor, and on some series the anchor comes with the part. The Ives WS11/WS11X is a heavy duty wall stop with a replaceable rubber bumper offered for both drywall and masonry, and the Ives WS20/WS20X wall holder is likewise offered for drywall and masonry applications. The Don-Jo 1407 ships with a #8 x 1-1/4 inch SMS screw, a plastic anchor, and a plastic drywall anchor. If the substrate is block or brick, plan the masonry anchor to suit the wall, or specify a series that is called out for masonry.
15) Which wall stop should be standardized across a facility where maintenance replaces worn bumpers in place?
If the maintenance model is swapping the rubber rather than the whole unit, the Ives WS11/WS11X and the Ives WS33/WS33X are both heavy duty wall stops with a replaceable rubber bumper, so the base and its anchor stay in the wall. The Don-Jo 1407 is a one-piece wrought wall bumper and is replaced as a unit; it is available in ten finishes including 605 polished brass, 613 oil rubbed bronze, 622 matte black, and 630 satin stainless steel, which is what makes it straightforward to match a facility that already runs mixed finish schedules.
16) Can I buy the Don-Jo 1407 in bulk for a whole building's worth of doors?
Yes, it comes in shelf packs of 50. That is the practical way to buy it when you are outfitting a floor of offices or turning a block of apartment units, since every unit carries its own fastener kit and you are not chasing anchors separately. Pick one finish across the building and the doors all match.
17) Does the Don-Jo 1407 wall bumper have a handing?
No handing. The 1407 is a round 2-1/2 inch bumper on a single center fastener, so it works on a left hand or right hand door without ordering a side. One part number covers every opening in the building, which is why it stocks well for a maintenance crew.
18) What ANSI number do I put on the hardware schedule for the Don-Jo 1407?
L22251 and L52251. The 1407 is built to both, so a spec writer or an institutional buyer working to a door stop line item on the schedule can cite it directly rather than calling it out as an approved equal.
19) We are patching where an old wall stop was removed. Is a wall bumper the part for that?
No. Covering a leftover hole is a different part from stopping the door. The Delaney 2310011 is a 2-1/8 inch hole plate metal cover, which is what conceals an abandoned bore in the door or wall. The Don-Jo 1407 is a wall bumper with a 2-1/2 inch diameter face and a 1 inch projection, intended to take the door impact at a new location. On a door being re-stopped, both may be needed: the cover for the old opening, the bumper where the door now lands.
