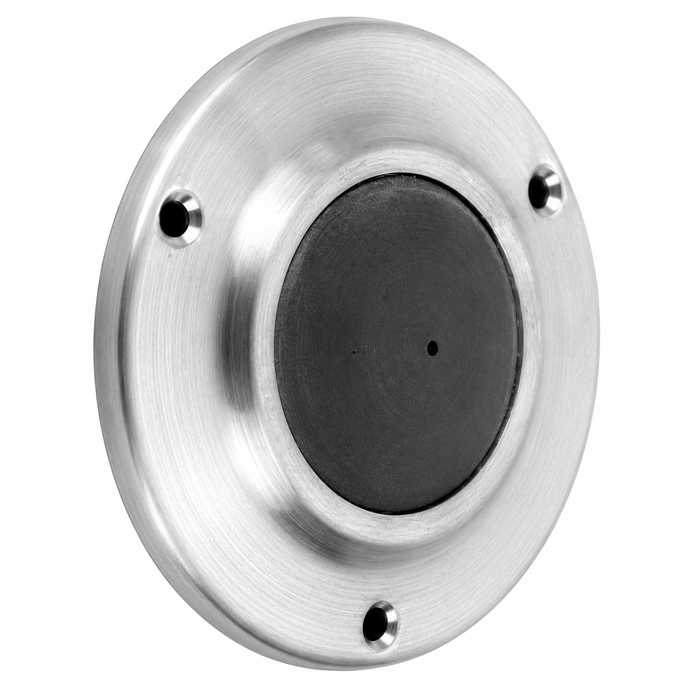

Don-Jo 1410 Wall Bumper Door Stop, 7/8" Projection, 3-7/8" Diameter, Cast Brass

Don-Jo 1410 Wall Bumper Door Stop, 7/8" Projection, 3-7/8" Diameter, Cast Brass

(No reviews yet) Write a Review

Model: 1410-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.46
$35.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1410 Wall Bumper Door Stop, 7/8" Projection, 3-7/8" Diameter, Cast Brass

The Don-Jo 1410 is a commercial-grade wall bumper door stop crafted from durable cast brass, engineered to protect walls and door hardware from impact damage in high-traffic environments. Featuring a 7/8" projection and a 3-7/8" diameter face, this wall-mounted bumper provides a reliable buffer between the door and wall surface. Available in a 626 satin chrome finish, the 1410 ships with a complete fastener package including 1 ea. 1/4-20 x 1-1/4" machine screw, 3 ea. #8-32 x 1/4" machine screws, and 1 ea. lead expansion shield for secure installation into masonry or drywall surfaces.

Key Features

  • Precise Projection Dimension: 7/8" projection keeps doors safely away from wall surfaces, preventing damage to both the door and wall finish.
  • Generous Face Diameter: 3-7/8" diameter face distributes impact force evenly, providing broad wall protection in commercial applications.
  • Cast Brass Construction: Solid cast brass material delivers exceptional durability and corrosion resistance for long-lasting performance in demanding commercial settings.
  • Complete Fastener Package Included: Comes with 1 ea. 1/4-20 x 1-1/4" MS, 3 ea. #8-32 x 1/4" MS, and 1 ea. lead expansion shield for versatile mounting into multiple substrate types.
  • 626 Satin Chrome Finish: Attractive 626 finish complements a wide range of commercial door hardware and interior design schemes.
  • Commercial-Grade Design: Engineered specifically for commercial applications where durability and consistent performance are essential.
  • Convenient Shelf Pack Quantity: Available in shelf packs of 10, making it easy to stock and deploy across multiple doors in a facility.

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Type: Door Stops - Wall
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities and Schools
  • Healthcare Institutions and Hospitals
  • Retail Establishments and Storefronts
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 1410?

Don-Jo wall bumper door stops are built to commercial standards using solid cast brass construction, ensuring reliable impact protection and long service life in high-traffic environments. The 1410 model's 3-7/8" diameter face and 7/8" projection are precisely engineered to safeguard walls and door hardware, while the included fastener kit with lead expansion shield simplifies installation across a variety of wall substrates. For facilities managers and contractors seeking dependable, professional-grade door stop solutions, the Don-Jo 1410 delivers consistent performance installation after installation.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Door Stops & Holders
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Wall
Commercial/Residential:
Commercial
Product Model:
1410
Product Diameter:
3-7/8"
Product Projection:
7/8"
Product Category:
Door Trim and Accessories
Product Substrate:
Cast Brass
Department:
Door Hardware

Don-Jo 1410-626 – Frequently Asked Questions

1) Will the Don-Jo 1410 wall bumper mount into a masonry or concrete wall, or just drywall?
Both. The 1410 ships with a lead expansion shield plus a 1/4-20 x 1-1/4 inch machine screw for anchoring into masonry, and three #8-32 x 1/4 inch machine screws for the rosette. That fastener package covers the common commercial substrates without a separate anchor purchase.
2) How far off the wall does the Don-Jo 1410 hold the door?
The bumper projects 7/8 inch from the wall face, so the door lever or edge stops just under an inch short of the wall. On openings with a long lever or a thick escutcheon, measure how far the trim sticks out past the door face; if it exceeds 7/8 inch the lever will strike the wall before the bumper does, and you want a longer wall stop instead.
3) Should I use a wall bumper like the Don-Jo 1410 or a floor stop?
A wall bumper works when the door swings into a wall within reach of the door edge and the wall has solid backing or an anchor point. Use a floor stop instead when the door swings into open space, when the wall behind is glass or a partition, or where you need the door held open. If holding open is the requirement, look at a wall holder such as the Ives WS20 manual holder or the WS40 automatic holder rather than a plain bumper.
4) What is the difference between the Don-Jo 1410 and an Ives WS11 or WS33 wall stop?
The 1410 is a cast brass concave bumper with a 3-7/8 inch face and 7/8 inch projection. The Ives WS11 and WS33 are heavy-duty wall stops with a replaceable rubber bumper, which matters if you are maintaining a large facility and want to swap a worn pad instead of pulling the whole stop off the wall. Both Ives units are listed for drywall and masonry. Pick the 1410 for a broad brass face and a clean look; pick the Ives if serviceability of the bumper is the priority.
5) My door hits the wall too far from where a wall stop can mount. Is the Don-Jo 1410 still the answer?
No. A fixed bumper with a 7/8 inch projection only works when the door edge or lever actually reaches the bumper face at the wall. If the door stops short of the wall, or the strike point falls on a hollow section with no backing, you want an extended-length wall stop such as the ABH RM or RMS Series, which are offered in multiple lengths to reach out from the wall.
6) What is the closest equivalent to the Don-Jo 1410 wall bumper from another brand?
The Emtek 2255 is the nearest like-for-like: it is also a brass wall bumper, mounted on a regular rosette, so it serves the same purpose as the Don-Jo 1410 cast brass wall bumper that projects 7/8 inch off the wall on a 3-7/8 inch diameter face. Both are surface wall bumpers rather than holders, meaning they cushion the door at its open position without latching it there. If you are matching brass trim already on the opening, either one keeps the material consistent.
7) The wall behind my door is too far from the door face for a 7/8 inch bumper. What should I use instead of the 1410?
Step up to a projecting wall stop rather than a flat bumper. The Ives WS11 is a heavy duty wall stop with a replaceable rubber bumper rated for drywall and masonry, and the Ives WS33/WS33X is a heavy-duty wall door stop that also uses a replaceable rubber bumper. The ABH RM Series and ABH RMS Series wall door stops are offered with multiple length options, so you can pick a stem length that reaches the door. The Don-Jo 1410 projects 7/8 inch, which only works when the door face lands very close to the wall in the open position.
8) I need the door to stay open, not just stop. Is the Don-Jo 1410 the wrong part?
Yes. The 1410 is a wall bumper that cushions the door and stops travel; it does not retain the door. For hold-open, the Ives WS20 is a manual wall holder with a hinged strike for drywall and masonry, which you engage by hand, and the Ives WS40 is an automatic wall holder with a heavy duty bumper pad that catches the door as it swings. The WS20 and WS40 both require a matching strike or catch on the door, which a plain bumper like the 1410 does not.
9) Is the Don-Jo 1410 wall bumper rated for commercial traffic or is it a residential part?
It is a commercial door stop, built from cast brass rather than stamped or plated steel. Brass holds up to corrosion and repeated impact, which is why it gets specified in schools, hospitals, and office corridors. For a residential opening a lighter part such as the Sure-Loc wall bumper stop is the residential-duty option.
10) What finish does the Don-Jo 1410 come in, and will it match my other door hardware?
One finish: 626 satin chrome. That is the standard commercial finish on most lever locks, closers, and exit devices, so it matches typical satin chrome or brushed nickel-look hardware schedules. If your building is standardized on bright brass or oil-rubbed, this model will not match.
11) I need a smaller wall bumper than the Don-Jo 1410. What else is there?
The 1410 face is 3-7/8 inches across, which is on the large side. For a more discreet footprint, the Delaney 2-1/4 inch concave wall bumper is a smaller-diameter option, and the Emtek 2255 brass wall bumper mounts on a regular rosette. Both are wall bumpers of the same basic type, just a lighter visual presence on the wall.
12) Is there a simpler or smaller wall bumper than the Don-Jo 1410 for apartment interior doors?
Two lighter options exist. The Delaney 2-1/4 inch concave wall bumper has a smaller face than the 3-7/8 inch diameter of the Don-Jo 1410, and the Sure-Loc DS-W1 wall bumper door stop is intended for residential doors. The 1410 is a commercial cast brass unit, so on a large multi-family turn it is the one you choose when the same detail also has to hold up on corridor and stair doors.
13) Can a floor or baseboard door stop replace the Don-Jo 1410?
Only if the geometry of the opening allows it, and the parts are not interchangeable. The Delaney 3 inch HD rigid door stop and the Delaney 3 inch spring door stop mount to the door or floor and arrest the door before it reaches the wall, so they need no wall surface behind the swing. The Don-Jo 1410 mounts to the wall itself and ships with a 1/4-20 x 1-1/4 inch machine screw and a lead expansion shield for anchoring into masonry or drywall. Choose the wall bumper when there is solid backing where the door strikes, and a door- or floor-mounted stop when there is glass, casework, or nothing to anchor to.
14) If the rubber on my door stop wears out, does the Don-Jo 1410 compare the same way as the Ives stops?
They differ in how the wear surface is handled. The Ives WS11 and the Ives WS33/WS33X are both specified with a replaceable rubber bumper, so the strike surface is a serviceable component. The Don-Jo 1410 is a cast brass wall bumper with a 3-7/8 inch face, replaced as a unit when the face is spent. For a facility standardizing across many openings, that difference decides whether you stock replacement bumpers or whole stops.
15) Can I buy the Don-Jo 1410 in a case quantity for a whole building?
It is packed in shelf packs of 10, which suits standardizing a corridor or a floor of units on one stop. Because it comes in a single 626 satin chrome finish, every opening in the order matches without having to sort finishes on site.
16) I have an old door stop hole in the wall. Will the Don-Jo 1410 cover it?
It may, but the purpose-made part is different. The Delaney 2310011 is a 2-1/8 inch hole plate metal cover, made to conceal an abandoned opening with no stopping function at all. The Don-Jo 1410 is a working wall bumper with a 3-7/8 inch diameter face, so it covers a larger area but is anchored to take door impact, which means the substrate behind it has to be sound. If you are abandoning the location, use the cover plate; if you are still stopping a door there, use the bumper.
