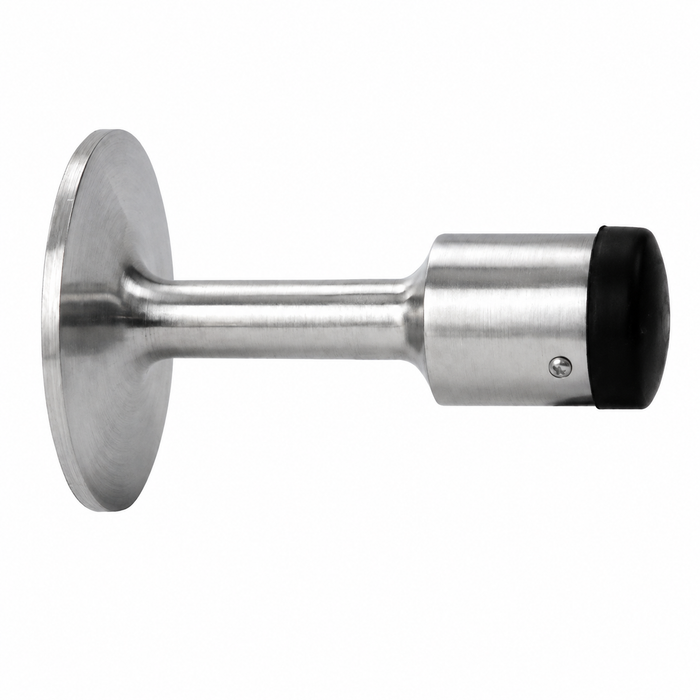

Don-Jo 1476 Wall Door Stop in Cast Brass with Included Fasteners

Don-Jo 1476 Wall Door Stop in Cast Brass with Included Fasteners

(No reviews yet) Write a Review

Model: 1476-626

In Stock (leaves warehouse same day if ordered before 3pm ET)

$31.16
$27.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1476 Wall Door Stop in Cast Brass with Included Fasteners

The Don-Jo 1476 is a commercial-grade cast brass wall door stop engineered to protect walls and doors from impact damage in demanding environments. Standing 3-7/8" in height with a 2-1/4" base, this wall stop installs securely using three #10 x 1" sheet metal screws and three plastic anchors included in the package. Compliant with ANSI L12011, the 1476 is available in finishes 605, 613, and 626 to coordinate with a wide range of commercial door hardware. Sold in a shelf pack of 10, it is an ideal choice for contractors and facility managers stocking multiple openings.

Key Features

  • Cast Brass Construction: Manufactured from solid cast brass for exceptional durability and a refined appearance suited to commercial applications.
  • Precise Dimensions: 3-7/8" height and 2-1/4" base provide a sturdy, low-profile footprint that mounts flush against wall surfaces.
  • Complete Fastener Package: Includes 3 ea. #10 x 1" SMS and 3 ea. plastic anchors for straightforward installation into drywall or masonry surfaces.
  • Multiple Finish Options: Available in finishes 605, 613, and 626 to match existing door hardware and architectural requirements.
  • ANSI Compliant: Meets ANSI L12011 standards, ensuring reliable performance and compatibility with commercial building specifications.
  • Convenient Shelf Pack: Packaged 10 units per shelf pack, making it efficient for contractors and distributors managing multi-door projects.
  • Commercial-Grade Performance: Designed and rated for commercial use, providing long-lasting protection for walls and doors in high-traffic settings.

Certifications & Compliance

  • ANSI L12011 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Type: Door Stops - Wall
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 1476?

Don-Jo 1476 wall door stops are crafted from solid cast brass, delivering the structural integrity and finish quality demanded by commercial construction professionals. With ANSI L12011 compliance and a complete fastener kit included, the 1476 is engineered for reliable, long-term performance across a wide range of commercial door openings. Trust Don-Jo to provide consistent, professional-grade door hardware solutions for every project.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Door Stops & Holders
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Wall
Commercial/Residential:
Commercial
Product Model:
1476
Product Category:
Door Trim and Accessories
Product Substrate:
Cast Brass
Department:
Door Hardware

Don-Jo 1476-626 – Frequently Asked Questions

1) Will the Don-Jo 1476 wall stop mount into drywall, or do I need masonry anchors?
The 1476 ships with three #10 x 1 inch sheet metal screws and three plastic anchors, which covers a standard drywall install. Into masonry the same plastic anchors work in a drilled hole. If you're hitting a stud or solid blocking behind the drywall, skip the anchors and run the screws straight in, since the anchor is only there when there's nothing solid behind the finish surface.
2) How far off the wall does the Don-Jo 1476 stand, and will it catch my lever?
It stands 3-7/8 inches in height on a 2-1/4 inch base. That height is what puts the bumper face in line with the door, so mount it so the stop lands on the door face or rail rather than on the lever itself. On a door with a big lever or a pull, measure from finished floor to the widest point of the trim before you set the layout, because a wall stop this height is meant to take the hit on the door, not on the hardware.
3) My door doesn't reach the wall when it opens. Is a Don-Jo 1476 wall stop still the right part?
No. A wall stop only works when the door swings far enough to meet the wall behind it. If the door stops short, if there's a return wall, or if it opens into a space with nothing behind it, you want a floor stop or a door-mounted stop instead. Options of that kind include the Delaney 3 inch HD rigid door stop and the Delaney 3 inch spring door stop. Measure from the wall to the door face in the fully open position before you commit to a wall stop.
4) I need the door to stay open, not just stop. What should I order instead of a Don-Jo 1476?
A wall stop only arrests the door swing; it does not hold the door open. For hold-open, the Ives WS20 is a manual wall holder with a hinged strike for drywall and masonry, and the Ives WS40 is an automatic wall holder with a heavy duty bumper pad. The manual holder is engaged by hand at the strike, while the automatic holder catches on contact. Both are wall holders rather than wall stops like the Don-Jo 1476.
5) What is a heavy duty alternative to the Don-Jo 1476 wall stop with a bumper that can be replaced instead of the whole stop?
The Ives WS11 is a heavy duty wall stop with a replaceable rubber bumper, rated for drywall and masonry. The Ives WS33/WS33X is also a heavy-duty wall door stop with a replaceable rubber bumper. On a hallway where the bumper face takes repeated strikes, a replaceable bumper means service is a new rubber tip rather than pulling and re-anchoring the stop. The Don-Jo 1476 is a cast brass wall stop.
6) The wall behind the door is out of reach of the standard projection. What wall stop reaches further than a Don-Jo 1476?
The Don-Jo 1476 comes in 3-7/8 inch and 3-1/2 inch sizes, which suits an opening where the door face lands close to the wall. Where the gap is longer, the ABH RM Series and ABH RMS Series wall door stops are offered with multiple length options, so the projection can be matched to the actual standoff. Measure from the finished wall to the point on the door that will contact the bumper before choosing a length.
7) There is no solid wall behind the door to anchor a stop to. What can I use instead?
When the swing does not land on a mountable wall, the stop has to go on the floor or the door itself. The Delaney 4021XX is a 3 inch heavy duty rigid door stop and the Delaney 40210X is a 3 inch spring door stop; the rigid version does not flex under the door, while the spring version absorbs the swing. Both mount away from the wall surface a Don-Jo 1476 wall stop requires.
8) What sizes does the Don-Jo 1476 wall stop come in?
Two heights, 3-7/8 inch and 3-1/2 inch. Both take the same three-screw mounting pattern, so the choice comes down to where the door face sits relative to the wall. On an opening where the door swings close to the wall, the 3-1/2 inch is the shorter projection; where the door needs to be held further off the wall, take the 3-7/8 inch.
9) Which finishes does the Don-Jo 1476 come in and what do 605, 613 and 626 look like?
Three: 605, 613 and 626. In BHMA finish numbering 605 is bright polished brass, 613 is oil rubbed bronze, and 626 is satin chrome. Pick the one already on the levers and hinges in that corridor. Since the body is cast brass, 605 and 613 are finishes on the base metal itself rather than plating over steel.
10) Is a cast brass wall stop like the Don-Jo 1476 durable enough for a school or hospital corridor?
The 1476 is a solid cast brass body rated for commercial use and built to ANSI L12011. Cast brass takes repeated impact without deforming the way a stamped or die-cast stop does, which is why it holds up in the traffic you get in schools, healthcare and office corridors. Where a door gets slammed hard and often, some specifiers prefer a stop with a replaceable rubber bumper so the wear item can be swapped instead of the whole stop, such as the Ives WS11 or WS33 heavy duty wall stops.
11) What does ANSI L12011 mean on a wall door stop?
L12011 is the ANSI/BHMA function designation for a wall-mounted door stop, and the 1476 is built to it. On a specification that calls out L12011 for the stops, this Don-Jo meets that line item directly, which matters when you're submitting hardware for approval on an institutional or government job rather than picking off a shelf.
12) What else could I use instead of the Don-Jo 1476 cast brass wall stop?
Within wall stops, the ABH RM and RMS Series come in multiple length options, which is the route to take when the gap between door and wall is unusual and 3-1/2 or 3-7/8 inches won't reach. The Emtek 2255 is a brass wall bumper with a regular rosette, a lighter decorative look for residential-grade openings. The Delaney 2-1/4 inch concave wall bumper is the flat, low-profile type that mounts directly to the wall where a projecting stop would be in the way. The 1476 sits in the commercial range of that group as a cast brass, ANSI L12011 stop.
13) Is a Delaney 2-1/4 inch concave wall bumper the same thing as a Don-Jo 1476?
They protect the wall in the same place but they are different parts. The Delaney 40270x is a 2-1/4 inch concave wall bumper, a shallow cushioned disc mounted flat to the wall for the knob or lever to land in. The Don-Jo 1476 is a wall door stop in cast brass, a projecting stop standing off the wall. The Emtek 2255 is likewise a brass wall bumper with a regular rosette. Pick the bumper when the door hardware already reaches the wall, and the projecting stop when it does not.
14) I am pulling an old wall stop off and there is a hole left in the drywall. Is a Don-Jo 1476 the part that covers it?
No. The Don-Jo 1476 is a wall door stop and mounts over its own anchor points; it is not sized to conceal a previous installation's opening. The Delaney 2310011 is a 2-1/8 inch hole plate metal cover, made for capping a hole in the wall surface. On a re-stop, the cover plate and the new stop are two separate line items.
15) For a commercial corridor in a school, does a Don-Jo 1476 or an Ives WS33 fit better?
Both suit commercial openings. The Don-Jo 1476 is a commercial cast brass wall door stop, so the finish is integral to the casting and coordinates with brass-family door hardware. The Ives WS33/WS33X is a heavy-duty wall door stop with a replaceable rubber bumper, which lets maintenance renew just the strike face on an opening that is hit constantly. Facilities standardizing a floor often choose on whether they want to stock spare bumpers or spare stops.
16) How many Don-Jo 1476 wall stops come in a pack?
They're packed 10 per shelf pack. For a property manager or contractor doing a floor at a time, that's one pack per ten openings, and it's worth ordering all of them in the same finish code so the building stays consistent when a stop gets replaced two years from now.
17) Does the Don-Jo 1476 wall stop have a handing, or does it work on left and right hand doors?
No handing. The 1476 mounts to the wall on a symmetrical three-screw base, so the same part works behind a left hand or right hand door. All you're setting on site is the height and the horizontal position where the door face lands.
