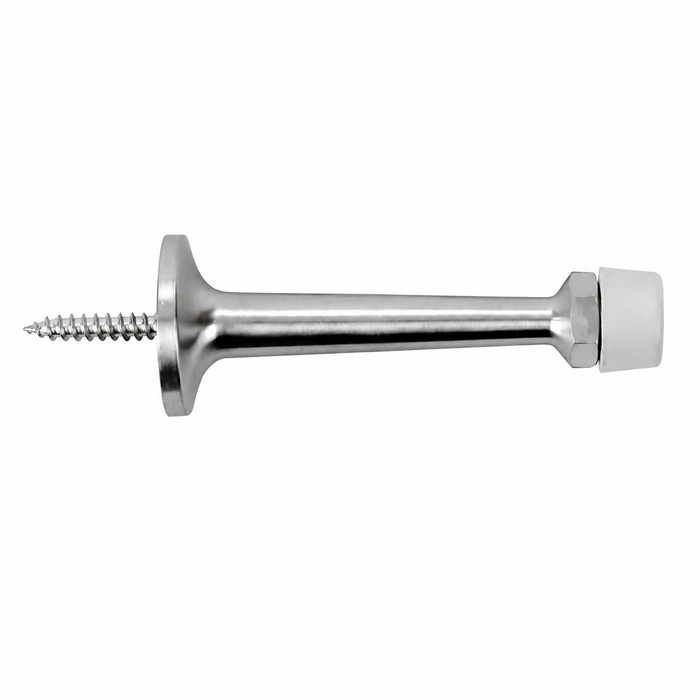

Don-Jo 1506 Rigid Base Door Stop in Cast Aluminum and Cast Brass

Don-Jo 1506 Rigid Base Door Stop in Cast Aluminum and Cast Brass

(No reviews yet) Write a Review

Model: 1506-613
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 1506 Rigid Base Door Stop in Cast Aluminum and Cast Brass

The Don-Jo 1506 is a commercial-grade rigid base door stop available in two durable material configurations: cast aluminum and cast brass. The cast aluminum model delivers a 3" projection with a 1" base, while the cast brass model offers a 3-1/4" projection with a 1" base, providing reliable door protection across a variety of commercial applications. Both models are secured with #10 SMS fasteners and are available in a wide selection of finishes to complement existing door hardware. Designed to meet ANSI standards, the 1506 is a dependable solution for baseboard door stop installations in commercial environments.

Key Features

  • Dual Material Options: Available in cast aluminum and cast brass construction, offering flexibility to match application requirements and aesthetic preferences.
  • Cast Aluminum Projection: Provides a 3" projection with a 1" base for effective door protection in standard commercial installations.
  • Cast Brass Projection: Offers a 3-1/4" projection with a 1" base for slightly extended reach in baseboard stop applications.
  • Secure Fastening: Both models utilize #10 SMS fasteners for a firm, stable mount to baseboard surfaces.
  • Wide Finish Selection: Available in finishes 605, 606, 613, 619, 620, 622, 625, and 626 to coordinate with existing door hardware and interior design.
  • Convenient Shelf Pack: Sold in shelf packs of 10 units, making stocking and project-quantity purchasing straightforward for contractors and distributors.
  • ANSI Compliance: Cast aluminum model meets ANSI L32031; cast brass model meets ANSI L12031, ensuring conformance to recognized industry standards.

Certifications & Compliance

  • ANSI L32031 (Cast Aluminum Model)
  • ANSI L12031 (Cast Brass Model)
  • Commercial Grade Construction

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Door Stops, Holders, Silencers & Bumpers
  • Product Type: Door Stops - Baseboard
  • Commercial/Residential: Commercial
  • Product Model: 1504
  • Product Projection: 3"
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 1506?

The Don-Jo 1506 Rigid Base Door Stop is engineered for commercial-grade performance, combining cast aluminum and cast brass material options with ANSI-compliant construction to deliver lasting reliability. With a broad selection of eight available finishes and a practical shelf pack of 10, the 1506 is a versatile and efficient choice for contractors, facility managers, and hardware distributors seeking dependable baseboard door stop solutions.

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Door Stops & Holders
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Baseboard
Commercial/Residential:
Commercial
Product Model:
1504
Product Projection:
3"
Product Category:
Door Trim and Accessories
Product Substrate:
Cast Aluminum
Department:
Door Hardware

Don-Jo 1506-613 – Frequently Asked Questions

1) Will the Don-Jo 1506 baseboard door stop work if my door swings back to a baseboard rather than a wall?
That is exactly what the 1506 is built for. It is a rigid base stop that mounts to the baseboard, not the floor and not the door face, so the door edge meets the stop instead of the wall or the trim behind it. The cast brass version reaches 3-1/4 inches off the baseboard; the cast aluminum version reaches 3 inches. Measure from your baseboard face to where the door edge or the lever ends up at full swing, and pick the projection that gets there.
2) What is the difference between the cast aluminum and cast brass Don-Jo 1506 door stop?
Two things separate them: reach and material. Cast aluminum gives a 3 inch projection and meets ANSI L32031. Cast brass gives 3-1/4 inches and meets ANSI L12031. Both use a 1 inch base and mount with #10 SMS fasteners, so the hole pattern and the install are the same either way. Pick brass when you need the extra quarter inch of reach or you are matching solid brass trim on the rest of the opening.
3) Does the Don-Jo 1506 meet ANSI standards for a commercial spec job?
Yes, and the number depends on the material you order. Cast aluminum carries ANSI L32031 and cast brass carries ANSI L12031. If the hardware schedule calls out an L-series baseboard stop, quote the matching material so the submittal lines up.
4) I need a longer reach than 3-1/4 inches to clear my baseboard and casing. What else is there?
The 1506 tops out at 3-1/4 inches in cast brass. When the door needs to stop further off the wall, ZenSupply carries the Emtek 2231 baseboard door stop at 4 inches, and the Delaney solid brass baseboard stop that adjusts from 3-1/2 to 4-1/2 inches, which is the one to reach for when you are not sure of the exact distance until the door is hung.
5) Will the Don-Jo 1506 hold my door open?
No. The 1506 is a stop, so it arrests the door swing and protects the wall, but it does not catch or hold the door in the open position. For an opening that needs to stay propped, you want a holder instead, such as the Orca Hardware TH-30HD heavy duty rigid door stop with holder function, or a stop that limits swing to a set angle like the Hager 212, which is adjustable across an 80 to 120 degree range.
6) What is a direct alternative to the Don-Jo 1506 baseboard door stop if I need a longer reach off the baseboard?
The Don-Jo 1506 is a rigid base door stop with a 3-1/4 inch projection in cast brass and a 3 inch projection in cast aluminum. Where the door swings farther and needs to be caught later, the Emtek 2231 is a baseboard door stop at 4 inches, and the Delaney solid brass baseboard door stop adjusts from 3-1/2 inches to 4-1/2 inches so a single part can be dialed in after the door is hung. All three mount to the baseboard rather than the floor, so the wall prep is the same kind of work.
7) If the baseboard will not take a fastener, what door stop should be used instead of a Don-Jo 1506?
The Don-Jo 1506 is a baseboard stop fixed to the wall base with #10 SMS fasteners, so it needs solid backing at the baseboard. Where that backing is not there, a floor-mounted part carries the load instead: the Delaney 2 inch height round solid brass floor bumper anchors into the floor rather than the base trim. That moves the stop into the walking path, which matters in a corridor, but it takes the swing where the wall cannot.
8) I need the door to stop at a specific opening angle. Is the Don-Jo 1506 the right choice?
The Don-Jo 1506 stops the door where its fixed body sits, at a 3 inch projection in cast aluminum and 3-1/4 inch in cast brass, so the stopping point is set by where you mount it. When the door has to be held to a defined angle, the Hager 212 is an adjustable rigid door stop with an 80 to 120 degree range, which lets the angle be set on the part rather than by fastener placement. That matters where a door would otherwise swing into a piece of casework or an adjacent opening.
9) Is a rigid base stop like the Don-Jo 1506 better than a spring door stop for a high traffic opening?
A rigid stop has no moving parts. The 1506 is a solid cast body bolted to the baseboard, so there is nothing to fatigue or take a set the way a spring can after a few thousand slams. It is the right call for commercial corridors, classrooms and healthcare doors. A spring stop flexes instead of stopping dead, which is easier on the door edge and lighter duty, and ZenSupply carries the Orca Hardware 3-1/8 inch and 3-3/4 inch spring stops if that is the behavior you want. If you need the door to stay open rather than just stop, that is a holder, not a stop, such as the Orca Hardware TH-30HD.
10) What finishes does the Don-Jo 1506 baseboard door stop come in?
Eight, all in the 3-1/4 inch cast brass configuration: 605 polished brass, 609 antique brass, 613 oil rubbed bronze, 619 satin nickel, 620 antique nickel, 622 matte black, 625 polished chrome, and 626 satin chrome. Those are BHMA finish numbers, so if your hinges, lever and closer are already specified in 626 or 613, the stop matches the same number without you having to eyeball it.
11) What fasteners does the Don-Jo 1506 door stop use, and do I need anything else to install it?
The stop mounts with #10 SMS fasteners into the baseboard. That is a sheet metal screw, so it bites wood or MDF baseboard directly, but if your baseboard is over metal stud or hollow at the mounting point you will want a suitable anchor behind it. The base is 1 inch, so plan on hitting solid backing within that footprint.
12) Should I use a baseboard stop or a floor mounted bumper on my doors?
It comes down to what is behind the door. A baseboard stop like the 1506 puts the impact into the wall base, keeps the floor clear, and is the usual choice where a mop or a cart runs the corridor. A floor bumper puts the stop under the door edge instead, which is what you want where the wall behind the door is glass, casework, or too far away for a 3 to 3-1/4 inch projection to reach. ZenSupply carries the Delaney 2 inch round solid brass floor bumper for that case.
13) What is the difference between the Don-Jo 1506 and a door holder like the Orca TH-30HD?
They do two different jobs and are not interchangeable. The Don-Jo 1506 is a rigid base door stop: it limits how far the door swings and protects the wall. The Orca Hardware TH-30HD is a heavy duty rigid door stop whose function is listed as a door holder, meaning it is intended to catch the door and keep it open. If the requirement on the job is a door that stays parked open for deliveries or housekeeping, the 1506 will not do it.
14) Can I use a spring door stop in place of the Don-Jo 1506?
They stop the door in different ways. The Don-Jo 1506 is a rigid base stop, so the door is halted against a fixed cast aluminum or cast brass body with no give. The Orca Hardware 3-1/8 inch and 3-3/4 inch spring door stops flex on impact, which is why they are often chosen where a door gets thrown hard. Both Orca parts are listed with a door stop function like the 1506, and the 3-3/4 inch version reaches farther off the wall than the 1506's 3-1/4 inch cast brass body.
15) For a facility standardizing on one baseboard stop, how does the Don-Jo 1506 compare on material and finish to the brass alternatives?
The Don-Jo 1506 is offered in cast aluminum and cast brass and carries eight finishes across polished brass, antique brass, oil rubbed bronze, satin nickel, antique nickel, matte black, polished chrome and satin chrome, which lets one part number follow the hardware already in the building. Among the baseboard alternatives, the Delaney adjustable baseboard door stop and the Delaney round floor bumper are both solid brass. If the standard being written calls for a commercial-grade aluminum body in a black or chrome finish, the 1506 covers that where a solid brass part would not.
16) Can I buy the Don-Jo 1506 door stop in a case quantity for a whole building?
It ships in shelf packs of 10, which is how most contractors and distributors buy it when they are doing a floor or a wing at a time. Standardizing a property on one finish number across every opening is straightforward on that pack size.
