Don-Jo 19 Cast Door Pull, 8" C...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$40.50
$34.30

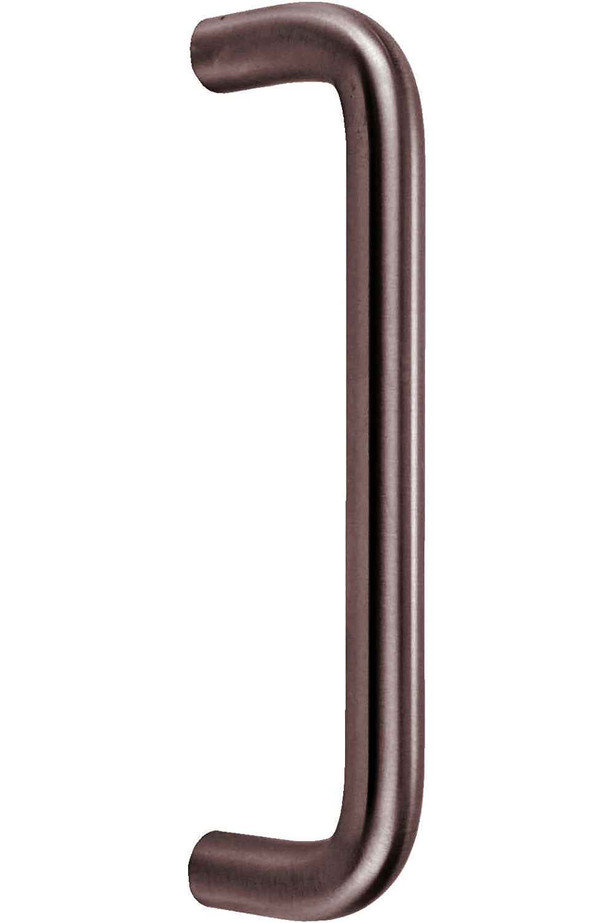

Don-Jo 19 Cast Door Pull, 8" CTC, 9" Overall, 3" Projection, 2" Clearance, 1" Diameter

Don-Jo 19 Cast Door Pull, 8" CTC, 9" Overall, 3" Projection, 2" Clearance, 1" Diameter

(No reviews yet) Write a Review

Model: 19-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$40.50
$34.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 19 Cast Door Pull, 8" CTC, 9" Overall, 3" Projection, 2" Clearance, 1" Diameter

The Don-Jo 19 is a cast door pull engineered for commercial applications, offering a robust 9" overall length with an 8" center-to-center (CTC) spacing for straightforward, standardized installation. Featuring a 3" projection, 2" clearance, and a 1" diameter grip, this pull provides a comfortable, secure handhold suited to high-traffic commercial environments. Compliant with ANSI J401, the Don-Jo 19 is available in a wide selection of finishes — 313, 605, 606, 613, 628, 629, and 630 — to coordinate with virtually any door hardware scheme.

Key Features

  • Precise Dimensions: 9" overall length with 8" center-to-center (CTC) spacing ensures accurate, standardized mounting on commercial doors.
  • Comfortable Grip Profile: 1" diameter bar with 3" projection and 2" clearance delivers an ergonomic, easy-to-grasp pull for users of all hand sizes.
  • Cast Construction: Solid cast build provides exceptional durability and rigidity, ideal for demanding commercial door applications.
  • Broad Finish Selection: Available in seven finishes — 313, 605, 606, 613, 628, 629, and 630 — for seamless coordination with existing door hardware and architectural aesthetics.
  • ANSI J401 Compliant: Meets ANSI J401 standards, ensuring reliable performance and compatibility with commercial door hardware specifications.
  • Commercial-Grade Design: Rated and designed for commercial use, making it suitable for high-traffic entryways, offices, and institutional facilities.

Certifications & Compliance

  • ANSI J401 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Subcategory: Pulls and Push Plates
  • Commercial/Residential: Commercial
  • Clearance: 2"
  • Product Model: 19
  • (CTC) Center-to-Center: 8"
  • Product Size: 9"
  • Product Diameter: 1"
  • Product Projection: 3"
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 19?

Don-Jo 19 door pulls are built from solid cast construction, delivering the rigidity and long-term durability that commercial door applications demand. ANSI J401 compliance and a broad range of seven available finishes make this pull a versatile, professional-grade choice for architects, contractors, and facility managers seeking reliable, code-conforming door hardware.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Subcategory:
Pulls and Push Plates
Commercial/Residential:
Commercial
Clearance:
2"
ANSI/BHMA:
J401
Product Model:
19
(CTC) Center-to-Center:
8"
Product Size:
9"
Product Diameter:
1"
Product Projection:
3"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Don-Jo 19-628 – Frequently Asked Questions

1) Will the Don-Jo 19 door pull fit my existing 8 inch hole pattern?
Yes, if the existing holes are 8 inches apart on center. The Don-Jo 19 is drilled 8 inch center-to-center with a 9 inch overall length, so it drops onto the standard 8 inch CTC prep used on most commercial pull mounting. If the door is already bored on some other spacing, the holes will not line up and you would be plugging and re-drilling.
2) How much hand room does the Don-Jo 19 pull give behind the grip?
Two inches of clearance between the grip and the door face, with a 3 inch total projection off the door and a 1 inch diameter bar. That 2 inches is what a gloved hand needs to get behind the pull. If you are pulling a heavy storefront or shop door in winter gloves, that clearance is the number to check, not the overall length.
3) What ANSI standard does the Don-Jo 19 cast door pull meet?
ANSI/BHMA J401. That is the pull designation a spec writer puts on a hardware schedule, so if the drawing calls for a J401 pull, the Don-Jo 19 answers it directly.
4) What is the closest straight-bar equivalent to the Don-Jo 19 if I need a 1 inch grip on a commercial door?
The Ives 8103HD is the nearest straight-bar counterpart: a heavy duty straight door pull with a 1 inch round bar and through bolt mounting, matching the Don-Jo 19's 1 inch grip diameter. The ABH AB3300 is another 1.00 inch diameter straight flat end commercial pull. The difference is shape and mounting - the Don-Jo 19 is a cast pull with a 3 inch projection and 2 inch clearance on 8 inch center-to-center spacing, while the 8103HD is specified around through bolt mounting through the door.
5) The Don-Jo 19 has too much projection for my opening - what pull sits closer to the door face?
The Ives 8102HD is the option to look at when 2 inches of clearance is more than the opening allows. It is a heavy duty straight door pull with a 3/4 inch round bar and 1-1/2 inch clearance, so both the grip and the standoff are smaller than the Don-Jo 19's 1 inch diameter and 2 inch clearance. Use the 8102HD where the door swings past adjacent trim, a frame return, or a second leaf; use the Don-Jo 19 where the fuller handhold is wanted.
6) What should I use instead of the Don-Jo 19 if the door needs an offset pull rather than a straight one?
For an offset profile, the Ives 8169 is a C style offset solid door pull in 1 inch diameter with heavy duty mounting, so the grip size matches the Don-Jo 19's 1 inch diameter while the body steps back toward the door. The ABH AB3310 is an offset flat end surface mount pull, and the ABH AB3330 is an offset round end pull available in custom lengths if the 9 inch overall length of the Don-Jo 19 does not fit the door stile. Offset pulls are commonly specified where a straight bar would sit too far off the face or where the pull runs alongside a lock or exit device.
7) Is there an ADA compliant alternative to the Don-Jo 19 for a barrier-free opening?
The Ives 8145 45 degree offset door pull is the one to specify when the opening is being detailed for accessibility - it is an ADA compliant EZ series pull supplied with heavy duty mounting hardware. The Don-Jo 19 is a commercial cast pull built to ANSI J401 with a 1 inch diameter grip and 2 inch clearance. If the drawing calls out an ADA pull by name, the 8145EZHD answers that callout directly.
8) What finishes can I order the Don-Jo 19 pull in?
Four: 605 polished brass, 613 oil rubbed bronze, 628 satin aluminum, and 630 satin stainless steel. For a building already standardized on 630 satin stainless, which is the usual commercial default, the 630 matches the push plates and lever trim you likely already have. 628 satin aluminum is the one to pick against aluminum storefront framing.
9) Is a 9 inch pull long enough, or do I need a longer offset pull?
A 9 inch overall pull with 8 inch CTC is a hand pull, sized for one grip on a swing door: office, restroom, corridor, back-of-house. It is not the pull for a full-height glass entrance where the look calls for a long ladder or offset bar. For those, a 24 inch back-to-back set like the Deltana SSPOBB24 or the round-profile SSPORBB24 is the right size class instead.
10) Is the Don-Jo 19 pull heavy enough for a high traffic commercial entrance?
It is a cast pull rated commercial, not residential, and cast construction is why: a solid cast bar has no seam or tube wall to flex where it meets the post. For school corridors, healthcare, and retail entries this is the right class of pull. If your spec sheet specifically calls out heavy duty as a line item, the Ives 8103HD and 8102HD are catalogued at that duty level.
11) Can I use the Don-Jo 19 as the pull side of a push plate and pull setup?
Yes, that is the standard pairing on a single-acting door: pull on the swing side, push plate on the push side. The Trimco 1001-1 heavy duty push plate at 3 by 12 inches is a common companion size, and the Trimco 1070 Series push/pull plates at 3-1/2 by 15 inches cover the taller plate look. Match the finish number across both, so a 630 pull goes with a 630 plate.
12) Is the Don-Jo 19 handed, or does the same part work on left and right hand doors?
The Don-Jo 19 is a straight bar pull on 8 inch center-to-center posts, symmetrical end to end, so there is no handing to specify. You order the finish and nothing else. That is different from decorative cast pulls such as the Emtek Art Nouveau 8 inch pull, where handing is a selection you make at order time.
13) I need a pull for a restroom door people can open without gripping. Is this the right one?
No. The Don-Jo 19 is a round 1 inch grip bar meant to be grasped. For a restroom exit where the point is opening the door with a forearm or elbow and no hand contact, the Trimco 1035 Ultimate Restroom Pull is the purpose-built part for that opening.
14) Does the Don-Jo 19 pull latch or lock the door?
No. The 19 is a pull only, a cast grip bar with an 8 inch mounting pattern and no latching mechanism. It mounts alongside whatever lock, exit device, or closer already secures the opening. If what you actually want is a pull that works with a night latch cylinder, the Cal-Royal PUL-175 night latch cylinder pull is that part.
15) I need a pull on one side and a push on the other - can I pair the Don-Jo 19 with a push plate?
Yes, and the push side is a separate part. The Trimco 1001-1 is a heavy duty push plate in 3 inch by 12 inch, and the Trimco 1041 is a half-round push plate in 8 inch by 16 inch for a larger push surface. The Trimco 1070 series supplies classic push and pull plates in 3-1/2 inch by 15 inch if you want the pull mounted on a backing plate rather than direct to the door as the Don-Jo 19 is. Order the pull and the plate as separate line items.
16) The Cal-Royal PUL-175 came up alongside the Don-Jo 19 - do they do the same job?
No. The Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2 inch height, stainless steel construction - it is used at a door where a rim cylinder passes through and the pull surrounds it. The Don-Jo 19 is a plain grip pull, 9 inch overall on 8 inch center-to-center with a 1 inch diameter bar, with no cylinder provision. If the door has a rim cylinder at the pull location, the PUL-175 is the part; if it is a straight handhold on a push-pull opening, the Don-Jo 19 is.
17) What is the alternative to the Don-Jo 19 for a restroom door where users do not want to touch the handle?
The Trimco 1035 Ultimate Restroom Pull is the purpose-built option for that opening - a heavy duty pull designed for restroom use. The Don-Jo 19 is a general commercial cast grip pull, 9 inch overall with a 3 inch projection, suitable for offices, corridors, and entries but not shaped for the forearm or elbow operation a restroom detail often calls for.
18) I need pulls on both sides of a glass or wood door - is the Don-Jo 19 sold as a back-to-back set?
For a back-to-back arrangement, look at the Deltana sets: the OHP620 is an off-set handle pull supplied as a back-to-back set for doors 1-1/8 inch to 1-3/8 inch thick, the SSPOBB24 is a 24 inch back-to-back modern offset pair, and the SSPORBB24 is a 24 inch back-to-back round offset pair. The Deltana SSP1210 is a 12 inch contemporary pull for a single side. The Don-Jo 19 is a 9 inch overall cast pull on 8 inch center-to-center, so a two-sided opening means specifying the pull for each face.
19) Which pull should I standardize on across a facility if I want stainless steel construction rather than cast?
The ABH AB7200 is the solid stainless steel option - a flat end pull handle in 7/8 inch diameter with through-bolt mounting. The Don-Jo 19 is cast, with a 1 inch diameter grip, and is offered in a 630 satin stainless steel finish among its options. So the choice is between a stainless finish over a cast body and a solid stainless body at a slightly slimmer 7/8 inch grip. For a facility standard, the deciding factors are the grip diameter your users are accustomed to and whether through-bolting is acceptable on every door type in the program.
20) Will the Don-Jo 19 work on a thin residential or cabinet-style door?
It is built and rated for commercial doors, and at 3 inches of projection off the face it is sized for a full commercial swing door rather than a light interior slab. For thinner doors, the Deltana OHP620 off-set handle pull is spec'd for 1-1/8 to 1-3/8 inch thickness, which covers the lighter openings the Don-Jo 19 is not aimed at.
21) My stile is too narrow for a 9 inch pull - what are the options?
The ABH AB3330 offset round end pull is offered with custom length options, which is the route when a fixed 9 inch overall length with 8 inch center-to-center spacing does not land on the stile you have. The Ives 8102HD is another direction if the constraint is depth rather than length, with a 3/4 inch round bar and 1-1/2 inch clearance. Measure the flat area of the stile and the distance to the lock or glass edge before choosing between them.
