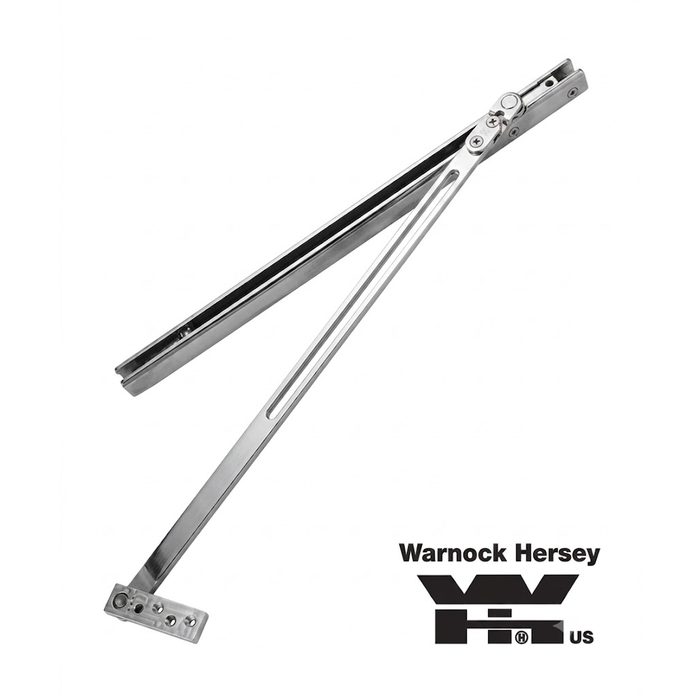

Don-Jo 3323 Surface Overhead Stop for 36" Door, Heavy-Duty Satin Stainless Steel

Don-Jo 3323 Surface Overhead Stop for 36" Door, Heavy-Duty Satin Stainless Steel

(No reviews yet) Write a Review

Model: 3323-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$437.40
$319.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 3323 Surface Overhead Stop for 36" Door, Heavy-Duty Satin Stainless Steel

The Don-Jo 3323 is a heavy-duty surface overhead stop engineered for 36" door applications, accommodating door frame openings from 32" to 35-15/16". Constructed from stainless steel with a 630 Satin Stainless finish, this non-handed, single-acting stop is suitable for both exterior and interior doors in commercial settings. UL listed for up to 90 minutes on wood fire doors and up to 3 hours on metal fire doors, the 3323 delivers reliable, code-compliant door control with a standard installation range of 85 to 110 degrees of opening.

Key Features

  • Door Frame Opening Compatibility: Designed for frame openings from 32" to 35-15/16", making it ideal for standard 36" commercial door applications.
  • Non-Handed Design: Universal, non-handed configuration simplifies installation and reduces inventory requirements for commercial projects.
  • Single-Acting Operation: Single-acting surface stop provides controlled, consistent door hold-open performance.
  • Heavy-Duty Stainless Steel Construction: Manufactured from stainless steel for exceptional corrosion resistance and long-term durability in interior and exterior applications.
  • Fire-Rated Performance: UL listed for up to 90 minutes on wood fire doors and up to 3 hours on metal fire doors, supporting fire-rated door assemblies.
  • Wide Installation Range: Standard installation accommodates 85 to 110 degrees of door opening for flexible positioning in varied architectural conditions.
  • Interior and Exterior Suitability: Engineered for use on both exterior and interior doors, providing versatile application across commercial building types.
  • Satin Stainless Finish (630): 630 Satin Stainless finish offers a professional aesthetic and enhanced resistance to tarnish and wear.

Certifications & Compliance

  • UL Listed — Up to 90 minutes on wood fire doors
  • UL Listed — Up to 3 hours on metal fire doors
  • ANSI: AI56.3 C02541

Technical Specifications

  • Product Group: Door Controls
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Overhead Stops and Holders
  • Product Type: Door Stops - Surface Stops
  • Commercial/Residential: Commercial
  • Frame Opening Size: 32" – 35-15/16"
  • Product Category: Door Controls
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo 3323?

Don-Jo surface overhead stop products deliver professional-grade reliability through heavy-duty stainless steel construction and a 630 Satin Stainless finish rated for both interior and exterior exposure. The 3323 meets ANSI AI56.3 C02541 standards and carries UL listings for fire-rated door assemblies up to 3 hours on metal fire doors, making it a dependable choice for demanding commercial door control applications.

Manufacturer Resources

DON-JO Door Controls

Product Specs

Product Group:
Door Controls
Subcategory:
Door Stops & Holders
Product Subgroup:
Overhead Stops and Holders
Product Type:
Door Stops - Surface Stops
Commercial/Residential:
Commercial
Duty Level:
Heavy Duty
Product Model:
3323
Frame Opening Size:
32" 35-15/16"
Product Category:
Door Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

Don-Jo 3323-630 – Frequently Asked Questions

1) Will the Don-Jo 3323 overhead stop work on my 36 inch door?
That is exactly what the 3323 is sized for. It covers frame openings from 32 inches to 35-15/16 inches, which is the range a standard 36 inch commercial door leaf sits in. If your frame opening measures under 32 inches or over 35-15/16 inches, you need a different size in the family, not this one.
2) Do I need to order the Don-Jo 3323 surface overhead stop left or right handed?
No handing to specify. The 3323 is non-handed, so one part covers both left and right hand openings. For a property manager or facilities buyer standardizing across a building, that means a single line item stocks every 36 inch door regardless of swing.
3) Can I use a surface overhead stop on a fire rated door?
The Don-Jo 3323 is UL listed for use up to 90 minutes on wood fire doors and up to 3 hours on metal fire doors, so it can go on a fire rated assembly within those limits. It also meets ANSI AI56.3 C02541. Confirm your opening's required rating first: a wood door carrying a rating above 90 minutes is outside what this stop is listed for.
4) How far will the Don-Jo 3323 let the door open before it stops?
Standard installation sets the stop between 85 and 110 degrees of door opening. That gives some latitude to position the template where the wall, adjacent millwork, or an out-swinging neighbor door dictates, rather than being locked to one fixed angle.
5) Is this overhead stop a hold-open, or does it just stop the door?
The 3323 is a single-acting stop. It arrests the door at the set opening angle and gives consistent, controlled stopping, but it is the stop function rather than a hold-open arm. If you need the door to stay parked open, you are looking for a hold-open version of an overhead unit, not this one.
6) Why use an overhead stop instead of a wall or floor mounted door stop?
A surface overhead stop mounts on the door face and frame soffit, so nothing sits on the floor to trip over or collect dirt, and you are not relying on blocking in a wall that may not be there. It also controls the door at the top rail where the leverage is, which matters on heavy commercial doors. Wall and floor bumpers are simpler and cheaper, but they only work when there is a solid wall at the right spot or a floor you are willing to drill.
7) Is the Don-Jo 3323 rated for high traffic commercial openings?
It carries a heavy duty rating and is classified for commercial use, built in stainless steel throughout. That puts it in range for school corridors, hospital wings, retail entries, and warehouse openings where a light duty stop would get bent on the first hard swing.
8) What finish does the Don-Jo 3323 overhead stop come in?
One finish only: 630 satin stainless steel. It is the common commercial spec finish and matches satin stainless hinges, push plates, and exit device trim already on most institutional openings, so it drops into an existing hardware schedule without standing out.
