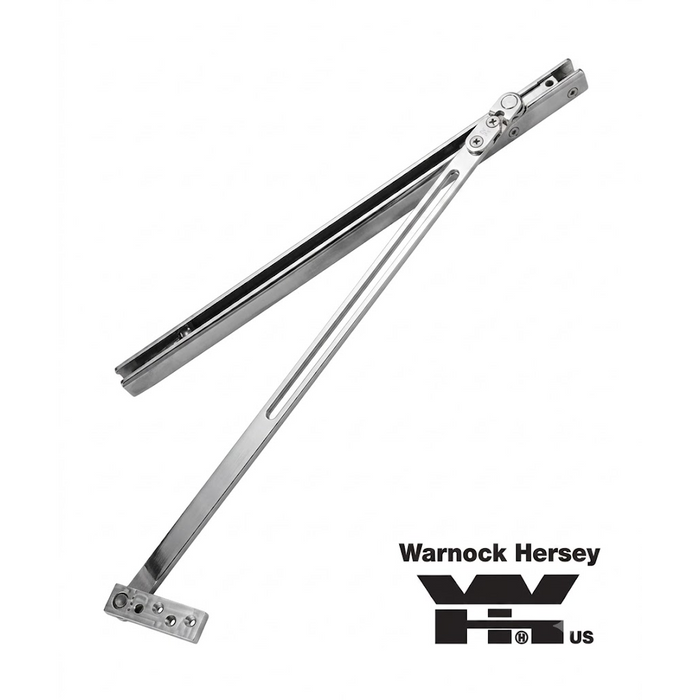

Don-Jo 3324 Surface Overhead Stop for 36" Door, Satin Stainless Steel

Don-Jo 3324 Surface Overhead Stop for 36" Door, Satin Stainless Steel

(No reviews yet) Write a Review

Model: 3324-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$437.40
$319.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 3324 Surface Overhead Stop for 36" Door, Satin Stainless Steel

The Don-Jo 3324 is a heavy-duty, non-handed surface overhead stop engineered for 36" door applications, compatible with butt-hung doors from 36" to 48" and center-hung doors from 39" to 48". Constructed from durable stainless steel with a 630 Satin Stainless finish, this single-acting stop is suitable for both interior and exterior doors. UL listed for up to 90 minutes on wood fire doors and up to 3 hours on metal fire doors, the 3324 delivers reliable performance in demanding commercial environments. Standard installation accommodates door opening ranges from 85 degrees to 110 degrees.

Key Features

  • Door Size Compatibility: Designed for 36" door size, with butt-hung compatibility from 36" to 48" and center-hung compatibility from 39" to 48" for versatile installation options.
  • Frame Opening Size: Accommodates frame openings of 42" to 43-15/16" for precise fit in commercial door frames.
  • Heavy-Duty Construction: Built from stainless steel with a 630 Satin Stainless finish, providing exceptional corrosion resistance and long-term durability for interior and exterior applications.
  • Non-Handed Design: Universal, non-handed configuration simplifies specification and installation without the need to determine door handing.
  • Single-Acting Operation: Single-acting mechanism provides controlled stop function with standard installation range from 85 degrees to 110 degrees of door opening.
  • Fire-Rated Performance: UL listed for up to 90 minutes on wood fire doors and up to 3 hours on metal fire doors, meeting critical life-safety requirements.
  • Interior and Exterior Use: Suitable for both interior and exterior door applications, offering broad deployment flexibility across commercial projects.
  • Substantial Build: Average unit weight of 5 lbs reflects the robust, commercial-grade construction of this overhead stop.

Certifications & Compliance

  • UL Listed — Up to 90 minutes on wood fire doors
  • UL Listed — Up to 3 hours on metal fire doors
  • ANSI A156.3 C02541 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Controls
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Overhead Stops and Holders
  • Product Type: Door Stops - Surface Stops
  • Commercial/Residential: Commercial
  • Frame Opening Size: 42" 43-15/16"
  • Product Category: Door Controls
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo 3324?

Don-Jo surface overhead stop products deliver professional-grade reliability through stainless steel construction and a 630 Satin Stainless finish rated for both interior and exterior environments. The 3324 is UL listed for fire-rated door assemblies up to 3 hours on metal fire doors, making it a trusted choice for life-safety-critical commercial applications where dependable, code-compliant performance is essential.

Manufacturer Resources

DON-JO Door Controls

Product Specs

Product Group:
Door Controls
Subcategory:
Door Stops & Holders
Product Subgroup:
Overhead Stops and Holders
Product Type:
Door Stops - Surface Stops
Commercial/Residential:
Commercial
Duty Level:
Heavy Duty
Product Model:
3324
Frame Opening Size:
42" 43-15/16"
Product Category:
Door Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

Don-Jo 3324-630 – Frequently Asked Questions

1) Will the Don-Jo 3324 overhead stop work on a 42 inch wide door?
No. The 3324 is sized for a 36 inch door, and its stated compatibility runs 36 to 48 inches on butt-hung doors and 39 to 48 inches on center-hung doors, but the frame opening it fits is 42 inches to 43-15/16 inches. A 42 inch door leaf sits in a wider frame opening than that, so you need the size of the 3324 family built for that opening rather than this one. Match the stop to the frame opening measurement, not just the leaf width.
2) Can I use a surface overhead stop on a fire-rated door?
The Don-Jo 3324 is UL listed for use up to 90 minutes on wood fire doors and up to 3 hours on metal fire doors, so it can go on a rated assembly within those limits. It also complies with ANSI A156.3 C02541. If your opening is a wood door with a rating above 90 minutes, this stop is not the right part for it.
3) How far will the Don-Jo 3324 let the door open?
Standard installation of the 3324 gives a stop range from 85 to 110 degrees of door opening. It is a single-acting stop, so it arrests the leaf at that point in one direction. If you need the door to hold open rather than just stop, this is a stop only, not a hold-open.
4) Is the Don-Jo 3324 suitable for a center-hung door?
Yes, within limits. Center-hung compatibility on the 3324 runs 39 to 48 inches, versus 36 to 48 inches for butt-hung doors. So a 36 inch center-hung leaf falls below the range even though a 36 inch butt-hung leaf is covered.
5) Do I need to know the door handing before ordering the Don-Jo 3324?
No. The 3324 is non-handed, so one part covers left and right hand openings. That is useful if you are stocking stops for a building with mixed swings, since you carry one item instead of two.
6) Is a surface overhead stop better than a floor stop or a wall stop for a commercial corridor?
An overhead stop like the Don-Jo 3324 mounts on the door and frame head, so nothing sits in the floor to trip over or collect dirt, and you are not relying on a wall being in reach behind the leaf. That is why they get specified in healthcare, schools, and corridors where a floor stop is a hazard and there is no adjacent wall. A wall or floor stop is simpler and cheaper where the geometry allows it; the overhead stop is what you use when it doesn't.
7) Will the Don-Jo 3324 hold up on an exterior door?
Yes. The 3324 is stainless steel with a 630 satin stainless finish, rated for interior and exterior use, and classified heavy duty. 630 is the standard satin stainless finish code, so it matches other 630 hardware already on the opening.
8) Does the Don-Jo 3324 come in other finishes?
The 3324 is offered in one finish, 630 satin stainless steel. There is no other finish option on this model, so if the opening is specified in 626 chrome or a painted finish you will be matching to satin stainless or choosing a different stop.
