Don-Jo 3023 Concealed Overhead...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$194.06
$155.40

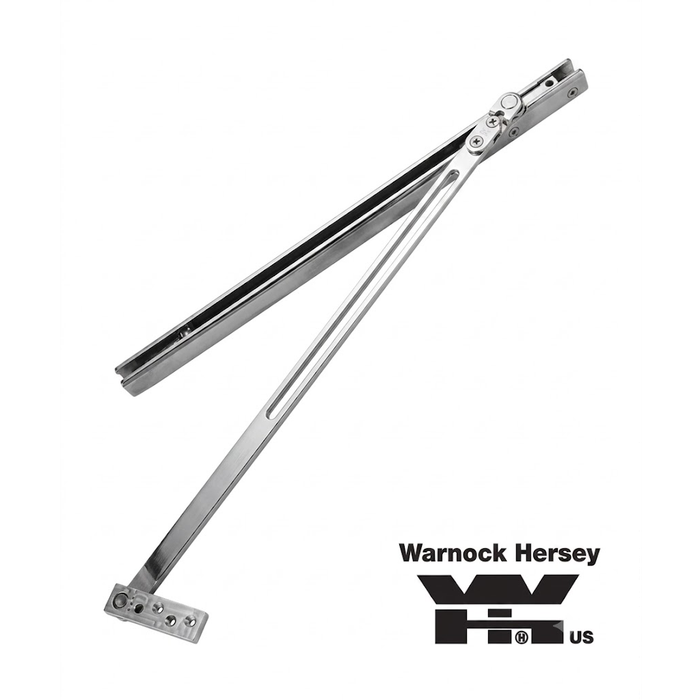

Don-Jo 3023 Concealed Overhead Door Stop in Satin Stainless Steel for 30" Doors

Don-Jo 3023 Concealed Overhead Door Stop in Satin Stainless Steel for 30" Doors

(No reviews yet) Write a Review

Model: 3023-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$194.06
$155.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 3023 Concealed Overhead Door Stop — Satin Stainless Steel, 30" Door Size

The Don-Jo 3023 is a commercial-grade concealed overhead door stop engineered for reliable, non-handed operation on 30" interior doors. Constructed from durable stainless steel with a 630 satin stainless steel finish, this medium-duty overhead stop is designed for single or double acting interior door applications. Compliant with ANSI A156.3 C04541, the 3023 delivers consistent performance in demanding commercial environments where a clean, concealed installation is required.

Key Features

  • Concealed Overhead Mount: Installs overhead and out of sight for a clean, unobtrusive appearance suited to commercial interiors.
  • 30" Door Size Compatibility: Specifically sized for 30" interior doors, ensuring proper fit and reliable stop function.
  • Non-Handed Design: Universal non-handed configuration simplifies ordering and installation — no left or right designation required.
  • Single or Double Acting: Compatible with both single and double acting interior doors for versatile application across a range of door configurations.
  • Medium-Duty Construction: Rated as a medium-duty overhead stop, providing dependable performance for standard commercial traffic levels.
  • Stainless Steel Material: Manufactured from stainless steel for corrosion resistance and long-term durability in commercial settings.
  • 630 Satin Stainless Steel Finish: The 630 finish offers a refined, professional aesthetic that complements a wide variety of commercial interior hardware.

Certifications & Compliance

  • ANSI A156.3 C04541 Compliant
  • Commercial Grade Application

Technical Specifications

  • Product Group: Door Controls
  • Subcategory: Door Stops & Holders
  • Product Subgroup: Overhead Stops and Holders
  • Product Type: Overhead Stops and Holders - Concealed Mount
  • Commercial/Residential: Commercial
  • Duty Level: Standard Duty
  • Product Category: Door Controls
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 3023?

Don-Jo overhead stop products are built to commercial standards, combining stainless steel construction with ANSI A156.3 C04541 compliance to deliver consistent, dependable performance. The 3023 concealed overhead stop is engineered for medium-duty commercial applications where a non-handed, concealed solution is essential for both function and aesthetics. Its universal design and quality stainless steel construction make it a reliable choice for facilities professionals and commercial door hardware installers alike.

Product Specs

Product Group:
Door Controls
Subcategory:
Door Stops & Holders
Product Subgroup:
Overhead Stops and Holders
Product Type:
Overhead Stops and Holders - Concealed Mount
Commercial/Residential:
Commercial
Duty Level:
Standard Duty
Product Model:
3023
Product Category:
Door Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

Don-Jo 3023-630 – Frequently Asked Questions

1) Do I have to order a left hand or right hand version of the Don-Jo 3023?
No handing to specify. The 3023 is a non-handed unit, so one part number covers both left and right swings, and it also works on single or double acting interior doors. For a property manager buying several at once, that means one line item instead of splitting the order by door swing.
2) Is a concealed overhead stop like the Don-Jo 3023 the right choice, or should I use a surface mounted one?
Concealed is the choice when you don't want hardware visible on the face of the door and frame. The 3023 mounts overhead into the door and frame so the track and arm sit out of sight, which is why it gets specified in offices, healthcare, and retail interiors. The tradeoff is prep: concealed units need the door top and frame soffit machined, so they are easiest on new doors or a like for like replacement. If the doors are already hung and you don't want to mortise them, a surface unit such as the Glynn-Johnson 70 Series or the Norton Rixson 10 Series surface stop and holder mounts on the face instead.
3) I need an overhead stop on a fire rated door. Can I use the Don-Jo 3023?
No fire rating is carried on the 3023, so don't put it on a labeled opening where the spec calls for rated door control. The ABH 1000 Series concealed overhead stop is the fire rated concealed option to use on that door instead. Keep in mind that on a rated opening the hardware also has to leave the self-closing function intact.
4) I need the door to hold open, not just stop. Is the Don-Jo 3023 the right part?
No. The Don-Jo 3023 is a concealed overhead door stop, so it limits how far the door swings but does not latch it open. If you need a hold-open, look at a stop and holder instead: the Sargent 1530 concealed mount stop/holder with 110 degree opening, the Glynn-Johnson 410 Series concealed overhead holders and stops, the Norton Rixson 1 Series Checkmate concealed stop and holder, or, if you want the hold-open point set in the field, the ABH 1000A, 1000RA, or 1000SA Series concealed stop and holders with adjustable opening control.
5) We spec ANSI Grade 1 on all door controls. Which concealed overhead stops carry that grade?
Among concealed overhead units, the Sargent 690 heavy duty overhead concealed stop/holder is stated as ANSI Grade One compliant, the Sargent 1530 concealed mount stop/holder is Grade 1, and the Norton Rixson 1 Series Checkmate concealed stop and holder is Grade 1. The Don-Jo 3023 is a commercial standard duty concealed stop built to ANSI A156.3 C04541, which is the right reference if your spec is written to the A156.3 function code rather than a grade line.
6) The Don-Jo 3023 is not rated for our high traffic entry doors. What heavy duty concealed overhead stop should I use instead?
The Don-Jo 3023 is a standard duty stop, which is sized for normal commercial interior traffic. For openings that see abuse or high cycle counts, step up to a heavy duty concealed unit: the Sargent 690 heavy duty overhead concealed stop/holder with ANSI Grade 1 compliance, the Norton Rixson 1 Series Checkmate heavy duty concealed stop and holder with a 110 degree opening, the ABH 1000 Series heavy duty concealed mount overhead stop, or the Glynn-Johnson 100 Series heavy duty concealed overhead holders and stops. All of these keep the concealed mounting that the 3023 gives you while moving up in duty class.
7) What is the closest concealed overhead stop to the Don-Jo 3023 from another manufacturer?
The Don-Jo 3023 is a concealed mount overhead stop in standard duty, so the nearest cross-brand equivalents are the Glynn-Johnson 410 Series medium duty concealed overhead holders and stops, the Sargent 1530 standard duty concealed mount stop/holder with a 110 degree opening, and the DORMA 711F standard duty concealed friction stop. All three mount concealed in the door and frame the same way the 3023 does, so the template work and the look in the finished opening are comparable. Note that the Sargent 1530 and the Glynn-Johnson 410 are stop/holder units, meaning they will hold the door open at the stop point, while the 3023 is a stop.
8) Can I use the Don-Jo 3023 on a door that is already hung, or do I need a surface mounted stop?
The Don-Jo 3023 is a concealed mount overhead stop, which means the door has to be prepped with a pocket for the channel and the frame prepped for the bracket. On an existing opening where you cannot rout the door, a surface mounted overhead stop is the practical substitute: the Glynn-Johnson 70 Series surface overhead holders and stops with an 85 to 110 degree hold-open range, the Glynn-Johnson 79 Series extra heavy duty surface stops and holders, or the Norton Rixson 10 Series surface stop and holder with adjustable hold-open. These screw to the door face and frame instead of being let into the door.
9) What finish does the Don-Jo 3023 come in, and will it match my other door hardware?
One finish only: 630, satin stainless steel. That's the standard commercial finish used across most push plates, pulls, hinges and exit hardware in institutional buildings, so it lines up with the majority of specs already on the drawings. If your openings were finished in 626 satin chrome, the difference is visible up close but the two are commonly mixed on the same opening.
10) Is the Norton Rixson 10 Series a drop-in replacement for the Don-Jo 3023?
Not directly. The Don-Jo 3023 is a concealed mount unit that sits inside the door, while the Norton Rixson 10 Series parts such as the 10-236 and 10-346 Checkmate stop and holder are surface units mounted to the face of the door and frame. The 10-336 is a Grade 1 standard duty overhead stop with adjustable opening control. Swapping from the 3023 to any 10 Series unit changes the door and frame prep and the appearance of the finished opening, so treat it as a different mounting approach rather than a one-for-one swap.
11) What is the difference between the Don-Jo 3023 and the DORMA 711F?
Both are standard duty concealed overhead units. The Don-Jo 3023 is a non-handed concealed stop for 30 inch interior doors, single or double acting, in 630 satin stainless steel. The DORMA 711F is a concealed friction stop sized for a 21 to 27 inch door opening, so it covers a narrower door width than the 3023. Pick by the door width you are actually working with.
12) Which overhead stops are available if I need a fire rated opening instead of the Don-Jo 3023?
The Don-Jo 3023 is a commercial concealed overhead stop built to ANSI A156.3 C04541. If the opening carries a fire label, the ABH 1000 Series heavy-duty concealed mount overhead door stop is offered with a fire rating and mounts concealed the same way, so it is the natural alternate when the label drives the spec.
13) I am standardizing a building on one overhead stop. Should I use the Don-Jo 3023 everywhere?
The Don-Jo 3023 suits 30 inch single or double acting interior doors at standard duty, which covers most offices, classrooms, and tenant corridors. For the heavier openings in the same building, such as high traffic entries or abuse-prone doors, pair it with a heavy duty concealed unit like the Glynn-Johnson 100 Series or the DORMA 900 Series heavy duty stops and holders, both of which are heavy duty lines. Keeping the concealed mounting consistent across both lets the openings look alike while matching the duty to the traffic.
14) Is the Don-Jo 3023 overhead stop stainless steel or plated?
Solid stainless steel, not a plated base metal. That matters for openings where moisture or cleaning chemicals are a factor, which is why it shows up in healthcare, food service back of house, and exterior vestibule interiors. The 630 finish is the satin version of that same stainless.
15) What is the difference between the ABH 1000A, 1000RA, and 1000SA when I am comparing them to the Don-Jo 3023?
All three ABH units are heavy duty concealed mount overhead stop and holders with adjustable opening control, the 1000A specifically described as field-adjustable. The distinction between them is the ABH series designation rather than the mounting method, and all three add hold-open and an adjustable stop point that the Don-Jo 3023 does not have, since the 3023 is a fixed standard duty concealed stop for 30 inch doors.
