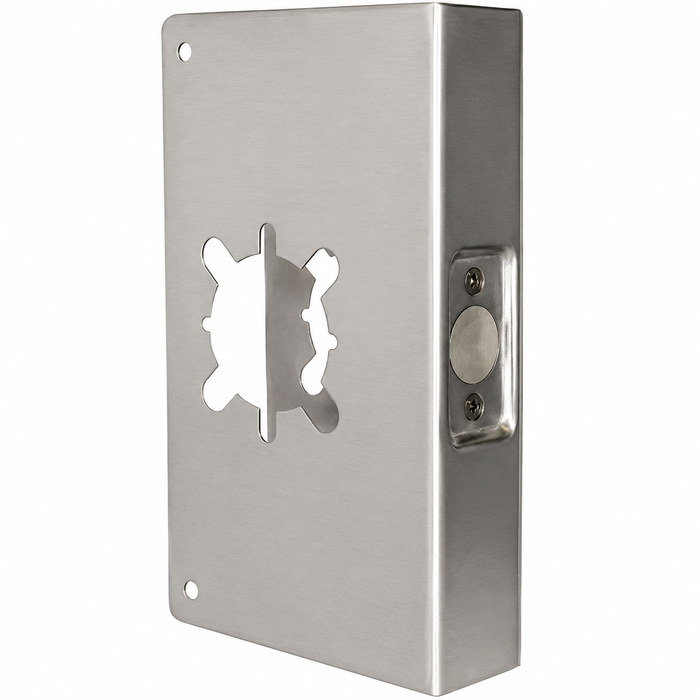

Don-Jo 33A Wrap Around Plate 6-1/2" x 9" for 1-3/4" Doors with 2-3/4" Backset Lockset Conversion

Don-Jo 33A Wrap Around Plate 6-1/2" x 9" for 1-3/4" Doors with 2-3/4" Backset Lockset Conversion

(No reviews yet) Write a Review

Model: 33A-S-2-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$53.90
$43.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 33A Wrap Around Plate 6-1/2" x 9" for 1-3/4" Doors with 2-3/4" Backset Lockset Conversion

The Don-Jo 33A Wrap Around is a commercial-grade door trim accessory designed to convert 3-3/4" backset locksets to Grade 1 and Grade 2 lever compatibility on 1-3/4" doors. Measuring 6-1/2" wide by 9" tall and constructed to a 22-gauge (.032) specification, this wrap around plate provides a clean, professional finish while enabling lever prep upgrades. It features a 2-3/4" backset, hole lever prep, and latch prep indent, making it a reliable solution for commercial door hardware conversion applications.

Key Features

  • Precise Dimensions: Measures 6-1/2" wide by 9" tall, purpose-built for 1-3/4" door thickness applications.
  • Lockset Conversion: Specifically designed for converting 3-3/4" backset locksets to Grade 1 and Grade 2 lever compatibility, expanding upgrade options for existing door hardware.
  • 2-3/4" Backset: Configured with a 2-3/4" backset to align with standard commercial door lockset requirements.
  • 22-Gauge Construction: Built to 22-gauge (.032) specification for durable, long-lasting performance in commercial environments.
  • Hole Lever Prep & Latch Prep Indent: Includes hole lever prep and latch prep indent for straightforward installation and compatibility with lever-style hardware.
  • Multiple Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) finishes to coordinate with existing door hardware aesthetics.
  • Commercial Application: Rated and intended for commercial use, suitable for high-traffic door hardware environments.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 33A?

Don-Jo 33A Wrap Around plates deliver professional-grade reliability with 22-gauge (.032) construction engineered to support Grade 1 and Grade 2 lever conversions on 1-3/4" commercial doors. Designed for demanding commercial applications, the 33A provides a dependable, code-compatible solution for upgrading or adapting existing door lockset configurations with confidence.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
33A 2 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 33A-S-2-CW – Frequently Asked Questions

1) What does a Don-Jo 33A wrap around plate actually do on a door?
The 33A is a sheet metal plate that wraps the lock edge of the door and re-preps the opening. It takes a door already bored for a 3-3/4 inch backset lockset and gives you a 2-3/4 inch backset lever prep, with the lever hole and a latch prep indent already punched. So instead of plugging and re-boring an old door, you cover the existing prep and mount Grade 1 or Grade 2 lever hardware through the plate.
2) My old lockset has a 2-3/8 inch backset, not 3-3/4 inch. Is this the right wrap around?
No. The 33A is cut specifically to cover a 3-3/4 inch backset prep and relocate the lever hole to 2-3/4 inches. A 2-3/8 inch backset door has its bore in a different place, and the existing hole would sit outside what this plate covers. You need a wrap around matched to the backset actually in the door.
3) Will Grade 1 lever hardware mount through this Don-Jo wrap around?
Yes, the 33A is prepped for Grade 1 and Grade 2 lever locksets at a 2-3/4 inch backset. The lever hole and latch indent are already punched, so the lockset goes through the plate the same way it would go through a bare door. You still order the lockset separately with the matching 2-3/4 inch backset.
4) I have twenty apartment doors with old knob locks. Can I standardize them all on levers with these plates?
That is what the 33A is for, as long as every door is 1-3/4 inch and prepped at 3-3/4 inch backset. Doors that share the same prep take the same plate and the same 2-3/4 inch backset lever, so you end up with one lockset part number across the fleet. Walk the openings first and measure the backset on each, since mixed-vintage buildings often have two or three different preps in the same hallway.
5) How much of the door face does the Don-Jo 33A cover?
The plate measures 6-1/2 by 9 inches, so it covers a band across the lock area rather than the full stile height. That 9 inch run is what conceals the old bore and any wear or paint shadow around it, and the 6-1/2 inch dimension is split across both faces by the wrap at the edge. On a narrow lite door, confirm you have flat face to land on beside the glass stop.
6) Is 22-gauge heavy enough for a school or hospital corridor door?
The 33A is 22-gauge (.032) and specified for commercial use. That is a trim-weight plate, not a reinforcing plate. It hides the old prep and carries the lever hardware alignment, but it does not add strength to a weak or chewed-up door edge. If the door edge is torn out or the lock case has pulled through, a wrap around is not the repair, an edge reinforcement or a new door is.
7) What finishes does the Don-Jo 33A wrap around come in, and can I match the rest of my building's hardware?
Four finishes are sold: antique brass (609), satin bronze (612), polished brass (605) and satin stainless (630). Satin stainless 630 is the usual match for commercial lever hardware, and the brass options suit older buildings running polished or antique trim. Match the plate to the lever you are installing rather than to the hinges, since the two sit side by side on the same face.
8) Can I use the Don-Jo 33A to cover an old lock hole without installing new hardware?
No. The 33A has an open lever hole and a latch prep indent in it, so it is a conversion plate, not a blank. If you are decommissioning an opening and want the hole gone, you want a solid filler plate instead.
