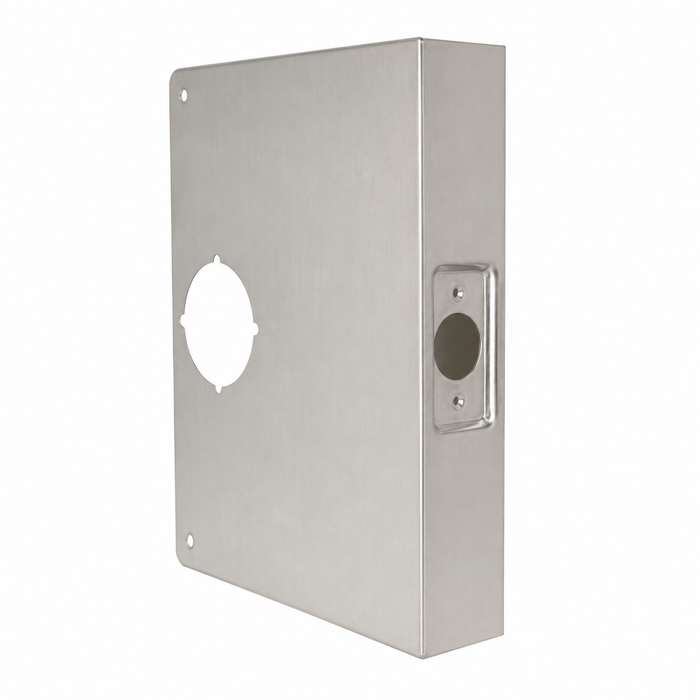

Don-Jo 55A-CW Wrap Around Plate 6-1/2" x 9" for 2-3/4" Backset Conversion on 1-3/4" Doors

Don-Jo 55A-CW Wrap Around Plate 6-1/2" x 9" for 2-3/4" Backset Conversion on 1-3/4" Doors

(No reviews yet) Write a Review

Model: 55A-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.96
$41.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 55A-CW Wrap Around Plate 6-1/2" x 9" for 2-3/4" Backset Conversion on 1-3/4" Doors

The Don-Jo 55A-CW Wrap Around is a commercial-grade door trim accessory engineered to convert 5" backset locksets to 2-3/4" cylindrical locks, making it an essential solution for door hardware upgrades and retrofits. Measuring 6-1/2" wide by 9" tall with a 2-1/8" hole and designed for 1-3/4" door thickness, this wrap around plate provides a clean, professional finish while enabling backset conversion. Constructed from 22-gauge (.032) steel, it delivers reliable durability for demanding commercial applications. Available in multiple finishes to match existing door hardware aesthetics.

Key Features

  • Precise Dimensions: Measures 6-1/2" wide x 9" tall with a 2-1/8" hole, purpose-built for accurate fit and professional installation on commercial doors.
  • Backset Conversion Capability: Specifically designed for converting 5" backset locksets to 2-3/4" cylindrical locks, simplifying hardware upgrades and retrofits.
  • Door Size Compatibility: Engineered for 1-3/4" door thickness, covering the most common commercial door size for broad applicability.
  • 2-3/4" Backset: Accommodates the standard 2-3/4" backset cylindrical lock configuration for seamless integration with existing hardware.
  • Heavy-Duty 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for lasting durability and resistance to wear in high-traffic commercial environments.
  • Latch Prep Indent: Features a latch prep indent for precise alignment and proper fitment during installation.
  • Multiple Finish Options: Available in 10B (613), AB (609), BZ (612), PB (605), and S (630) finishes to coordinate with a wide range of door hardware styles.
  • Commercial-Grade Application: Rated for commercial use, making it suitable for office buildings, schools, healthcare facilities, and other demanding environments.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 55A-CW?

Don-Jo wrap around plates are built to professional commercial standards, with 22-gauge (.032) steel construction that stands up to the rigors of high-traffic door applications. The 55A-CW is engineered to deliver a precise, clean conversion from 5" backset locksets to 2-3/4" cylindrical locks, ensuring reliable performance and a finished appearance on 1-3/4" commercial doors. When dependable hardware compatibility and lasting quality matter, Don-Jo delivers.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
2-1/8"
Product Model:
55A CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 55A-S-CW – Frequently Asked Questions

1) My cylindrical lock has a 2-3/8 inch backset. Is the 55A-CW the right wrap around?
No. The bore in the 55A-CW is positioned for a 2-3/4 inch backset. Fitting a 2-3/8 inch backset lock through it would pull the latch tube out of line with the edge bore and the strike. 2-3/8 and 2-3/4 inches are the two standard cylindrical backsets, so check the measurement from the door edge to the center of the knob hole before ordering.
2) Will the Don-Jo 55A-CW wrap around fit a 1-3/8 inch door?
No. The 55A-CW is formed for 1-3/4 inch thick doors only. A wrap around plate has to match door thickness because it bends over the edge of the door and seats against both faces; on a 1-3/8 inch door it will stand off and the bore will not line up. For a 1-3/8 inch leaf you need a wrap around built for that thickness.
3) What size hole does the Don-Jo 55A-CW wrap around plate have, and will a standard commercial knob or lever go through it?
The bore is 2-1/8 inches, which is the standard cross bore for commercial cylindrical knob and lever sets, so a normal Grade 1 or Grade 2 cylindrical lock passes straight through. The plate also has a latch prep indent so it sits flat against the door edge over the existing latch face.
4) I have damaged and oversized lock holes on a metal commercial door. Should I replace the door or use a wrap around plate?
A wrap around like the 55A-CW is the standard repair when the door is sound but the lock prep is chewed up or the wrong size. It wraps the edge of a 1-3/4 inch door and covers 6-1/2 x 9 inches of face on each side, so old fasteners, screw pulls and the oversized 5 inch backset prep disappear under 22-gauge (.032) steel. Replacing the leaf only makes sense if the door itself is failing.
5) Does the Don-Jo 55A-CW wrap around plate work on a door with a mortise lock?
No. The 55A-CW is cut for a 2-1/8 inch cylindrical bore at a 2-3/4 inch backset. A mortise lock uses a pocket in the door edge with separate cylinder and trim holes, and this plate has no prep for that. Use it when you are going to, or already have, a cylindrical knob or lever set.
6) What finishes does the Don-Jo 55A-CW wrap around come in, and can I match it to my existing door hardware?
Four finishes are stocked: AB antique brass, BZ satin bronze, PB polished brass, and S satin stainless. Satin stainless is the one that matches most commercial 630 lock trim; polished and antique brass suit older brass hardware in multi-tenant and hospitality buildings.
7) Is 22-gauge steel heavy enough for a wrap around on a high traffic entry door?
22-gauge (.032) steel is what Don-Jo builds this commercial wrap around from, and it is the usual weight for face trim that is backed by the door itself rather than carrying load. On a school or office corridor door it takes the knuckle and cart traffic that would otherwise mark the face. Where you want something that also stiffens a badly torn edge, a heavier gauge wrap around is the better call.
