Don-Jo 6 CW Wrap Around Plate 4" x 4-1/2" for Deadbolts with 2-3/8" Backset and 1-3/4" Door

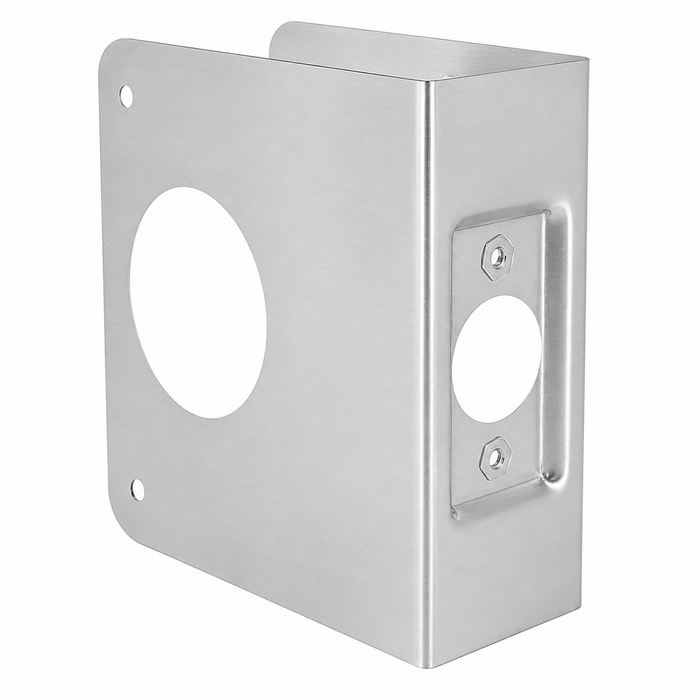

The Don-Jo 6 CW is a commercial-grade wrap around plate measuring 4" wide by 4-1/2" tall, engineered specifically for deadbolt applications requiring a 1-1/2" hole and a 2-3/8" backset on 1-3/4" doors. Constructed from 22-gauge (.032) steel, this wrap around provides a clean, finished appearance while reinforcing the door face around the lock prep area. A latch prep indent is included for precise, professional installation. Available in a range of finishes including 10B (613), AB (609), BZ (612), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: Measures 4" wide by 4-1/2" tall, sized to neatly cover and reinforce the lock prep area on standard commercial doors.
  • Deadbolt Compatibility: Designed specifically for deadbolts with a 1-1/2" hole, ensuring a proper fit with standard deadbolt hardware.
  • 2-3/8" Backset: Factory-set for a 2-3/8" backset to align accurately with standard door prep without field modification.
  • 1-3/4" Door Thickness: Engineered for 1-3/4" door thickness, the most common commercial door specification.
  • 22-Gauge Steel Construction: Formed from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Latch Prep Indent: Includes a latch prep indent for clean, accurate installation and a professional finished look.
  • Multiple Finish Options: Available in five finishes — 10B (613), AB (609), BZ (612), PB (605), and S (630) — to match a wide variety of door hardware styles.
  • Display Package Option: Also available in display packaging; when ordering, replace "CW" with "V" after the item number for the display-packaged version.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities

Why Don-Jo 6 CW?

Don-Jo wrap around plates are built to commercial standards, with 22-gauge (.032) steel construction that delivers reliable durability in high-use door applications. The 6 CW is precisely dimensioned at 4" x 4-1/2" with a latch prep indent and multi-finish availability, making it a dependable choice for contractors and facility managers seeking a professional, code-appropriate finish on deadbolt-prepped commercial doors.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Cross Bore:
1-1/2"
Product Model:
6 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/8"
Department:
Door Hardware

Don-Jo 6-S-CW – Frequently Asked Questions

1) Will the Don-Jo 6 CW wrap around plate fit my deadbolt prep?
Only if the door is bored 1-1/2 inches with a 2-3/8 inch backset. The 6 CW is punched for that exact combination, so it drops over an existing deadbolt prep with no field drilling. If your deadbolt sits on a 2-3/4 inch backset, or the bore is 2-1/8 inches (the usual bore for a lockset rather than a deadbolt), this plate will not line up and you need a different wrap.
2) Does the Don-Jo 6 CW wrap around plate work on a 1-3/8 inch door?
No. The 6 CW is formed for 1-3/4 inch doors, which is the standard commercial thickness. A wrap around has to grip the door face on both sides, so a plate bent for 1-3/4 inch stock will sit loose and rock on a 1-3/8 inch door. For older 1-3/8 inch interior doors you need a wrap sized for that thickness.
3) I have chewed up doors around the deadbolt from a break-in. Will a Don-Jo 6 CW cover the damage?
That is what the plate is for. Measuring 4 inches by 4-1/2 inches, the 6 CW wraps the door face around the deadbolt bore and covers torn or splintered wood, gouges from a pry bar, and old filled holes in the immediate lock area. It reinforces the face at the same time. Damage further out than roughly 2 inches from the bore centerline, or damage to the frame and strike side, is outside what a 4 x 4-1/2 inch plate reaches.
4) What finishes does the Don-Jo 6 CW wrap around come in?
Five: 10B oil rubbed bronze (613), AB antique brass (609), BZ satin bronze (612), PB polished brass (605), and S satin stainless (630). For a building being standardized, 630 satin stainless is the one that matches most commercial lever and deadbolt trim, and 613 matches the dark bronze packages common on multi-family entries.
5) Does the Don-Jo 6 CW wrap around plate have handing, or does one part fit left and right doors?
No handing to specify. The 6 CW is bored on a 2-3/8 inch backset and wraps the door edge, so the same plate serves a left hand or right hand door. You only pick a finish.
6) There is a latch below my deadbolt. Will the 6 CW wrap around clear the latch?
The 6 CW is formed with a latch prep indent, so it clears the latch tongue where it passes over the door edge rather than binding on it. The bore itself is cut for the deadbolt at 1-1/2 inches; the indent handles the edge, not a second bore. If you need the plate to cover a knob or lever bore as well, this is not the part.
7) Is 22-gauge steel heavy enough for a wrap around on a high traffic door?
22-gauge (.032) steel is the standard commercial weight for a wrap around, and it is what the 6 CW is formed from. The plate's job is to spread load across the door face and cover the prep, not to act as a security reinforcer on its own. On an entry taking real abuse, pair it with a proper strike reinforcement on the frame side, since the plate does nothing for the jamb.
8) Do I order anything different if I need the wrap around plate on a retail peg display?
Same plate, different pack. Don-Jo builds the display packaged version by swapping the CW in the item number for a V, so the display version of the 6 CW is ordered as the 6 V. The plate itself is unchanged.
