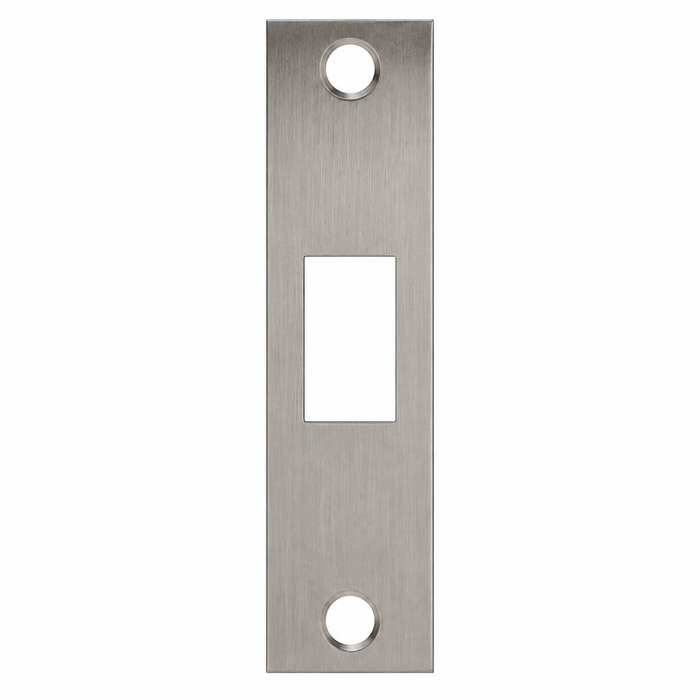

Don-Jo DBS-1478 ANSI Deadbolt Door Strike in Satin Chrome, 4-7/8" x 1-1/4", Single Latch Hole

Don-Jo DBS-1478 ANSI Deadbolt Door Strike in Satin Chrome, 4-7/8" x 1-1/4", Single Latch Hole

(No reviews yet) Write a Review

Model: DBS-1478-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17.60
$15.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo DBS-1478 ANSI Deadbolt Door Strike in Satin Chrome, 4-7/8" x 1-1/4", Single Latch Hole

The Don-Jo DBS-1478 is a commercial-grade ANSI ASA Door Strike engineered specifically for deadbolt applications. Measuring 4-7/8" in height and 1-1/4" in width with a single latch hole, this strike plate is constructed from non-ferrous material at 13 gauge (.095) thickness, delivering the structural integrity required for demanding commercial door hardware installations. Finished in Satin Chrome (630), it provides a clean, professional appearance suited to a wide range of commercial environments.

Key Features

  • Precise ANSI ASA Strike Dimensions: Measures 4-7/8" in height and 1-1/4" in width, conforming to standard ANSI ASA strike specifications for reliable deadbolt compatibility.
  • Single Latch Hole Configuration: Features 1 latch hole designed to accommodate standard deadbolt latch bolt engagement for secure door locking performance.
  • Heavy-Gauge Non-Ferrous Construction: Manufactured from non-ferrous material at 13 gauge (.095) thickness, providing corrosion resistance and long-term durability in commercial applications.
  • Satin Chrome Finish (630): The 630 Satin Chrome finish delivers a refined, low-sheen aesthetic that complements a broad range of commercial door hardware finishes.
  • Commercial-Grade Performance: Rated for commercial use, this ANSI ASA strike is built to withstand the rigors of high-traffic door applications in professional settings.
  • Convenient Shelf Pack Quantity: Available in a shelf pack of 30 units, making it practical for contractors, facility managers, and distributors managing multiple installations.

Technical Specifications

  • Subcategory: Door Strikes
  • Product Group: Parts and Accessories
  • Product Subgroup: Door Strikes and Strike Boxes
  • Product Type: Door Strikes
  • Commercial/Residential: Commercial
  • Product Model: DBS 2478
  • Product Category: Parts and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo DBS-1478?

Don-Jo door strike products are built to professional commercial standards, with the DBS-1478 featuring non-ferrous, 13 gauge (.095) construction that resists corrosion and maintains structural integrity under repeated use. Engineered to ANSI ASA specifications, this strike delivers consistent, dependable deadbolt engagement for commercial door hardware applications where performance and longevity are essential.

Manufacturer Resources

DON-JO Strike Plates

Product Specs

Subcategory:
Door Strikes
Product Group:
Parts and Accessories
Product Subgroup:
Door Strikes and Strike Boxes
Product Type:
Door Strikes
Commercial/Residential:
Commercial
Product Model:
DBS 2478
Door Strike:
ASA Strike
Product Category:
Parts and Accessories
Product Substrate:
Ferrous
Department:
Door Hardware

Don-Jo DBS-1478-626 – Frequently Asked Questions

1) Will the Don-Jo DBS-1478 strike fit a standard ANSI ASA strike prep in a metal frame?
Yes. The DBS-1478 is an ANSI ASA strike measuring 4-7/8 inches by 1-1/4 inches, which is the standard commercial frame prep dimension, so it drops into an existing ASA cutout without modifying the frame. If the frame you are working on is prepped for a T-strike or a smaller residential plate, this is not the part; you want a strike matching that prep instead.
2) The bolt on my double door throws into the inactive leaf, not a frame - can I use a Don-Jo DBS-1478 there?
That opening calls for a different part. The DBS-1478 is an ANSI ASA strike, 4-7/8 inches by 1-1/4 inches with one latch hole, and it is designed for a standard ASA strike prep receiving a deadbolt. For a pair of doors, the Detex 92 Strike Kit in the 90 Strike Series is built as a double door strike and ships with tamper resistant fasteners, which is what a locksmith reaches for when the strike lands on an exposed leaf edge rather than a protected frame rabbet. Use the DBS-1478 where a single door deadbolt engages an ASA-prepped frame.
3) Is the Detex 92 strike kit an equivalent replacement for a Don-Jo DBS-1478 deadbolt strike?
No - they solve different openings. The DBS-1478 is an ANSI ASA strike with a single latch hole, sized 4-7/8 inches by 1-1/4 inches, made to receive a deadbolt bolt in a standard ASA strike prep in a commercial door frame. The Detex 92 Strike Kit is part of the Detex 90 Strike Series and is a double door strike kit supplied with tamper resistant fasteners, intended for a pair of doors served by Detex exit hardware. If the frame is already prepped for a 4-7/8 by 1-1/4 ASA cutout and the bolt is a deadbolt, the DBS-1478 drops into that prep; the Detex 92 kit does not fit an ASA strike cutout and is specified with the exit device, not with the deadbolt.
4) Is the Don-Jo DBS-1478 strike rated for commercial door traffic or is it a residential part?
Commercial. The DBS-1478 is a commercial-grade ASA strike, which is why it comes in the full 4-7/8 inch ASA size rather than the short plates used on residential doors. It is the strike you standardize on across office suites, schools, healthcare corridors, and multi-tenant entries where the deadbolt gets thrown daily.
5) What is the difference between a Trimco 1260P strike and a Don-Jo DBS-1478?
They are strikes for different substrates. The Trimco 1260P is a pipe adapter strike in the 1260 Series, supplied as the strike only, and it is used where the bolt has to land on a round pipe or tubular section rather than a flat frame face. The Don-Jo DBS-1478 is a flat ANSI ASA strike plate, 4-7/8 inches high by 1-1/4 inches wide with a single latch hole, in 13 gauge (.095) material with a Satin Chrome finish, and it mounts to a conventional ASA strike prep. If the deadbolt is throwing into a standard hollow metal or wood frame jamb, the DBS-1478 is the flat plate for that prep; the 1260P is specified when the strike surface is pipe.
6) I need to standardize deadbolt strikes across a facility - which of these can be ordered as one repeatable part?
The Don-Jo DBS-1478 is the one to standardize on for deadbolt openings. It is a commercial ANSI ASA strike at a fixed 4-7/8 inch by 1-1/4 inch size with a single latch hole in Satin Chrome 630, so every ASA-prepped deadbolt opening in the building takes the same part number, and it is packed in a shelf pack of 30 for multi-door rollouts. The Trimco 1260P in the 1260 Series is a pipe adapter strike sold as the strike only, and the Detex 92 Strike Kit in the 90 Strike Series is a double door kit with tamper resistant fasteners - both are opening-specific parts you add only where a pipe frame or a pair of doors requires them, not the base plate for a whole facility.
7) What finish does the Don-Jo DBS-1478 deadbolt strike come in?
Satin chrome, and that is the only finish offered on the DBS-1478. It reads as a low-sheen brushed silver, so it sits alongside satin chrome and satin stainless lever trim on the same opening without looking off. If the rest of your doors are brass or oil rubbed bronze, this strike will not blend in.
8) Can I buy Don-Jo DBS-1478 strikes in bulk for a building-wide deadbolt replacement?
Yes. The DBS-1478 is packed in a shelf pack of 30, which suits a property manager or contractor rekeying and re-striking a run of doors at once rather than buying singles. Every door in the run needs to be prepped to the same 4-7/8 by 1-1/4 inch ASA cutout for the plates to be interchangeable.
