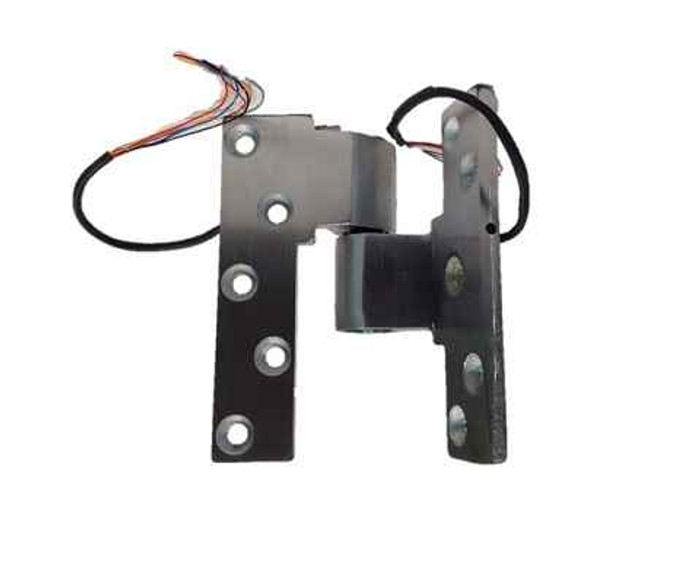

Don-Jo E8WIP34 Electrified Intermediate Pivot 5" x 4-1/4" with 3/4" Offset, Heavy Duty Fire-Rated

Don-Jo E8WIP34 Electrified Intermediate Pivot 5" x 4-1/4" with 3/4" Offset, Heavy Duty Fire-Rated

(No reviews yet) Write a Review

Model: E8WIP34-626-LHR
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$654.76
$575.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo E8WIP34 Electrified Intermediate Pivot 5" x 4-1/4" with 3/4" Offset, Heavy Duty Fire-Rated

The Don-Jo E8WIP34 is a heavy-duty electrified intermediate pivot designed for demanding commercial door applications requiring both access control integration and fire-rated performance. Measuring 5" x 4-1/4" with a 3/4" offset and 5/16" thickness, this offset-hung pivot is constructed from non-ferrous material and supports door weights of up to 600 lbs. Rated for 3-hour fire applications and compliant with ANSI CO7321, the E8WIP34 delivers reliable electrified pivot performance where code compliance and durability are paramount.

Key Features

  • Generous Pivot Dimensions: 5" width x 4-1/4" height x 5/16" thickness provides a robust mounting footprint suited for heavy commercial doors.
  • 3/4" Pivot Offset: Offset-hung design with a precise 3/4" offset accommodates proper door clearance and alignment in commercial frame applications.
  • Heavy-Duty Load Capacity: Engineered to support door weights of up to 600 lbs, making it ideal for large, heavy commercial door assemblies.
  • 3-Hour Fire Rating: Certified for 3-hour fire-rated door assemblies, ensuring compliance with life-safety and building code requirements.
  • Electrified Design: Integrated electrified functionality enables seamless connection to access control systems for secure, managed entry points.
  • Non-Ferrous Construction: Built from non-ferrous material for corrosion resistance and long-term durability in commercial environments.
  • Complete Fastener Package: Includes 8 wood screws and 8 machine screws for versatile installation across wood and metal door and frame configurations.
  • Available Finishes: Offered in finishes 613 and 626 to complement a variety of commercial door hardware specifications.

Certifications & Compliance

  • ANSI CO7321 Compliant
  • 3-Hour Fire Rated
  • Commercial Grade — Heavy Duty
  • Electrified & Fire-Rated Application Certified

Technical Specifications

  • Subcategory: Door Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Type: Electrified Pivots
  • Commercial/Residential: Commercial
  • Electronic: Yes
  • Hang Type: Offset Hung
  • Duty Level: Heavy Duty
  • Fire Rated Time: 3 hours
  • Door Weight: Up to 600 lbs
  • Pivot Type: Intermediate
  • Application: Electrified, Fire-Rated
  • Product Attribute: Pivots
  • Product Model: E8WIP 34 LHR
  • Fire Rating: Yes
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings with Access Control Systems
  • Healthcare Facilities Requiring Fire-Rated Door Assemblies
  • Educational Institutions with Secured Entry Points
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities with Heavy Door Assemblies
  • Retail Establishments with Electrified Access Management
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo E8WIP34?

Don-Jo E8WIP34 electrified pivots are engineered for the most demanding commercial environments, combining non-ferrous construction with a 600 lb load capacity and a 3-hour fire rating to meet rigorous life-safety and access control requirements. ANSI CO7321 compliance and a complete fastener package ensure straightforward integration into both new construction and retrofit projects. When reliability, fire-rated performance, and electrified functionality must coexist in a single pivot, the Don-Jo E8WIP34 is the professional-grade solution.

Manufacturer Resources

DON-JO Door Pivots

Product Specs

Subcategory:
Door Pivots
Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Electrified Pivots
Commercial/Residential:
Commercial
Electronic:
Yes
Hang Type:
Offset Hung
Pivot Offset:
3/4"
Type of Pivot:
Electrified
Duty Level:
Heavy Duty
Fire Rated Time:
3 hours
Door Weight:
Up to 600 lbs
Pivot Type:
Intermediate
Mounting Method:
Offset
Application:
Electrified, Fire-Rated
Product Attribute:
Pivots
Product Model:
E8WIP 34 LHR
Fire Rating:
Yes
Product Category:
Door Hinges and Pivots
Product Substrate:
Non-Ferrous
Department:
Door Hardware

Don-Jo E8WIP34-626-LHR – Frequently Asked Questions

1) Does the Don-Jo E8WIP34 electrified pivot come in right hand? I need it for a right-hand reverse door.
No. The E8WIP34 is built Left Hand Reverse only, in both finishes offered (613 satin bronze oil-rubbed and 626 satin chrome). The model designation itself reads E8WIP 34 LHR. Pivots are handed and non-reversible, so an LHR pivot will not serve a right hand or right hand reverse opening. Confirm the door's hand at the opening before ordering.
2) How heavy a door will a Don-Jo E8WIP34 intermediate pivot carry?
Up to 600 lbs. That covers most heavy commercial door assemblies, including thick fire doors and wide-leaf entrances. It is rated heavy duty and intended for commercial openings, not residential interior doors.
3) Is this pivot for a center-hung door or an offset-hung door?
Offset hung, with a 3/4 inch offset. That means the pivot point sits 3/4 inch off the door edge rather than on the door's centerline. If your frame and floor closer are prepped for center hung, this is the wrong pivot type. Offset and center hung preps are not interchangeable.
4) What does an intermediate pivot do, and do I still need top and bottom pivots?
An intermediate pivot is a mid-height support, not a complete hanging set. It carries part of the door's weight between the top pivot and the bottom pivot or floor closer, and on heavy or tall doors you may use more than one. You still need the top and bottom pivot hardware for the opening. The E8WIP34 is specifically the intermediate.
5) Why would I pick an electrified pivot instead of running an electric hinge or a door loop?
On an offset-hung door there is often no butt hinge to electrify, so the power transfer has to go through the pivot. The E8WIP34 is the electrified intermediate for exactly that case, passing power through the pivot point to feed electric strikes, electrified locks or exit device trim on access-controlled openings. It keeps the wiring concealed rather than exposed in a surface door cord.
6) What size is the Don-Jo E8WIP34 pivot plate and how thick is it?
It measures 5 x 4-1/4 x 5/16 inches, with a 3/4 inch offset. Check that against the mortise already cut in your door edge and frame rabbet if you are replacing an existing pivot, since the plate footprint has to match or the prep needs reworking.
7) Do I need to buy separate screws for a Don-Jo E8WIP34 pivot, and does it work on both wood and hollow metal?
Fasteners are included: 8 wood screws and 8 machine screws, so you can mount to a wood door or frame or to hollow metal without sourcing hardware separately. You will still need to supply the wiring connection to your access control power source.
8) Will this pivot corrode in a humid or coastal building?
The E8WIP34 is made from non-ferrous material, so it resists rust in damp or coastal environments better than a plated steel pivot. That matters on garage entries, pool doors and exterior openings where a ferrous pivot streaks the frame.
9) Which finish should I order to match the rest of my door hardware?
Two finishes are made: 613, satin bronze oil-rubbed, and 626, satin chrome. 626 is the common commercial match for satin chrome locksets, closers and exit devices; 613 suits dark bronze packages. Both are LHR handing only.
