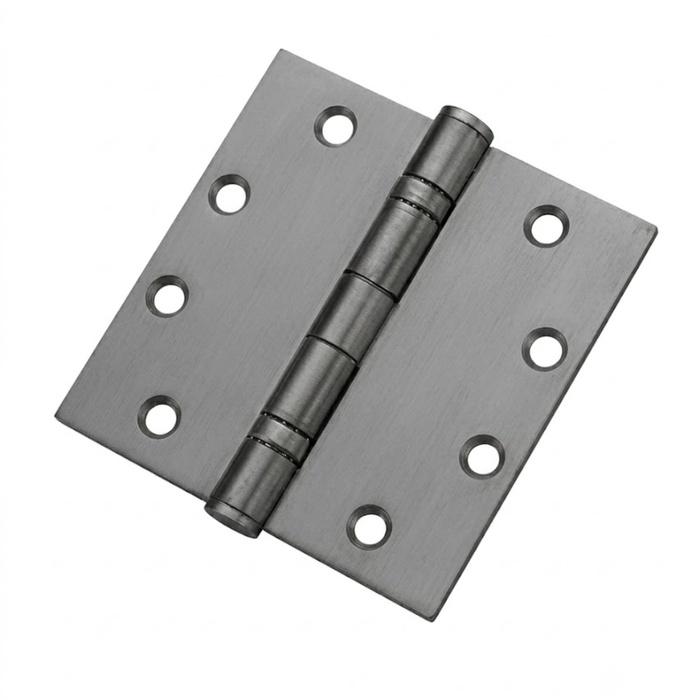

Don-Jo HWBB95045 Heavy Weight Full Mortise Ball Bearing Hinge 5" x 4-1/2" Stainless Steel with NRP

Don-Jo HWBB95045 Heavy Weight Full Mortise Ball Bearing Hinge 5" x 4-1/2" Stainless Steel with NRP

(No reviews yet) Write a Review

Model: HWBB95045-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$173.66
$152.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo HWBB95045 Heavy Weight Full Mortise Ball Bearing Hinge 5" x 4-1/2" in Satin Stainless Steel

The Don-Jo HWBB95045 is a heavy weight full mortise ball bearing hinge engineered for demanding commercial door applications. Measuring 5" x 4-1/2" with a 0.19 gauge stainless steel construction and a satin stainless (630) finish, this hinge is purpose-built for heavy doors requiring high-frequency performance. Compliant with ANSI A5111, it features a 5-knuckle design with square corners and comes standard with non-removable pins (NRP) for enhanced security.

Key Features

  • Heavy Weight Construction: Engineered specifically for heavy doors, providing the structural integrity required in high-traffic commercial environments.
  • Precision Dimensions: 5" x 4-1/2" hinge size with 0.19 gauge stainless steel material ensures a robust, durable fit for full mortise door applications.
  • Ball Bearing Design: Ball bearing mechanism delivers smooth, consistent operation and is rated for high-frequency use, reducing wear over extended service life.
  • Non-Removable Pins (NRP) Standard: All heavy duty hinges include non-removable pins as standard, providing added tamper resistance and security on commercial doors.
  • 5-Knuckle Configuration: Five-knuckle design distributes load evenly across the hinge for superior strength and long-term performance.
  • Square Corner Style: Square corner profile ensures compatibility with standard full mortise door and frame preparations for straightforward installation.
  • Premium Stainless Steel Material: Constructed from stainless steel with a satin stainless (630) finish, offering excellent corrosion resistance and a professional aesthetic suited to commercial settings.
  • Convenient Shelf Pack: Available in shelf packs of 24, making procurement and inventory management efficient for contractors and facility managers.

Certifications & Compliance

  • ANSI A5111 Compliant
  • Commercial Grade

Technical Specifications

  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Full Mortise Hinges
  • Commercial/Residential: Commercial
  • Bearing Type: Ball Bearing
  • Corner Style: Square corners
  • Knuckles: 5
  • Product Size: 5" x 4.5"
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo HWBB95045?

Don-Jo HWBB95045 heavy weight hinges are built to perform in the most demanding commercial door applications, combining 0.19 gauge stainless steel construction with a ball bearing mechanism rated for high-frequency operation. The standard inclusion of non-removable pins (NRP) and ANSI A5111 compliance reflect Don-Jo's commitment to security and professional-grade reliability where consistent, long-term performance is essential.

Manufacturer Resources

DON-JO Hinges

Product Specs

Subcategory:
Hinges
Product Group:
Door Hinges and Pivots
Product Subgroup:
Full Mortise Hinges
Product Type:
Full Mortise Hinges
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Bearing Type:
Ball Bearing
Corner Style:
Square corners
Knuckles:
5
Product Model:
HWBB95045
Product Size:
5" x 4.5"
Product Category:
Door Hinges and Pivots
Product Substrate:
Steel
Department:
Door Hardware

Don-Jo HWBB95045-630 – Frequently Asked Questions

1) Will a 5 inch x 4-1/2 inch hinge fit my existing door and frame prep?
The Don-Jo HWBB95045 measures 5" x 4-1/2" with square corners, so it drops into a standard full mortise prep cut for a 5 inch hinge with square-cornered pockets. If your doors and frames are prepped for the more common 4-1/2 x 4-1/2 size, or the pockets have radius corners, this is the wrong hinge for that opening. The 5 inch height is normally specified for heavier or thicker commercial doors.
2) Do I need to order non-removable pins separately for security on an outswing door?
No. NRP is standard on the HWBB95045, so the pin cannot be driven out once the door is closed. That is what you want on an exterior outswing door where the barrel is exposed on the outside face.
3) Is a ball bearing hinge worth it over a plain bearing hinge for a high-traffic door?
On a door that cycles constantly, yes. The HWBB95045 uses a ball bearing barrel, which carries the load on bearings rather than metal-on-metal knuckles, so it stays smooth and does not sag or squeal as fast under frequent use. Plain bearing hinges like the Hager 1279 or Hager 1260 are fine on low-cycle interior openings, but for a main entrance, stairwell, or a door with a closer on it, the ball bearing version is what gets specified.
4) What does heavy weight mean, and do I actually need it on my door?
Heavy weight refers to the leaf thickness, 0.19 gauge here, versus the thinner standard weight leaf. You specify heavy weight for thick or oversized doors, doors with heavy glass or lead lining, and high-frequency openings where a standard hinge would deform. On a light interior office door a standard weight hinge such as the McKinney TCA2314 is enough; the HWBB95045 is for the heavy end of the range.
5) Can the Don-Jo HWBB95045 carry power to an electrified lock on the door?
No. The HWBB95045 is a mechanical heavy duty ball bearing full mortise hinge with non-removable pins and no wiring provision. For transferring power through the hinge, the ACSI 5BB1 is a 5 knuckle ball bearing full mortise hinge, 4-1/2 inch by 4-1/2 inch, with concealed electric through-wire in a 4 wire 28 gauge configuration.
6) What should I use instead of the Don-Jo HWBB95045 if the door has to swing clear of the frame for wheelchair access?
The HWBB95045 is a conventional full mortise hinge and keeps the door within the opening when open. For an opening that needs the door to clear the frame, the BEST CB248 is a steel full mortise concealed bearing swing clear hinge for square edge doors, and the Hager 1260 is a full mortise swing clear hinge with a 5 knuckle plain bearing design.
7) Does the Don-Jo HWBB95045 work on a beveled edge door, or do I need a different hinge?
The HWBB95045 has square corners, which suits standard square edge full mortise door and frame preparation. For a beveled edge door, the BEST CB223 is a stainless steel concealed bearing heavy weight pivot reinforced hinge for beveled edge doors; for a square edge door needing pivot reinforcement, the BEST FBB212 is a steel ball bearing pivot reinforced hinge for square edge doors.
8) Will stainless steel hinges hold up in a pool room, kitchen, or coastal exterior door?
Stainless construction with a satin stainless 630 finish is the right choice for wet, humid, or salt-air openings where plated steel hinges rust at the knuckles. Don-Jo offers the HWBB95045 in that satin stainless finish only, so there is no finish decision to make when ordering.
9) What is the closest heavy weight ball bearing alternative if the Don-Jo 5 x 4-1/2 is not the right size?
For a heavy weight full mortise hinge in a 4-1/2 x 4-1/2 square corner size, the McKinney TCA3386 is the direct counterpart. If the door needs to clear trim or swing back past an obstruction, the Hager WTBB1168 is a heavy weight ball bearing wide throw hinge at 4-1/2" x 6". Both are heavy weight; pick on the size your frame is prepped for.
10) Does the HWBB95045 meet the ANSI hinge template called out on my drawings?
It is built to ANSI A5111. If the hardware schedule specifies A5111 heavy weight full mortise, this hinge matches that line. It is a commercial grade product, five knuckle, square corner.
11) I am standardizing hinges across a building. Does this hinge work for both left and right hand doors?
Yes. A five knuckle full mortise butt hinge is non-handed, so the same HWBB95045 goes on left hand and right hand openings, interior or exterior. That makes it straightforward to stock one part number across a portfolio. It is sold in shelf packs of 24.
12) I have a lighter interior door that does not need a heavy weight hinge - what is a lighter alternative to the Don-Jo HWBB95045?
The HWBB95045 is rated heavy duty and uses a ball bearing mechanism. For lighter interior openings, the McKinney TCA2314 and TCA2317 are standard duty square corner 5 knuckle full mortise hinges in 4-1/2 inch by 4-1/2 inch, and the BEST 1900R is a medium duty steel full mortise concealed bearing standard weight hinge with a removable pin.
13) For standardizing heavy weight hinges across a facility, which comparable options match the Don-Jo HWBB95045 duty level?
The Don-Jo HWBB95045 is a heavy duty full mortise ball bearing hinge in stainless steel with square corners and five knuckles. Other heavy weight full mortise options include the McKinney TCA3386, the Dormakaba Stanley Security CB199 concealed bearing heavy weight hinge, and the Hager WTBB1168 heavy weight ball bearing wide throw hinge. Concealed bearing models such as the CB199 differ from an exposed ball bearing knuckle in appearance.
14) The Don-Jo HWBB95045 comes with non-removable pins - which comparable heavy weight hinge does not?
The Don-Jo HWBB95045 is supplied with non-removable pins as standard for tamper resistance on outswinging commercial doors. If a removable pin is wanted instead, the BEST 1900R is a steel full mortise concealed bearing standard weight hinge with a removable pin, and the Stanley Security CB1960R is a standard weight full mortise concealed bearing hinge.
15) Is a plain bearing hinge like the Hager 1279 a substitute for the Don-Jo HWBB95045?
They are different bearing types. The Don-Jo HWBB95045 is a heavy duty ball bearing hinge rated for high frequency commercial use. The Hager 1279 is a medium duty full mortise plain bearing commercial hinge with 5 knuckles, and the Hager 1541 is a full mortise plain bearing residential hinge in stainless steel with a 5 knuckle design. Match bearing type and duty level to the traffic on the opening.
16) How does the Don-Jo compare to a concealed bearing hinge like the BEST CB199 or CB223?
Both are heavy weight full mortise, but the bearings sit differently. The HWBB95045 uses visible ball bearings between the knuckles. The Dormakaba/Stanley CB199 and BEST CB223 are concealed bearing designs, where the bearing is hidden inside the barrel for a cleaner look, and the CB223 is specifically for beveled edge doors. If your doors are square edge and appearance of the barrel is not a concern, the ball bearing Don-Jo covers the same duty level.
